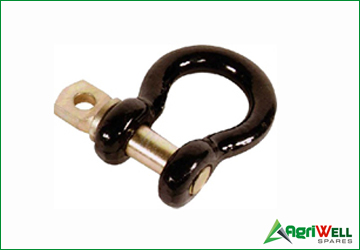

FARM CLEVISES
Precision agricultural component
FARM CLEVISES
Manufactured for reliable performance across agricultural and industrial applications. Contact AgriWell for drawings, quantities, finishes and OEM requirements.
Discuss this product →Technical specifications
Product specifications

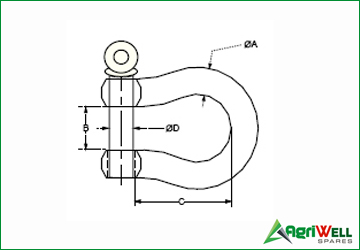

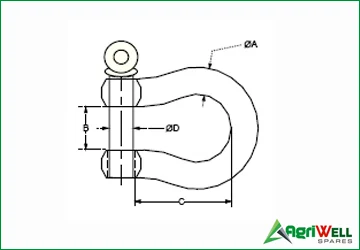

| AgriWellPart No. | ReferenceNumber | Popular Code | Body Dia ØA (Inches) | Clevis Opening B (Inches) | Usable Length C (Inches) | Pin Dia ØD (Inches) | Working Load Limit (lbs.) | Package Qty. | Weight (lbs.) |
|---|---|---|---|---|---|---|---|---|---|
| AWFMCS9580 | 87299580 | CL490401 | 1/4" | 15/32" | 1-1/8" | 5/16" | 1,000 | 1 | 0.10 |
| AWFMCS9581 | 87299581 | CL490402 | 5/16" | 17/32" | 1-1/4" | 3/8" | 2,000 | 1 | 0.20 |
| AWFMCS9582 | 87299582 | CL490403 | 3/8" | 23/32" | 1-7/16" | 7/16" | 3,000 | 1 | 0.30 |
| AWFMCS9583 | 87299583 | CL490404 | 7/16" | 3/4" | 1-11/16" | 1/2" | 4,000 | 1 | 0.50 |
| AWFMCS9584 | 87299584 | CL490405 | 1/2" | 13/16" | 1-15/16" | 5/8" | 6,500 | 1 | 0.70 |
| AWFMCS9585 | 87299585 | CL490406 | 5/8" | 1-1/16" | 2-1/2" | 3/4" | 9,000 | 1 | 1.50 |
| AWFMCS9586 | 87299586 | CL490407 | 3/4" | 1-1/4" | 3" | 7/8" | 13,000 | 1 | 2.20 |
| AWFMCS9587 | 87299587 | CL490408 | 7/8" | 1-7/16" | 3-1/4" | 1" | 15,000 | 1 | 3.50 |
| AWFMCS9588 | 87299588 | CL490409 | 1" | 1-11/16" | 3-3/4" | 1-1/8" | 17,000 | 1 | 5.20 |
| AWFMCS9589 | 87299589 | CL490410 | 1-1/8" | 1-13/16" | 4-1/4" | 1-1/4" | 24,000 | 1 | 7.00 |
| AWFMCS9590 | 87299590 | CL490411 | 1-1/4" | 2" | 4-1/2" | 1-3/8" | 28,000 | 1 | 9.50 |
