WELD ON ENDS

Current product rangeEuropean Products Range

Precision agricultural component

WELD ON ENDS

Manufactured for reliable performance across agricultural and industrial applications. Contact AgriWell for drawings, quantities, finishes and OEM requirements.

Discuss this product →

Technical specifications

Product specifications

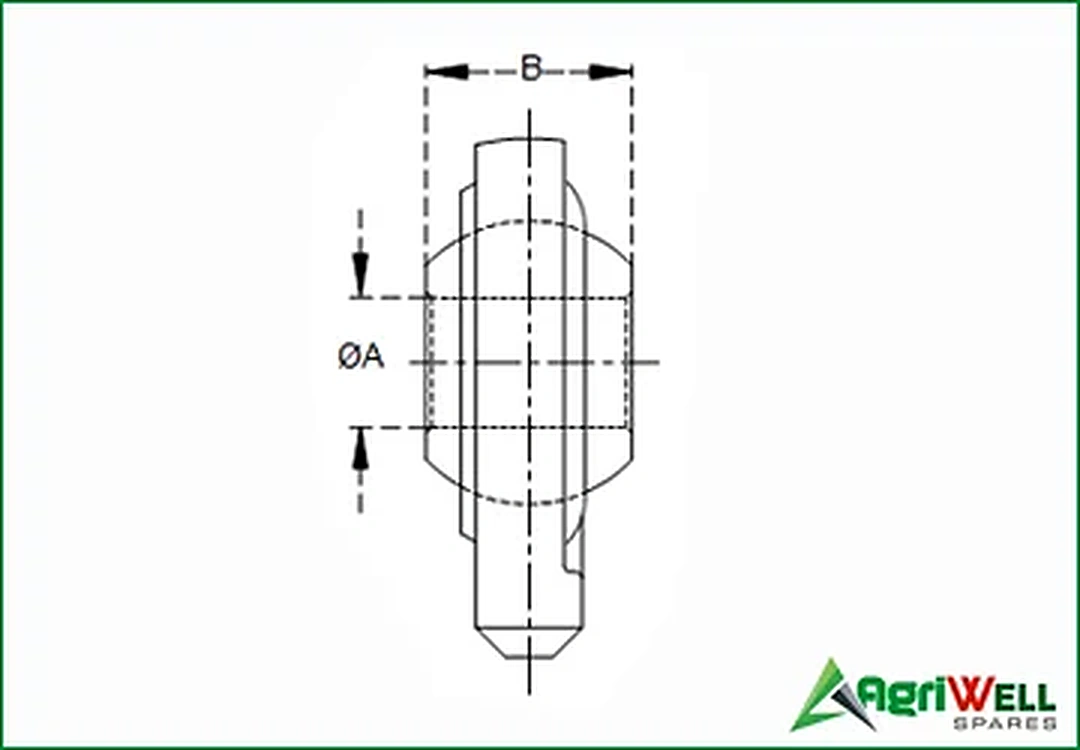

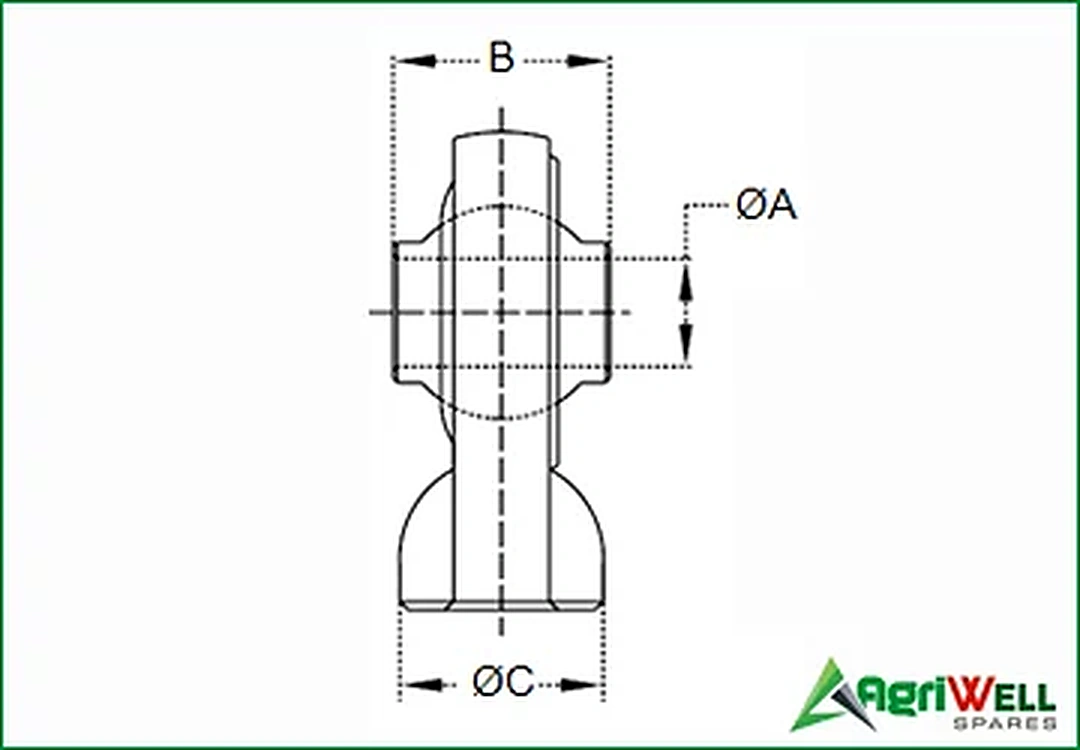

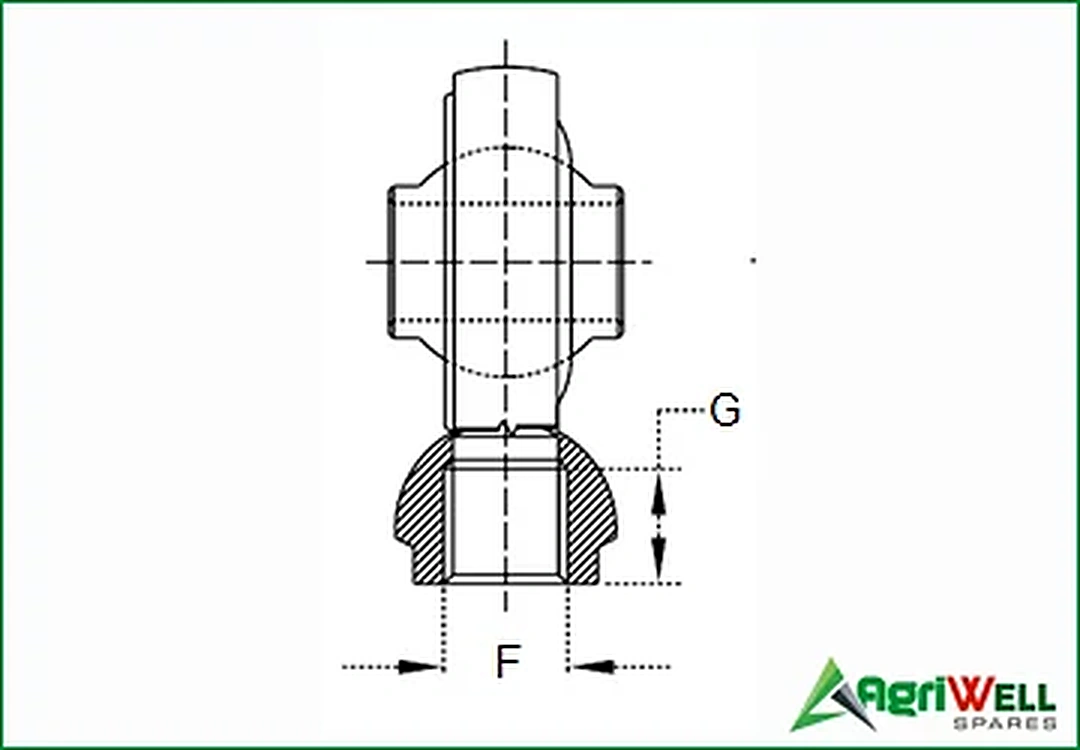

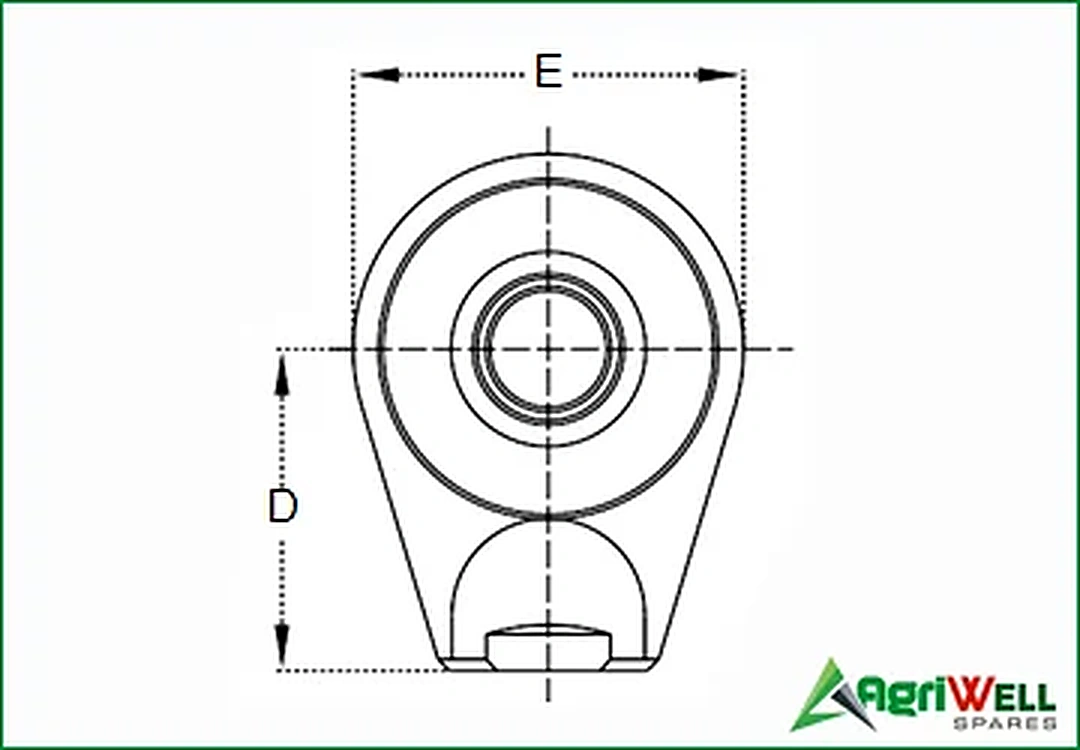

Part Number	Dia. ØA (mm)	Dim. B (mm)	Dia. ØC (mm)	Dim. D (mm)	Dim. E (mm)	Dim. F (mm)	Dim. G (mm)	Ref. Number
TWOE-621936	19.5	44	30X14	36	62	-	-	00006
TWOE-621960	19.5	44	Ø 34	60	62	-	-	00007
TWOE-622060	20	44	Ø 34	60	62	-	-	01957
TWOE-752263	22.5	51	Ø 38	63	75	-	-	01956
TWOE-752565	25.4	51	Ø 38	65	75	-	-	00008
TWOE-852570	25.4	51	Ø 48	70	85	-	-	01958
TWOE-85257027	25.4	51	Ø 48	70	85	27X2	25	01988
TWOE-833065	30	55	Ø 50	65	83	-	-	00396
TWOE-53194830	19	30	Ø 25	48	53	-	-	03810
TWOE-53194844	19	44	Ø 25	48	53	-	-	03811
TWOE-903285	32	51	Ø 38	85	90	-	-	03812
TWOE-832565	25.4	51	Ø 50	65	83	-	-	03813
TWOE-803070	30	51	Ø 50	70	80	-	-	03814
TWOE-80307027	30	51	Ø 50	70	80	27X2	27	03815
TWOE-832965	29	55	Ø 50	65	83	-	-	03816
TWOE-833565	35	55	Ø 50	65	83	-	-	03817
TWOE-1084085	40	75	Ø 60	85	108	-	-	03818
TWOE-108408538	40	75	Ø 60	85	108	38X2	28	03819
TWOE-1084585	45	75	Ø 60	85	108	-	-	03820
TWOE-108458538	45	75	Ø 60	85	108	38X2	28	03821
TWOE-1085085	50	75	Ø 60	85	108	-	-	03863
TWOE-108508538	50	75	Ø 60	85	108	38X2	28	03864
TWOE-1405087	50	100	Ø 75	87	140	-	-	03865

Swipe horizontally to view all specifications →

Technical specifications

Product specifications 2

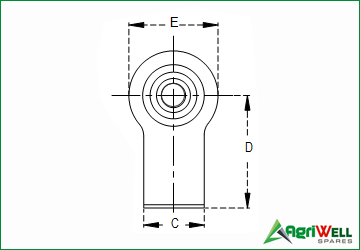

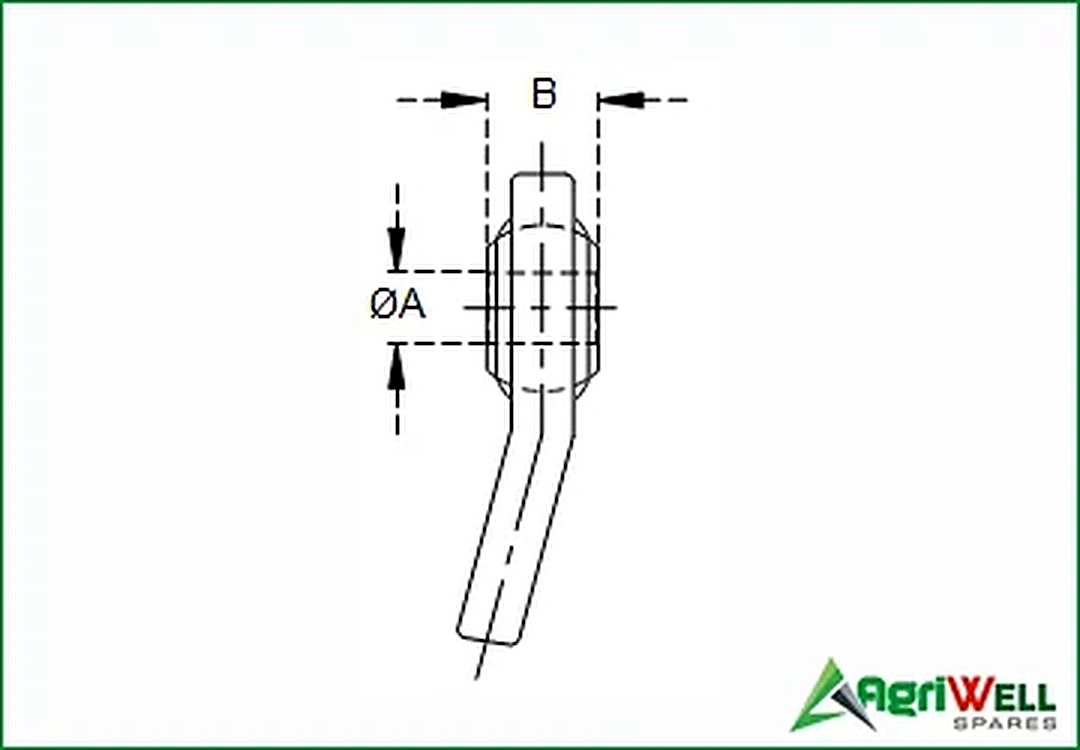

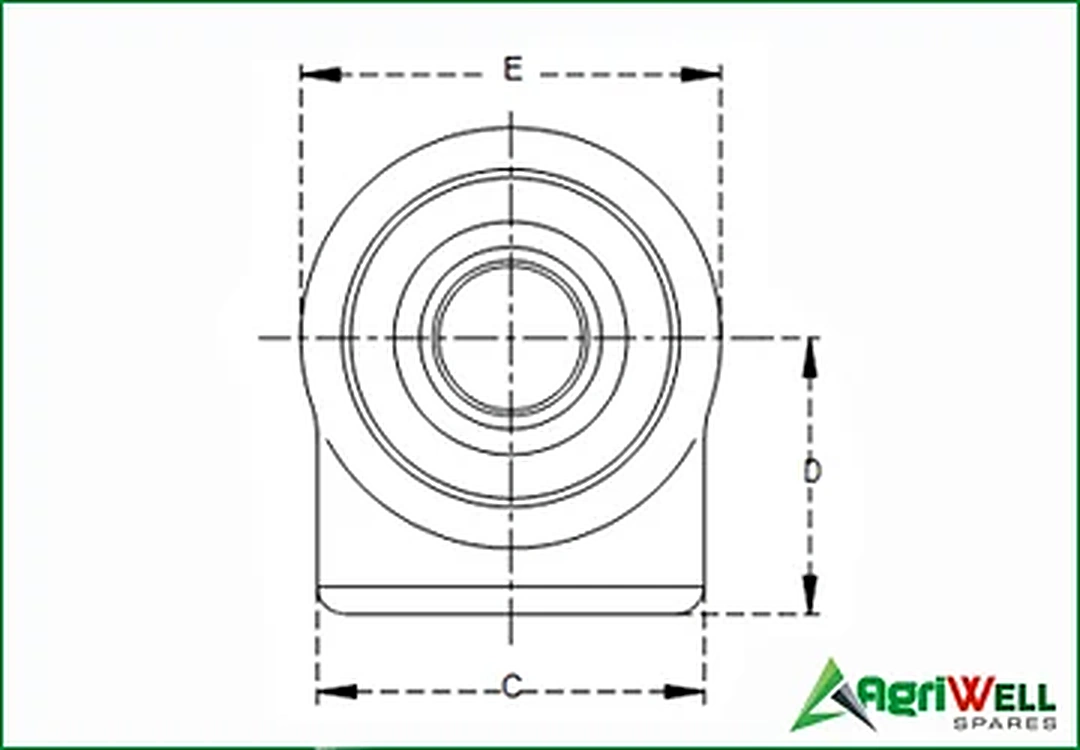

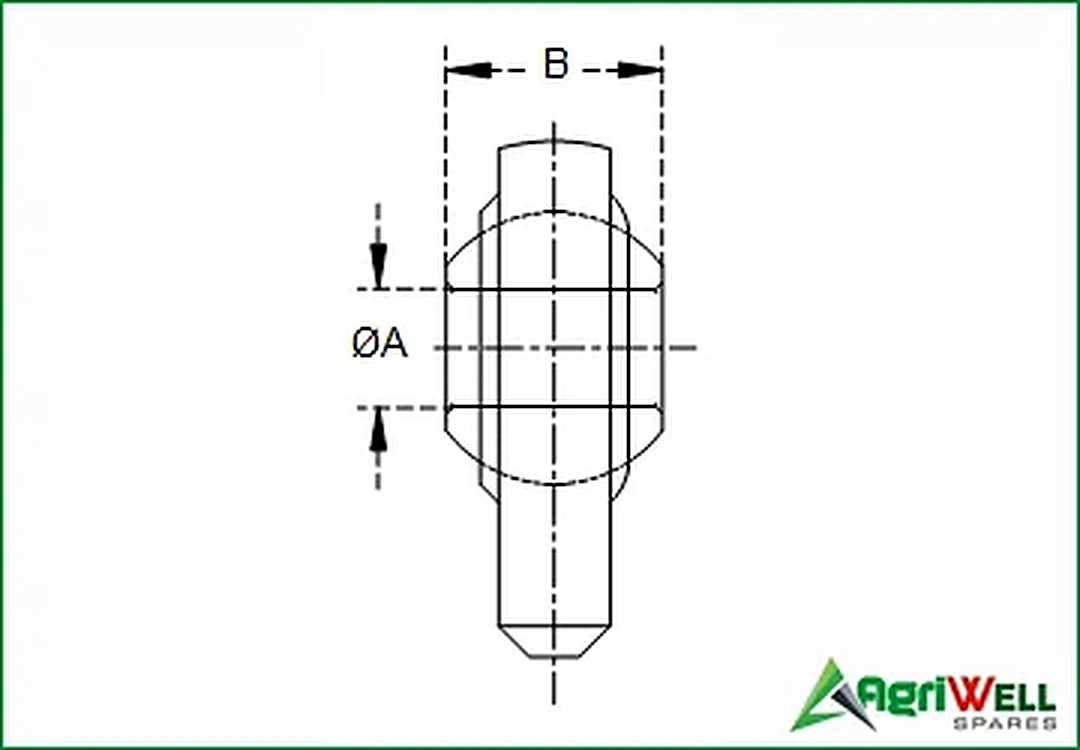

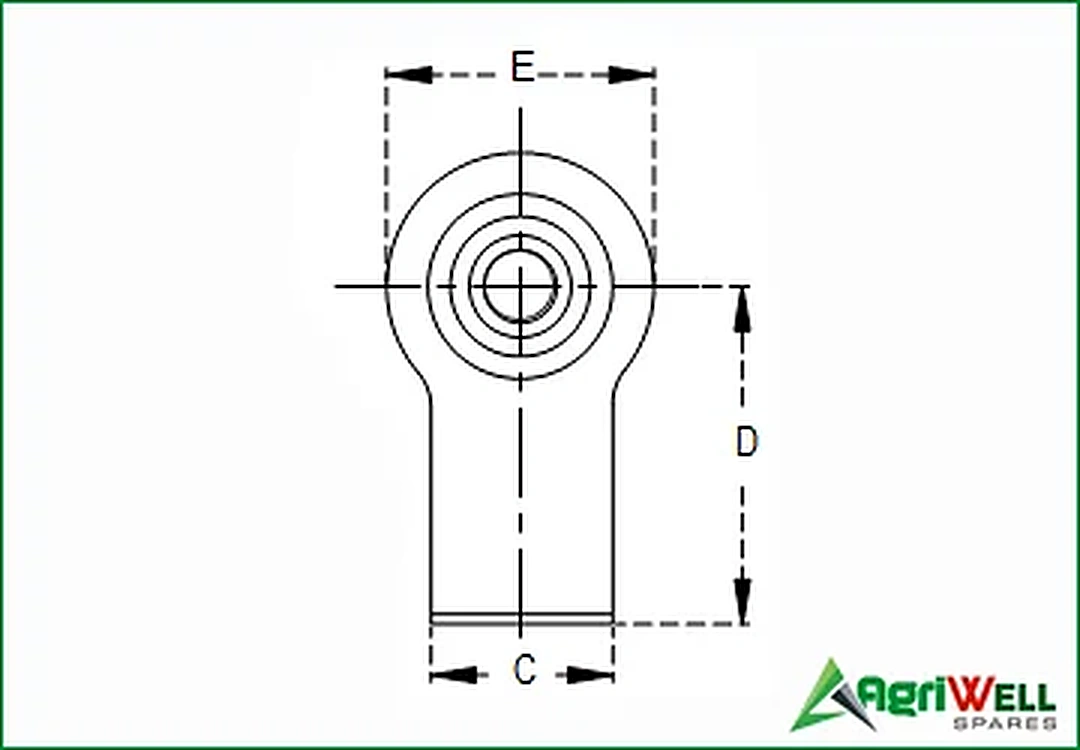

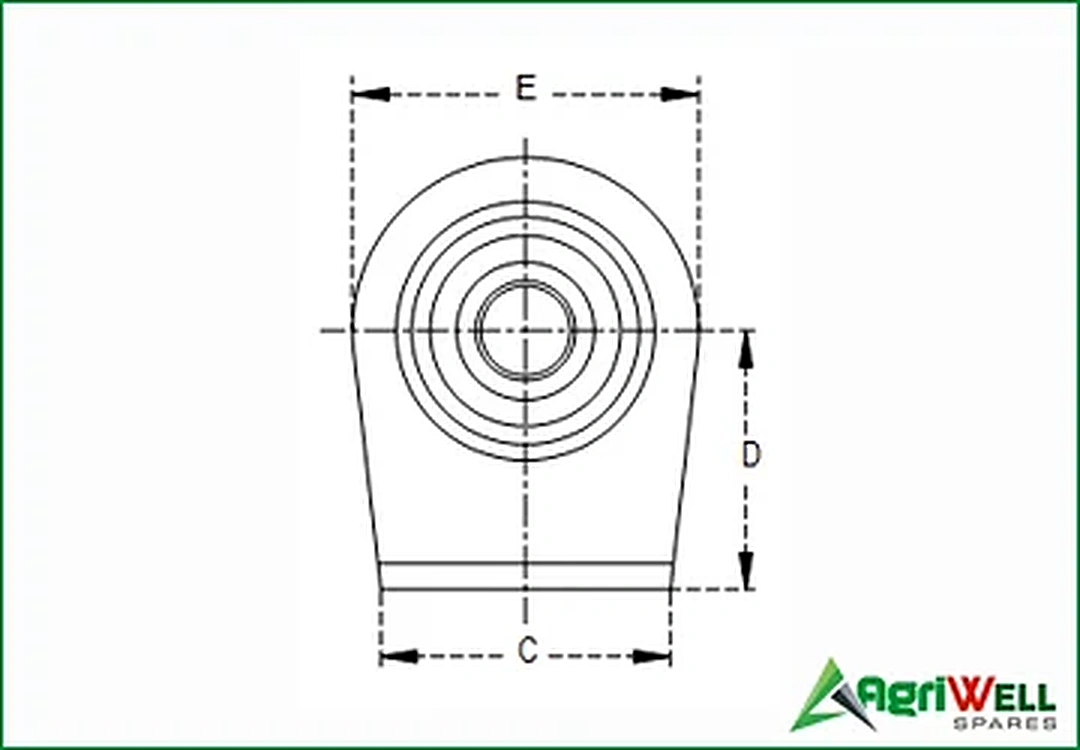

Part Number	Cat	Dia. ØA (mm)	Dim. B (mm)	Dim. C (mm)	Dim. D (mm)	Dim. E (mm)	Ref. Number
WOEL-461460	-	14.2	32	30	60	46	03795
WOEL-461628	-	16.2	20	30	28	46
WOEL-461660	-	16.2	20	30	60	46	03796
WOEL-521950	1	19	44	52	50	52
WOEL-651940	1	19.3	35	50	40	65	04545
WOEL-652245	1	22.1	35	50	45	65	03797
WOEL-662270	1	22.1	35	55	70	66
WOEL-762250	1	22.1	35	70	50	76	03798
WOEL-832255	1	22.1	35	70	55	83	03799
WOEL-802265	1 , 2	22.1 , 28.4	45	70	65	80	00244
WOEL-782540	1	25.4	48	70	40	78
WOEL-762544	1	25.4	50	70	44	76
WOEL-83255535	1	25.4	35	70	55	83	08024
WOEL-782580	1	25.4	38	70	80	78
WOEL-83255551	1	25.4	51	70	55	83
WOEL-762650	1	26.2	35	70	50	76	00194
WOEL-762850	2	28.4	35	70	50	76	00196
WOEL-802865	2	28.4	45	70	65	80	00249
WOEL-962865	2	28.4	45	70	65	96	00982
WOEL-832855	2	28.4	35	70	55	83	03800
WOEL-762844	2	28.4	50	70	44	76
WOEL-1082865	2	28.4	45	80	65	108
WOEL-802880	2	28.4	45	70	80	80	03801
WOEL-803065	2	30.2	45	70	65	80	12480
WOEL-963465	-	34.2	45	70	65	96	00198
WOEL-1083565	-	35.1	45	80	65	108	03803
WOEL-1083765	-	37.4	45	80	65	108	03804
WOEL-1083865	3	38.4	45	80	65	108	01022

Swipe horizontally to view all specifications →

Technical specifications

Product specifications 3

Part Number	Cat	Dia. ØA (mm)	Dim. B (mm)	Dim. C (mm)	Dim. D (mm)	Dim. E (mm)	Ref. Number
WOEL-461660	-	16.2	20	30	60	46
WOEL-671950	1	19.3	35	56	50	67	04546
WOEL-672250	1	22.1	35	56	50	67	00190
WOEL-672270	1	22.1	35	60	70	67
WOEL-672275	1	22.1	35	58	75	67	03805
WOEL-672250	1	22.1	35	60	50	67
WOEL-682290	1	22.1	35	50	90	68
WOEL-762250	1	22.1	35	70	50	76
WOEL-802265	1	22 , 28	35 , 45	70	65	80
WOEL-802280	1 , 2	22.1 , 28.4	45	70	80	80	04549
WOEL-762550	1	25.4	35	70	50	76
WOEL-832579	1	25.4	35	70	79	83
WOEL-762850	2	28.4	35	70	50	76
WOEL-802565	2	28.4	42	70	65	80
WOEL-832879	2	28.4	44.5	70	79	83
WOEL-802880	2	28.4	44.5	70	80	80
WOEL-852880	2	28.4	45	70	80	85
WOEL-822855	2	28.4	45	70	55	82
WOEL-962865	2	28.4	45	70	65	96
WOEL-902875	2	28.4	45	85	75	90
WOEL-1102880	2	28.4	45	100	80	110
WOEL-1083765	-	37	45	80	65	108

Swipe horizontally to view all specifications →

Technical specifications

Product specifications 4

Part Number	Cat.	Dia. ØA (mm)	Dim. (mm)	B Dim. (mm)	C Dim. (mm)	D Dim. (mm)	E Ref. Number
WOEL-6622101	1	22.2	34.9	46	101.6	66.7	S-15306
WOEL-7928101	2	28.6	44.5	46	101.6	79.4	S-15307
WOEL-8028110	2	28.4	45	70	110	80	03802

Swipe horizontally to view all specifications →

Technical specifications

Product specifications 5

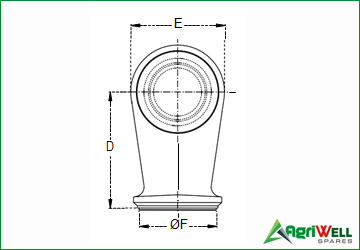

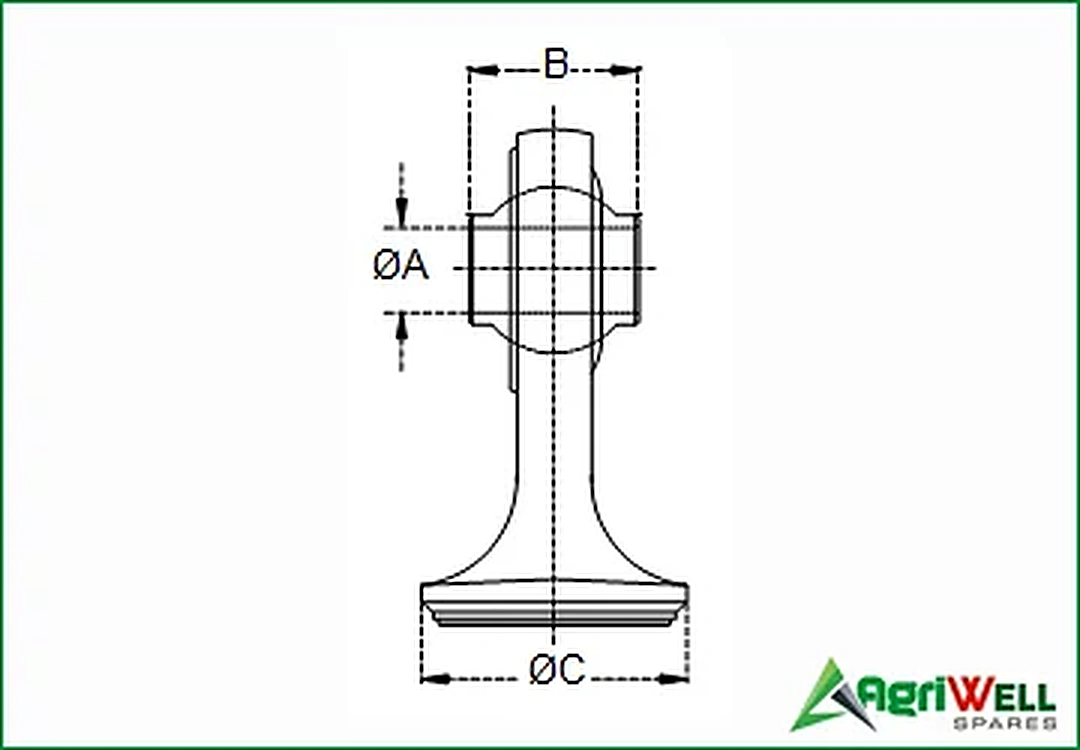

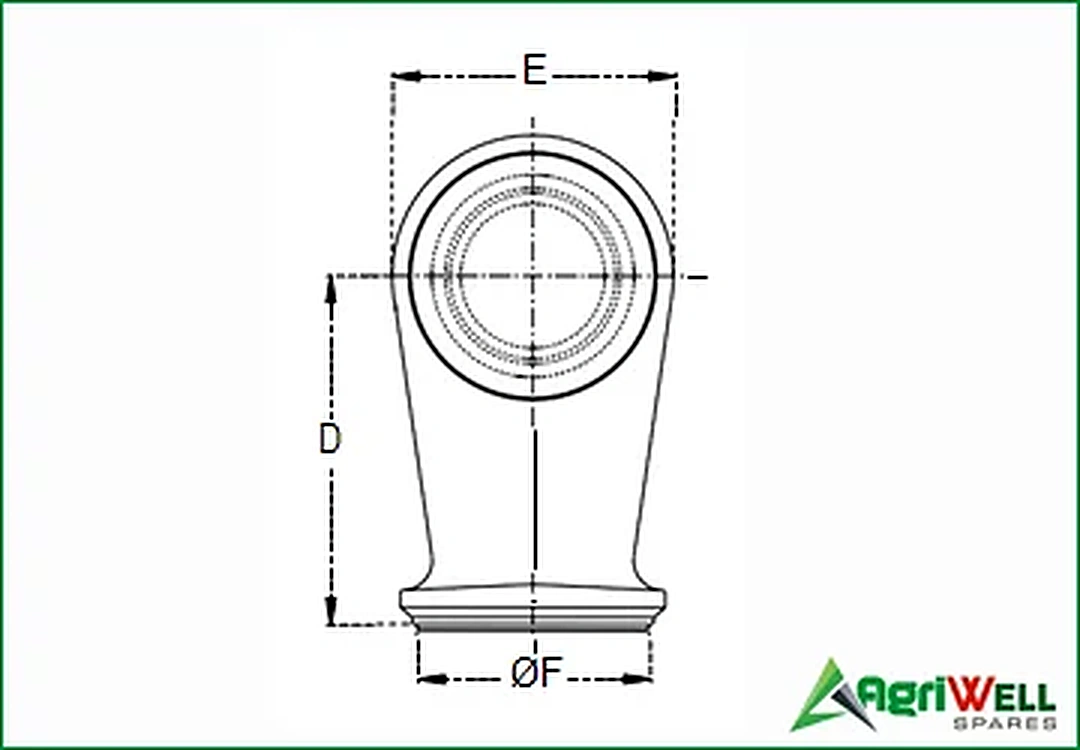

Part Number	Dia. ØA (mm)	Dim. B (mm)	Dia. ØC (mm)	Dim. D (mm)	Dim. E (mm)	Dia. ØF (mm)	Ref. Number
WOE-HC852510560	25.4	51	70	105	85	60	0SRFO6025
WOE-HC852510563	25.4	51	73	105	85	63	0SRFO6325
WOE-HC852510570	25.4	51	80	105	85	70	0SRFO7025
WOE-HC852510880	25.4	51	95	108	85	80	0SRFO8025
WOE-HC853210880	32.1	51	95	108	85	80	0SRFO8032

Swipe horizontally to view all specifications →

Technical specifications

Product specifications 6

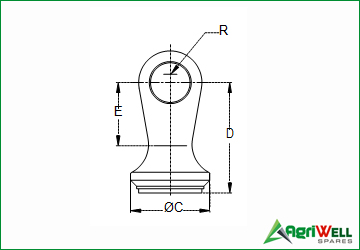

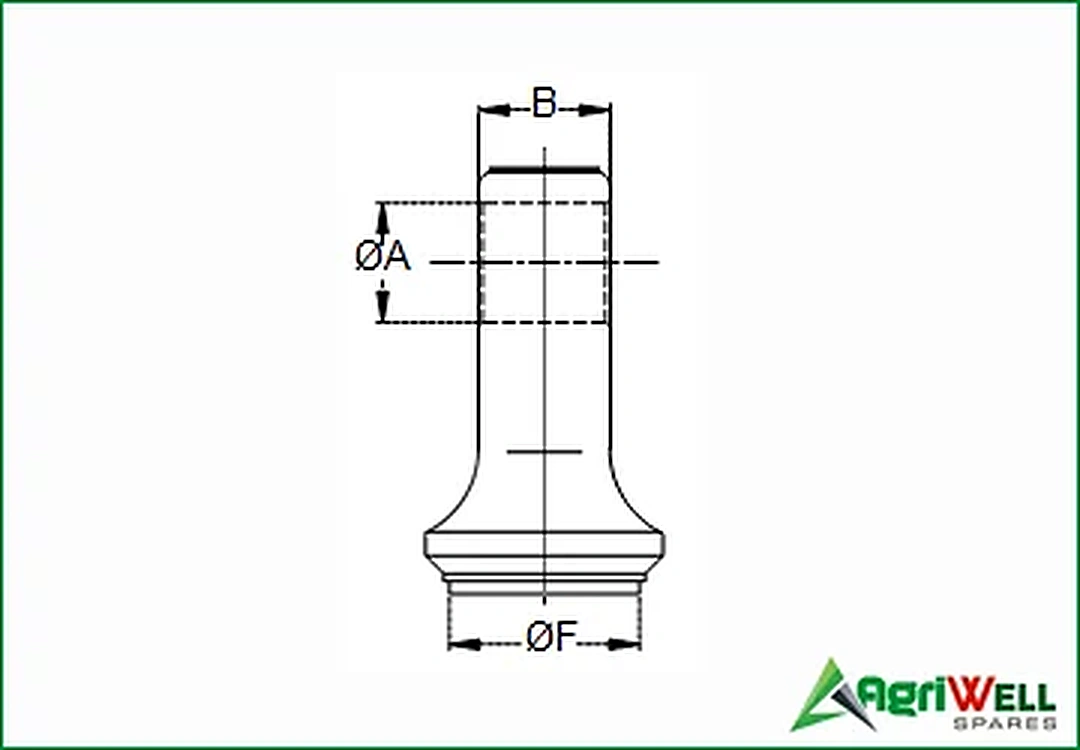

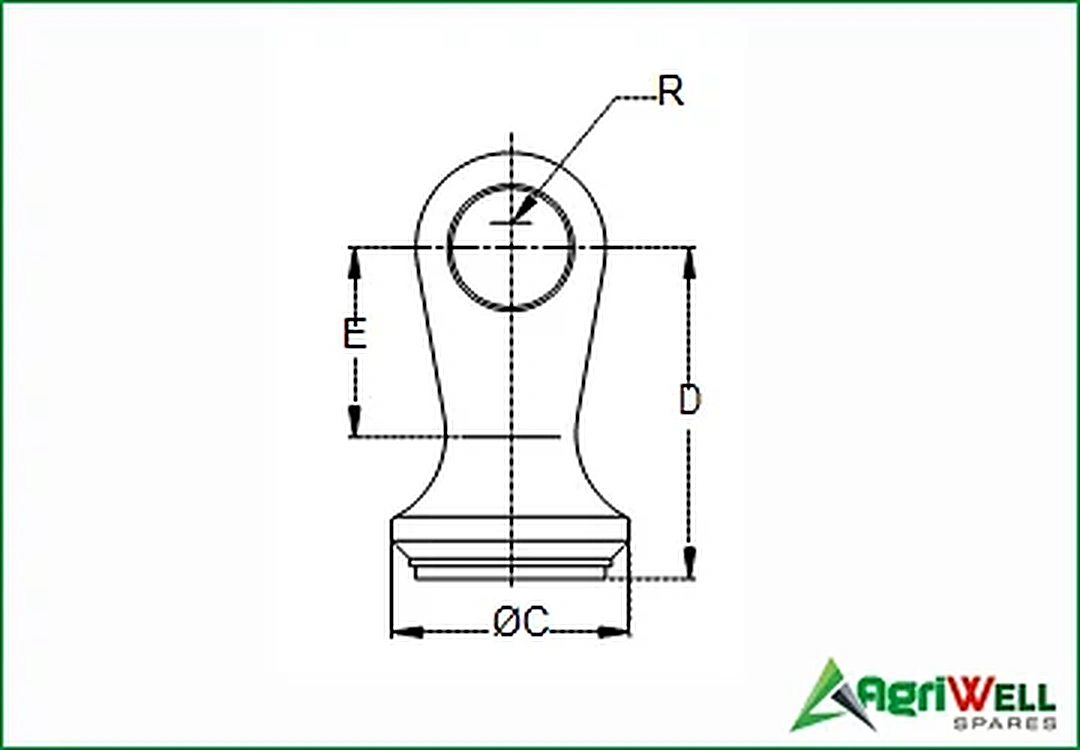

Part Number	Dia. ØA (mm)	Dim. B (mm)	Dia.ØC (mm)	Dim. D (mm)	Dim.E (mm)	Dia.ØF (mm)	Dim. R (mm)	Ref. Number
WOE-HC27203063	20.2	27	73	67.5	30	63	21	0FS63W
WOE-HC39284570	28.2	39	80	90	45	70	25	0FS70W
WOE-HC39284590	28.2	39	105	92.5	45	90	25	0FS90W

Swipe horizontally to view all specifications →
