DRAW BAR / SWINGING DRAW BAR
Precision agricultural component
DRAW BAR / SWINGING DRAW BAR
Manufactured for reliable performance across agricultural and industrial applications. Contact AgriWell for drawings, quantities, finishes and OEM requirements.
Discuss this product →Technical specifications
Product specifications

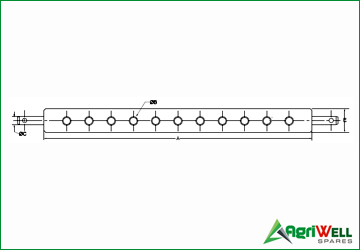

| AgriWellPart No. | ReferenceNumber | Popular Code | Cat. | No. Of Holes | Lift Arm Spacing A (Inches) | Hole Dia ØB (Inches) | Pin Dia ØC (Inches) | Thichness D (Inches) | Width E (Inches) | Color | Package Qty. | Weight (lbs.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

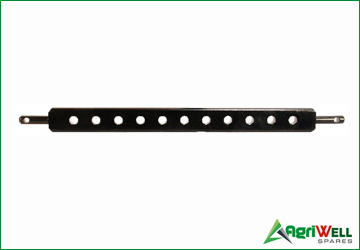

| AWDB9225 | - | DB418 | 0 | 7 | 20" | 5/8” | 5/8" | 5/8” | 2” | Red | 1 | 6.8 |
| AWDB9226 | 87299226 | DB419 | 0/1 | 7 | 20" | 3/4" | 7/8" | 1" | 2-1/2" | Black | 1 | 13.5 |
| AWDB9227 | 87299227 | DB411 | 1 | 11 | 26" | 3/4" | 7/8" | 1" | 2-1/2" | Blue | 1 | 16.4 |
| AWDB9228 | 87299228 | B500236 | 1 | 11 | 26" | 3/4" | 7/8" | 1" | 2-1/2" | Black | 1 | 16.4 |
| AWDB9232 | 87299232 | DB421 | 2 | 11 | 26" | 3/4" | 1-1/8" | 1-1/4" | 3" | Blue | 1 | 27 |
| AWDB9233 | 87299233 | B500237 | 2 | 11 | 26" | 3/4" | 1-1/8" | 1-1/4" | 3" | Black | 1 | 27 |
| AWDB9236 | 87299236 | DB422 | 2 | 13 | 32" | 3/4" | 1-1/8" | 1-1/4" | 3" | Blue | 1 | 33 |
| AWDB9237 | 87299237 | DB4212 | 2 | 13 | 32" | 3/4" | 1-1/8" | 1-1/4" | 3" | Black | 1 | 33 |
| AWDB9239 | 87299239 | DB431 | 3 | 5 | 38" | 1-1/4" | 1-7/16" | 1-3/4" | 3-1/2" | Black | 1 | 65 |

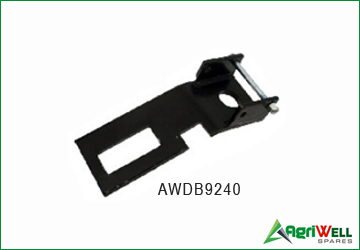

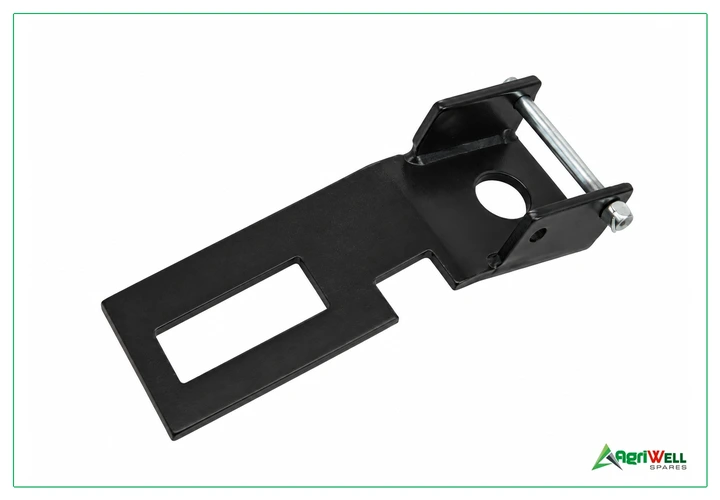

| AWDB9240 | 87299240 | DB4130 | 1 | Drawbar lock | Black | 1 | 4 | |||||

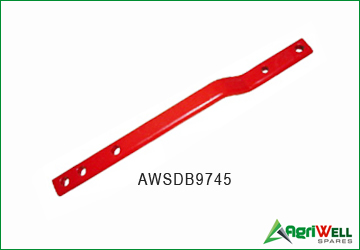

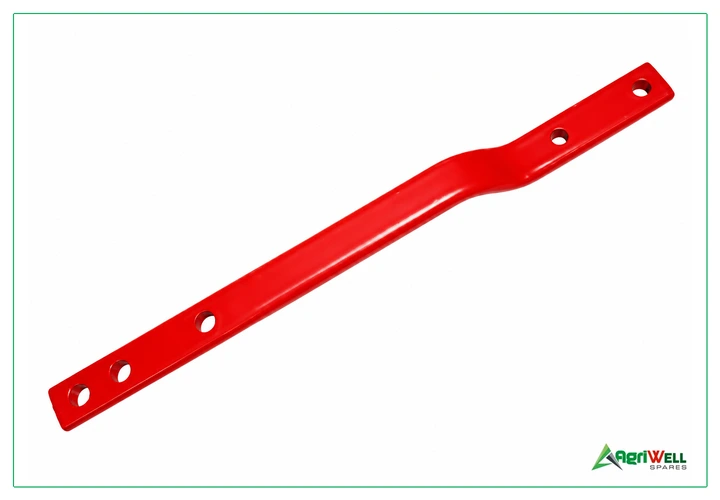

| AWSDB9745 | 87299745 | SD921 | Swinging drawbar, fits Ford 2N, 8N, 9N, NAA, 630, 631, 640, 641, 650,651, 660 and 661, Ferguson TO20, TP030, Massey Ferguson 35 and 50, 30" overall length, 3/4" first hitch pin hole, 5/8" second hitch pin hole. | Black | 1 | 16 |
