TOP LINK ASSEMBLY
Precision agricultural component
TOP LINK ASSEMBLY
Manufactured for reliable performance across agricultural and industrial applications. Contact AgriWell for drawings, quantities, finishes and OEM requirements.
Discuss this product →Technical specifications
Product specifications

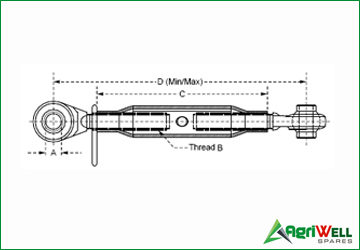

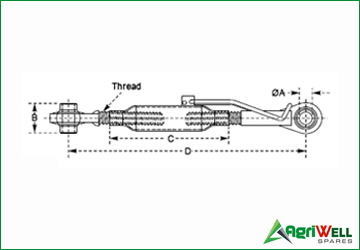

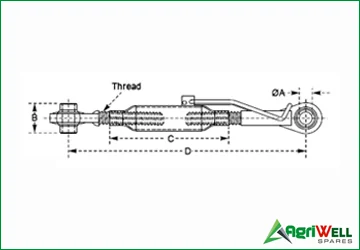

| Agriwell | Popular | Ball ID | Ball Length | Thread | Pipe Length | Open Length-Min | Open Length-Min |
|---|---|---|---|---|---|---|---|
| Part No. | Code | ØA (mm) | B (mm) | (inches) | C (mm) | D (mm) | D (mm) |
| AWSJD-11832012 | S-4261 | 20 , 25.40 | 44 , 51 | 1-1/8" UNC | 320 | 550 | 760 |
Swipe horizontally to view all specifications →
Technical specifications
Product specifications 2

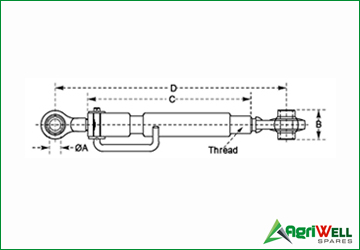

| AgriWellPart No. | Popular Code | Cat. | Ball ID ØA (mm) | Ball Length B (mm) | Thread (inches) | Pipe Length C (mm) | Open Length-Min D (mm) | Open Length-Min D (mm) |
|---|---|---|---|---|---|---|---|---|
| AWSFD-11442511 | S-11878 | 1 | 19.05 | 44 | 1-1/4" UNC | 425 | 622 | 794 |
| AWSFD-11442512 | S-3630 | 1 , 2 | 19.05 , 25.40 | 44 , 51 | 1-1/4" UNC | 425 | 622 | 794 |
| AWSFD-11442522 | S-3631 | 2 | 25.4 | 51 | 1-1/4" UNC | 425 | 622 | 794 |
| AWSFD-11448522 | - | 2 | 25.4 | 51 | 1-1/4" UNC | 485 | 685 | 857 |
Swipe horizontally to view all specifications →
Technical specifications
Product specifications 3

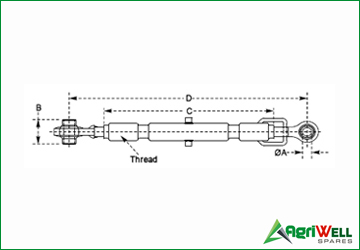

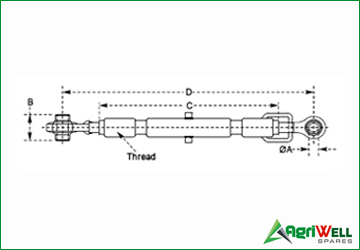

| AgriWellPart No. | Popular Code | Cat. | Ball ID ØA (mm) | Ball Length B (mm) | Thread (inches) | Pipe Length C (mm) | Open Length-Min D (mm) | Open Length-Min D (mm) |
|---|---|---|---|---|---|---|---|---|
| AWSMF-111643811 | S-584 | 1 | 19.05 | 44 | 1-1/16"UNF | 438 | 590 | 750 |
| AWSMF-111647611 | S-585 | 1 | 19.05 | 44 | 1-1/16"UNF | 476 | 610 | 770 |
| AWSMF-111654611 | S-586 | 1 | 19.05 | 44 | 1-1/16"UNF | 546 | 670 | 830 |
| AWSMF-111654622 | S-587 | 2 | 25.4 | 51 | 1-1/16"UNF | 546 | 670 | 830 |
| AWSMF-111654612 | S-588 | 1 , 2 | 19.05 , 25.40 | 44 , 51 | 1-1/16"UNF | 546 | 670 | 830 |
| AWSMF-111647612 | S-589 | 1 , 2 | 19.05 , 25.40 | 44 , 51 | 1-1/16"UNF | 476 | 610 | 770 |
| AWSMF-111647622 | S-16066 | 2 | 25.4 | 51 | 1-1/16"UNF | 476 | 610 | 770 |
| AWSMF-111643812 | S-16521 | 1 , 2 | 19.05 , 25.40 | 44 , 51 | 1-1/16"UNF | 438 | 590 | 750 |
| AWSMF-111643822 | S-16522 | 2 | 25.4 | 51 | 1-1/16"UNF | 438 | 590 | 750 |
Swipe horizontally to view all specifications →
Technical specifications
Product specifications 4
| AgriWellPart No. | Popular Code | Cat. | Ball ID ØA (mm) | Ball Length B (mm) | Thread (inches) | Pipe Length C (mm) | Open Length-Min D (mm) | Open Length-Min D (mm) |
|---|---|---|---|---|---|---|---|---|
| AWS-11452722 | S-15347 | 2 | 25.4 | 51 | 1-/14"UNC | 527 | 680 | 870 |
Swipe horizontally to view all specifications →
