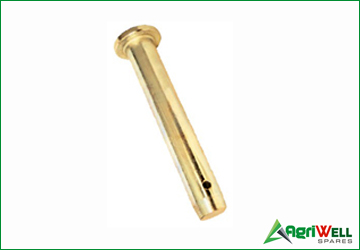

HITCH PIN
Precision agricultural component
HITCH PIN
Manufactured for reliable performance across agricultural and industrial applications. Contact AgriWell for drawings, quantities, finishes and OEM requirements.
Discuss this product →Technical specifications
Product specifications

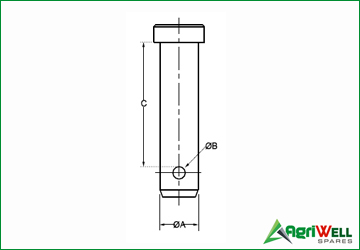

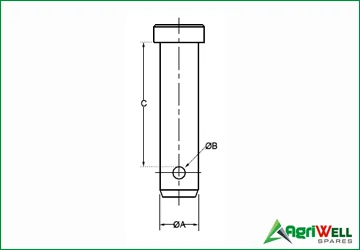

| AgriWellPart No. | ReferenceNumber | Popular Code | Pin Dia ØA (Inches) | Usable Length B (Inches) | Overall length C (Inches) | Package Qty. | Weight (lbs.) |
|---|---|---|---|---|---|---|---|
| AWHP9720 | 87299720 | P7100 | 1/2" | 5" | 6-3/8" | 1 | 0.4 |
| AWHP9721 | 87299721 | P7101 | 5/8" | 5" | 6-3/8" | 1 | 0.6 |
| AWHP9722 | 87299722 | P7102 | 3/4" | 5" | 6-3/8" | 1 | 0.8 |
| AWHP9723 | 87299723 | P7103 | 7/8" | 5" | 6-3/8" | 1 | 1.0 |
| AWHP9724 | 87299724 | P7104 | 1" | 5" | 6-3/8" | 1 | 1.4 |
| AWHP9725 | 87299725 | P7105 | 1-1/8" | 5" | 6-3/8" | 1 | 1.7 |
