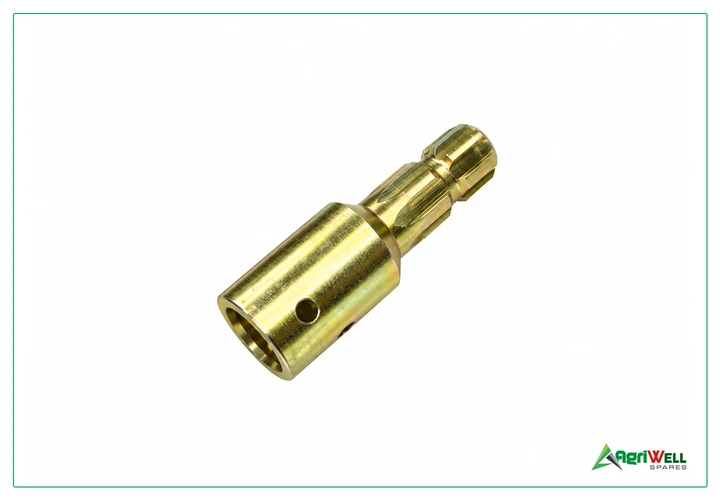

PTO ADAPTERS & ACCESSORIES
Precision agricultural component
PTO ADAPTERS & ACCESSORIES
Manufactured for reliable performance across agricultural and industrial applications. Contact AgriWell for drawings, quantities, finishes and OEM requirements.
Discuss this product →Technical specifications
Product specifications
| AgriWellPart No. | Popular Code | Description | Male Spline | Female Spline | Extends PTO | Overall Length | Max H.P. | Weight (lbs.) |
|---|---|---|---|---|---|---|---|---|

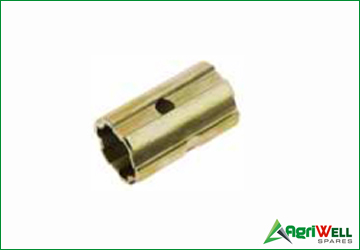

| AWPTO1660 | SP1660 | Sleeve increaser; Ford 231082 | 1-3/8” x 6 | 1-1/8” x 6 | 0 | 2” | 75 | 0.2 |
| AWPTO1662 | SP1662 | Sleeve increaser; all tractors except Ford | 1-3/8” x 6 | 1-1/8” x 6 | 0 | 2-1/4” | 75 | 0.2 |
| AWPTO1663 | SP1663 | PTO spline adapter; converts 21 spline 1000 RPM to 6 spline 540 RPM | 1-3/8” x 6 | 1-3/8” x 21 | 3-1/4” | 5-7/8” | 75 | 2.0 |
| AWPTO1664 | SP1664 | Universal reducer | 1-1/8” x 6 | 1-3/8” x 6 | 3-5/16” | 5-1/8” | 75 | 1.4 |
| AWPTO1665 | SP1665 | PTO increaser | 1-3/8” x 6 | 1-1/8” x 6 | 3-5/8” | 5-1/2” | 75 | 1.3 |
| AWPTO1666 | SP1666 | PTO short increaser | 1-3/8” x 6 | 1-1/8” x 6 | 1-1/8” | 3-1/4” | 75 | 0.6 |
| AWPTO1667 | SP1667 | PTO spline adapter; 20 to 6 spline; set screw lock | 1-3/8” x 6 | 1-3/4” x 20 | 4-5/8” | 7-1/2” | 75 | 6.1 |
| AWPTO1668 | SP1668 | PTO extender | 1-3/8” x 6 | 1-3/8” x 6 | 3-5/16” | 5-1/8” | 75 | 2.2 |

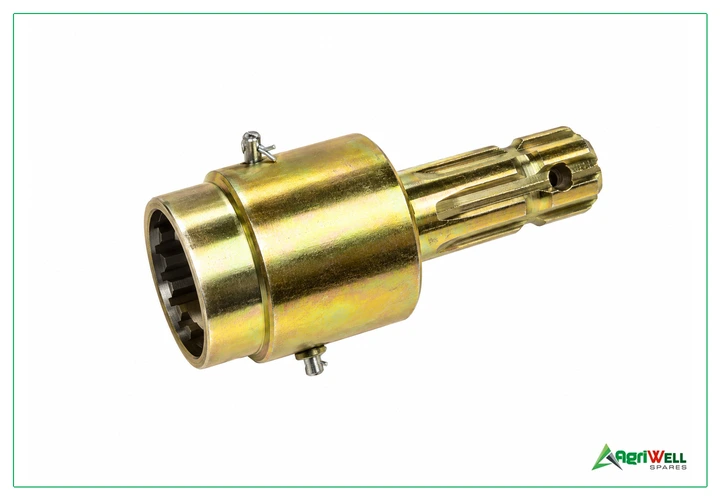

| AWPTO16610 | SP16610 | PTO spline adapter with quick-release; converts 21 spline 1000 RPM to 6 spline 540 RPM | 1-3/8” x 6 | 1-3/8” x 21 | 3-7/8” | 6-1/2” | 75 | 2.5 |
| AWPTO16611 | SP16611 | PTO spline adapter with quick-release: converts 6 spline 540 RPM to 21 spline 1000 RPM | 1-3/8” x 21 | 1-3/8” x 6 | 4-1/8” | 6-1/2” | 75 | 2.5 |
| AWPTO16612 | SP16612 | PTO extender with quick-release | 1-3/8” x 6 | 1-3/8” x 6 | 4-3/8” | 6-1/2” | 75 | 2.8 |
| AWPTO16613 | SP16613 | PTO extender with quick-release; 21 spline 1000 RPM | 1-3/8” x 21 | 1-3/8” x 21 | 4-1/8” | 5-7/8” | 75 | 3.2 |
| AWPTO16615 | SP16615 | PTO spline adapter; 20 to 21 spline; set screw lock | 1-3/8” x 21 | 1-3/4” x 20 | 4-5/8” | 7” | 75 | 4.2 |

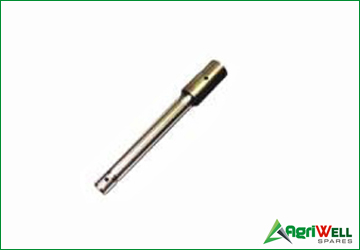

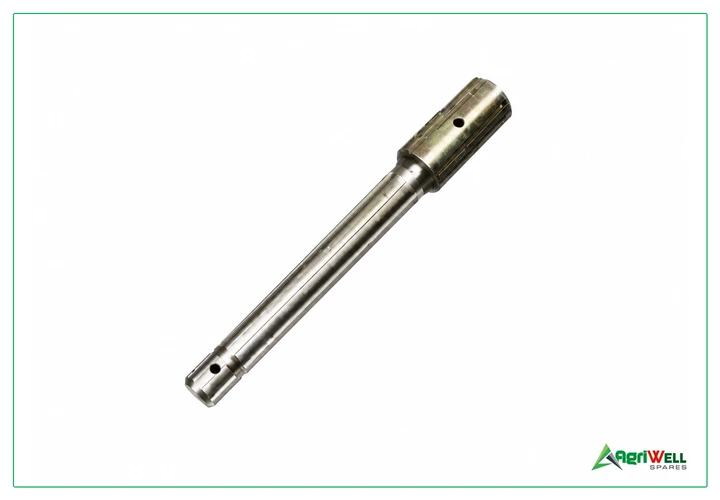

| AWPTO16646 | SP16646 | Splined adapter; extended length for use with Gresen pump | 1-3/8” x 6 | 1-3/8” x 6 | 11-5/8” | 15” | 75 | 6.0 |
| AWPTO16630 | SP16630 | Over-running clutch; maximum 1000 RPM operating speed | 1-3/8” x 6 | 1-3/8” x 6 | 3-13/16” | 6-1/2” | 75 | 5.0 |
| AWPTO16631 | SP16631 | Over-running clutch; maximum 1000 RPM operating speed | 1-3/8” x 6 | 1-1/8” x 6 | 3-13/16” | 6-1/2” | 75 | 5.0 |
| AWPTO16660 | SP16660 | Over-running clutch with quick-release; maximum 1000 RPM operating speed | 1-3/8” x 6 | 1-3/8” x 6 | 4-1/2” | 6-3/4” | 75 | 7.2 |
| AWPTO16661 | SP16661 | Over-running clutch with quick-release; maximum 1000 RPM operating speed | 1-3/8” x 6 | 1-1/8” x 6 | 4-1/2” | 6-3/4” | 75 | 7.1 |
