GUIDE CONE BALL
Precision agricultural component
GUIDE CONE BALL

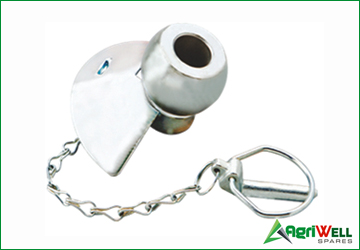

Balls (Material C-20, Hardness 52-58 HRC, Case Depth 0.4 - 0.8 mm) Optional Material 16MnCr5 / 20MnCr5. Trivalent Zinc Plating.

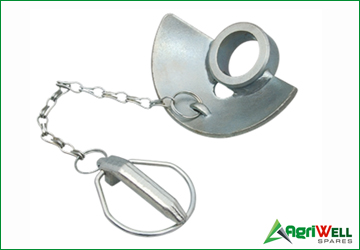

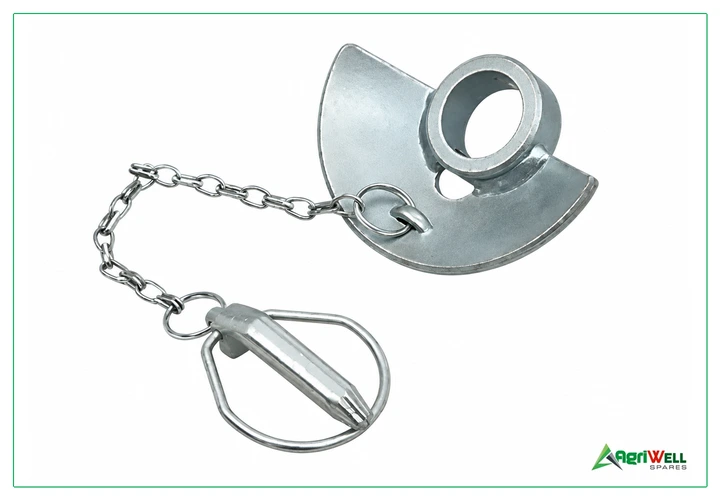

Bush (Material C-20, Hardness 52-58 HRC, Case Depth 0.4 - 0.8 mm),Optional Material 16MnCr5 / 20MnCr5. Trivalent Zinc Plating.
Discuss this product →Technical specifications
Product specifications

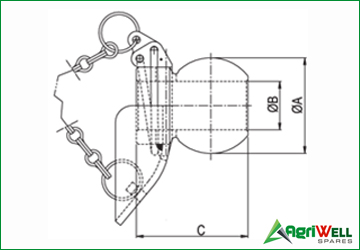

| Part Number | Dia. ØA (mm) | Dia. ØB (mm) | Dim. C (mm) | LINCH PIN SIZE | Ref. Number |
|---|---|---|---|---|---|
| GCB4422 | 44 | 22.1 | 54 | 11 | 01450 |
| GCB5622 | 56 | 22.1 | 66 | 11 | |
| GCB5628 | 56 | 28.4 | 66 | 11 | 01451 |
| GCB5637 | 56 | 37.1 | 66 | 11 | 01452 |
| GCB6428 | 64 | 28.4 | 66 | 11 | |
| GCB6437 | 64 | 37.1 | 72 | 15 | |
| GCB6437-11 | 64 | 37.1 | 72 | 11 |
Swipe horizontally to view all specifications →
Technical specifications
Product specifications 2

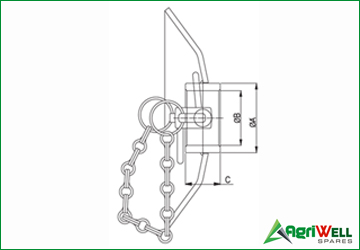

| Part Number | Dia. ØA (mm) | Dia. ØB (mm) | Dim. C (mm) | Dim. D (mm) | Dim. E (mm) | Ref. Number |
|---|---|---|---|---|---|---|
| GCBB-472825 | 45 | 28.4 | 24 | 24 | 24 | 10107 |
Swipe horizontally to view all specifications →
Technical specifications
Product specifications 3

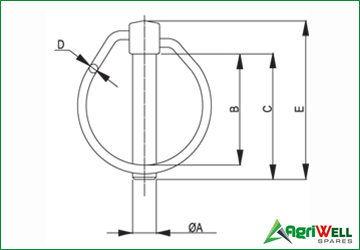

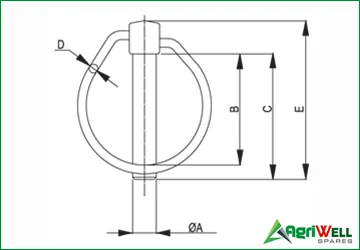

| Part Number | Dia. ØA (mm) | Dia. ØB (mm) | Dim. C (mm) | Dim. D (mm) | Dim. E (mm) | Ref. Number |
|---|---|---|---|---|---|---|

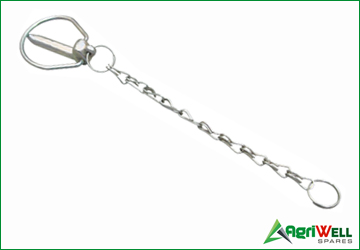

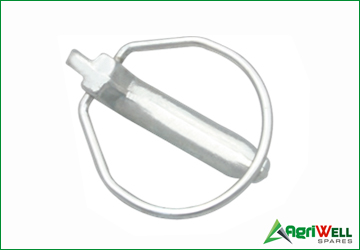

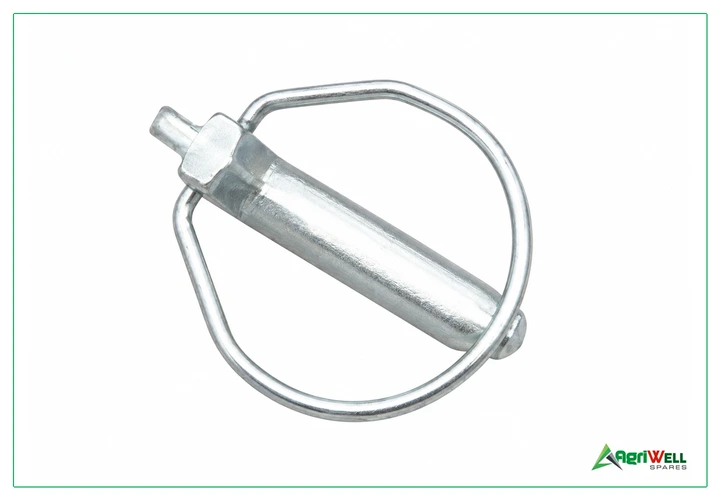

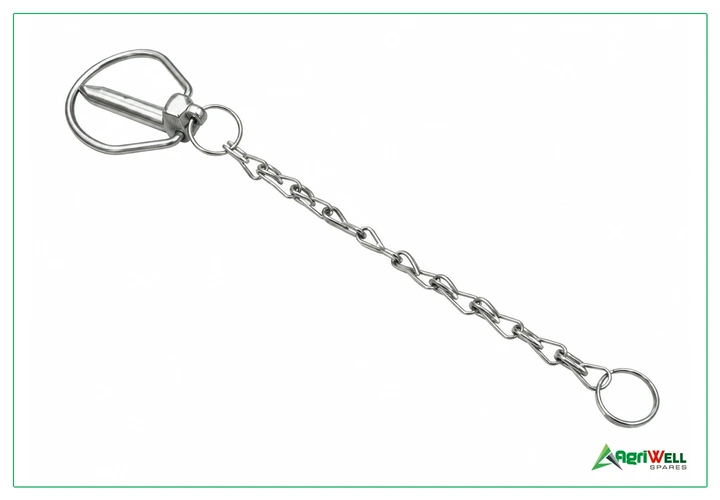

| LPF-1148 | 11 | 48 | 52 | 4 | 70 | 0068 |
| LPF-1548 | 15 | 56 | 60 | 4 | 82 | 37943 |
