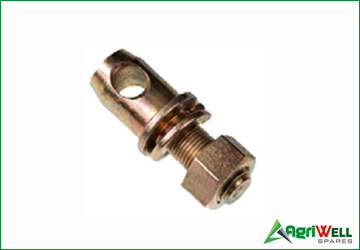

STABILIZER PINS
Precision agricultural component
STABILIZER PINS
Manufactured for reliable performance across agricultural and industrial applications. Contact AgriWell for drawings, quantities, finishes and OEM requirements.
Discuss this product →Technical specifications
Product specifications

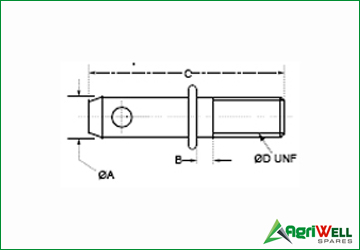

| AgriWellPart No. | ReferenceNumber | Popular Code | Description | Pin Dia ØA (Inches) | Usable Length B (Inches) | Overall length C (Inches) | Thread Dia ØD (Inches) | Package Qty. | Bulk Weight (lbs.) |
|---|---|---|---|---|---|---|---|---|---|
| AWSP9259 | 87299259 | P781 | Replaces Ford 230044, Massey-Ferguson 18177M1 | 7/8" | 3/8" | 2-5/8" | 5/8" NF | 5 | 0.39 |
| AWSP9261 | 87299261 | P785 | Replaces Ford 141185, Massey-Ferguson MF668154M1 | 7/8" | 1-1/4" | 3-1/8" | 5/8" NF | 5 | 0.40 |
| AWSP9262 | 87299262 | P787 | Stabilizer stub pin | 7/8" | 1/2" | 2-5/8" | 5/8" NF | 5 | 0.30 |
| AWSP9263 | 87299263 | P788 | Replaces MF186802M1 | 7/8" | 11/16" | 3-1/8" | 3/4" NF | 5 | 0.40 |
| AWS | — | P711 | 7/8" | 1/2" | 3-1/4” | 7/8” NF | 5 | 0.80 |
