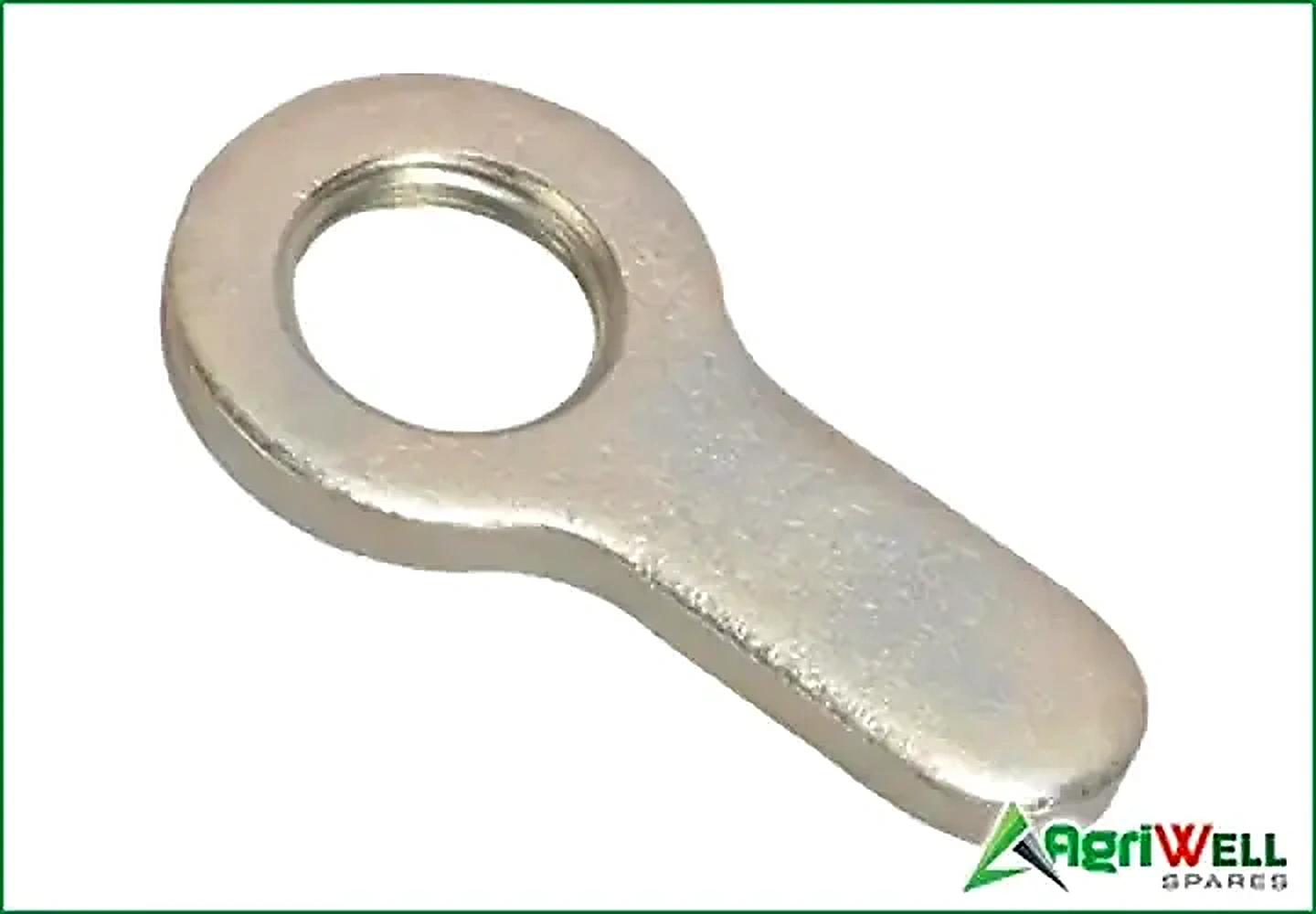

TOP LINK LOCKING COLLARS
Precision agricultural component
TOP LINK LOCKING COLLARS
Manufactured for reliable performance across agricultural and industrial applications. Contact AgriWell for drawings, quantities, finishes and OEM requirements.
Discuss this product →Technical specifications
Product specifications
| Part Number | Dim. A (mm) | Dia. ØB (mm) | Dim. C (mm) | Thread Size ØD (mm) | Ref. Number |
|---|---|---|---|---|---|
| TLLCF-2225 | 25 | 34 | 12 | 22X2.5 | 11879 |
| TLLCF-2425 | 25 | 34 | 12 | 24X25 | 04155 |
| TLLCF-2430 | 25 | 34 | 12 | 24X3 | 18780 |
| TLLCF-2730 | 40 | 40 | 18 | 27X3 | 04156 |
| TLLCF-3030 | 40 | 40 | 18 | 30X3 | 04157 |
| TLLCF-3035 | 40 | 40 | 18 | 30X3.5 | 18781 |
| TLLCF-3630 | 48 | 48 | 23 | 36X3 | 18782 |
| TLLCF-4030 | 50 | 54 | 28 | 40X3 | 18783 |
Swipe horizontally to view all specifications →
Technical specifications

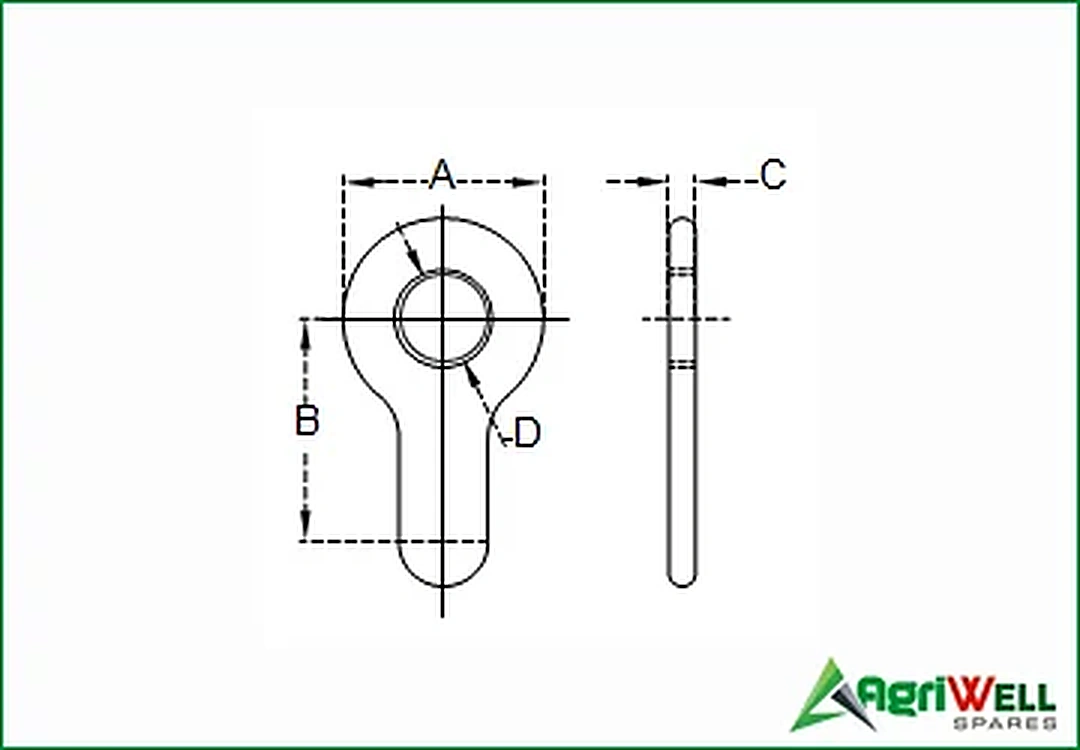

Product specifications 2
| Part Number | Dim. A (mm) | Dim. B (mm) | Dim. C (mm) | Thread Size ØD (mm) | Ref. Number |
|---|---|---|---|---|---|
| TLLCS-2225 | 45 | 60 | 6 | 22X2.5 | 04177 |
| TLLCS-2425 | 45 | 60 | 6 | 24X2.5 | 04153 |
| TLLCS-2430 | 45 | 60 | 6 | 24X3 | 18777 |
| TLLCS-2730 | 45 | 60 | 6 | 27X3 | 04154 |
| TLLCS-3030 | 45 | 60 | 6 | 30X3 | 04160 |
| TLLCS-3035 | 45 | 60 | 6 | 30X3.5 | 18778 |
| TLLCS-3630 | 60 | 88 | 10 | 36X3 | 04178 |
| TLLCS-4030 | 60 | 88 | 10 | 40X3 | 04184 |
Swipe horizontally to view all specifications →
