SUPLINED SHAFTS
Precision agricultural component
SUPLINED SHAFTS
Manufactured for reliable performance across agricultural and industrial applications. Contact AgriWell for drawings, quantities, finishes and OEM requirements.
Discuss this product →Technical specifications
Product specifications
| Part Number | Outer Profile (Male) | Flang Dia. Ø (mm) | Total Length (mm) | Ref. Number |
|---|---|---|---|---|
| PTSFL-1101 | 1-3/8"x 6 | 70 | 90 | 00499 |

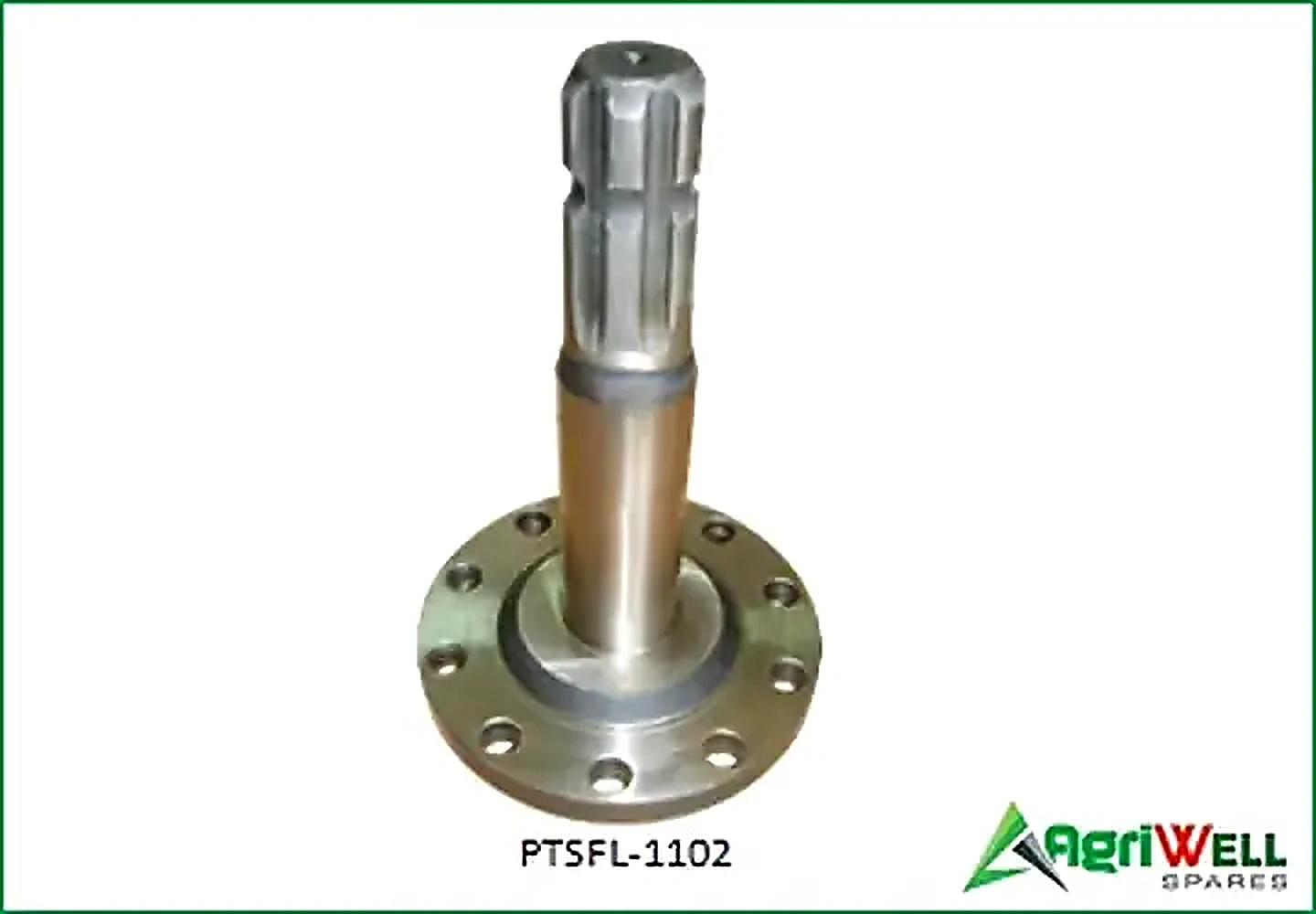

| PTSFL-1102 | 1-3/4"x 6 | 180 | 270 | |

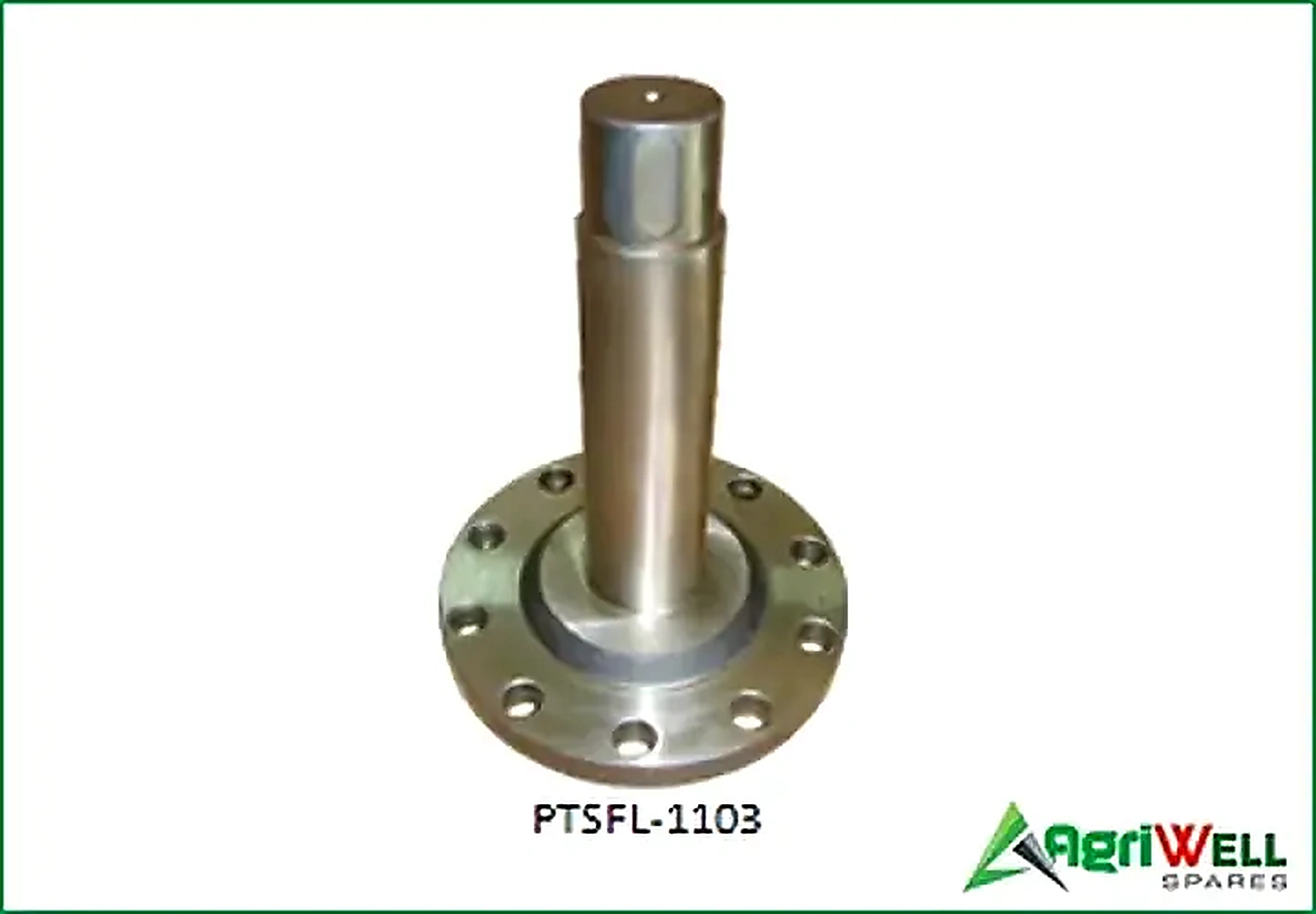

| PTSFL-1103 | with Key Way | 180 | 297 | |

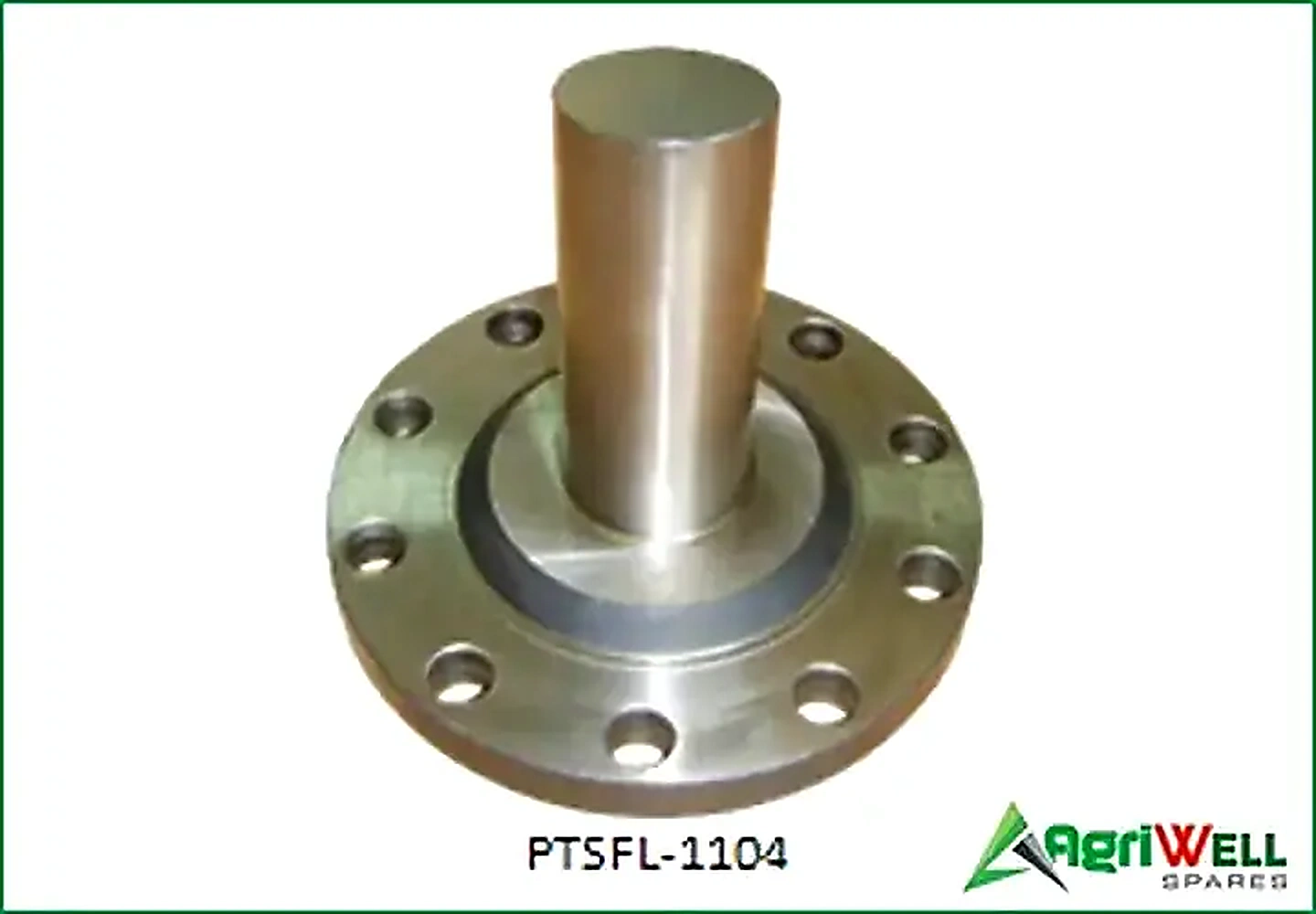

| PTSFL-1104 | --------- | 180 | 120 |
Swipe horizontally to view all specifications →
Technical specifications
Product specifications 2
| Part Number | Outer Profile (Male) | Total Length (mm) | Splined Length (mm) | Ref. Number |
|---|---|---|---|---|

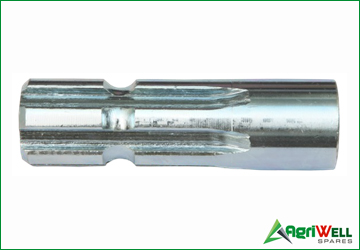

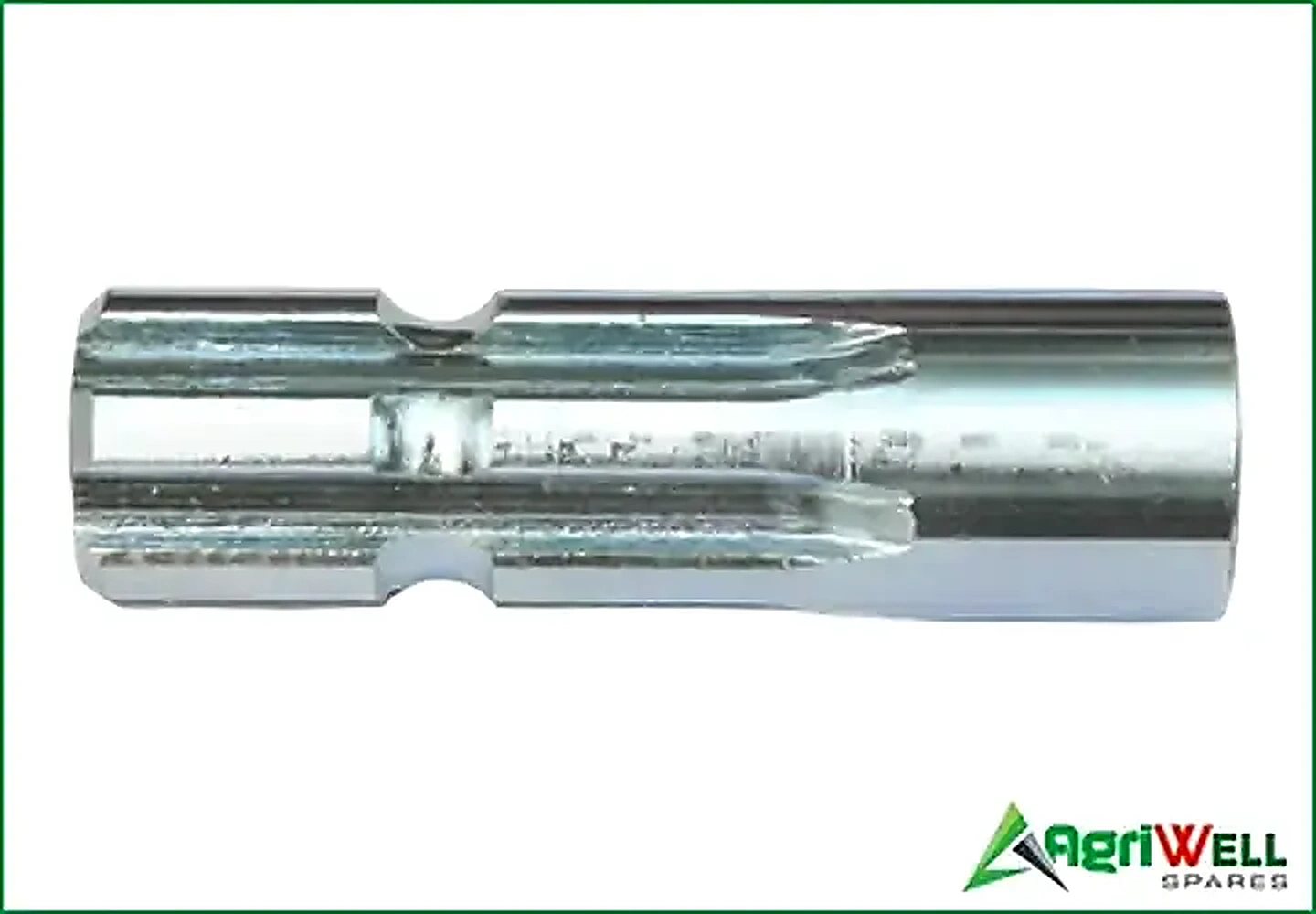

| PTSS-1101 | 1-3/8"x 6 | 100 | 75.0 | S-16383 |
| PTSS-1102 | 1-3/8”x 6 | 120 | 62.5 | S-252SPL |
| PTSS-1103 | 1-3/8”x 6 | 120 | 75.0 | 00139 |
| PTSS-1104 | 1-3/8”x 6 | 150 | 75.0 | S-16426, '05715 |
| PTSS-1105 | 1-3/8"x 6 | 200 | 75.0 | S-16384, '00145 |
| PTSS-1106 | 1-3/8”x 6 | 250 | 65.0 | 05716 |
| PTSS-1107 | 1-3/8”x 6 | 300 | 64.0 | S-945 |
| PTSS-1108 | 1-3/8”x 6 | 300 | 68.5 | 05711 |
| PTSS-1109 | 1-3/8”x 6 | 300 | 75.0 | S-944 |
| PTSS-1110 | 1-3/8”x 6 | 300 | 49.0 | S-943 |
| PTSS-1111 | 1-3/8”x 6 | 350 | 75.0 | S-16427 |
Swipe horizontally to view all specifications →
Technical specifications
Product specifications 3
| Part Number | Outer Profile (Male) | Total Length (mm) | Splined Length (mm) | Ref. Number |
|---|---|---|---|---|

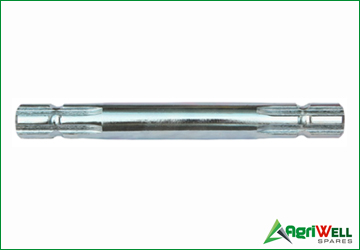

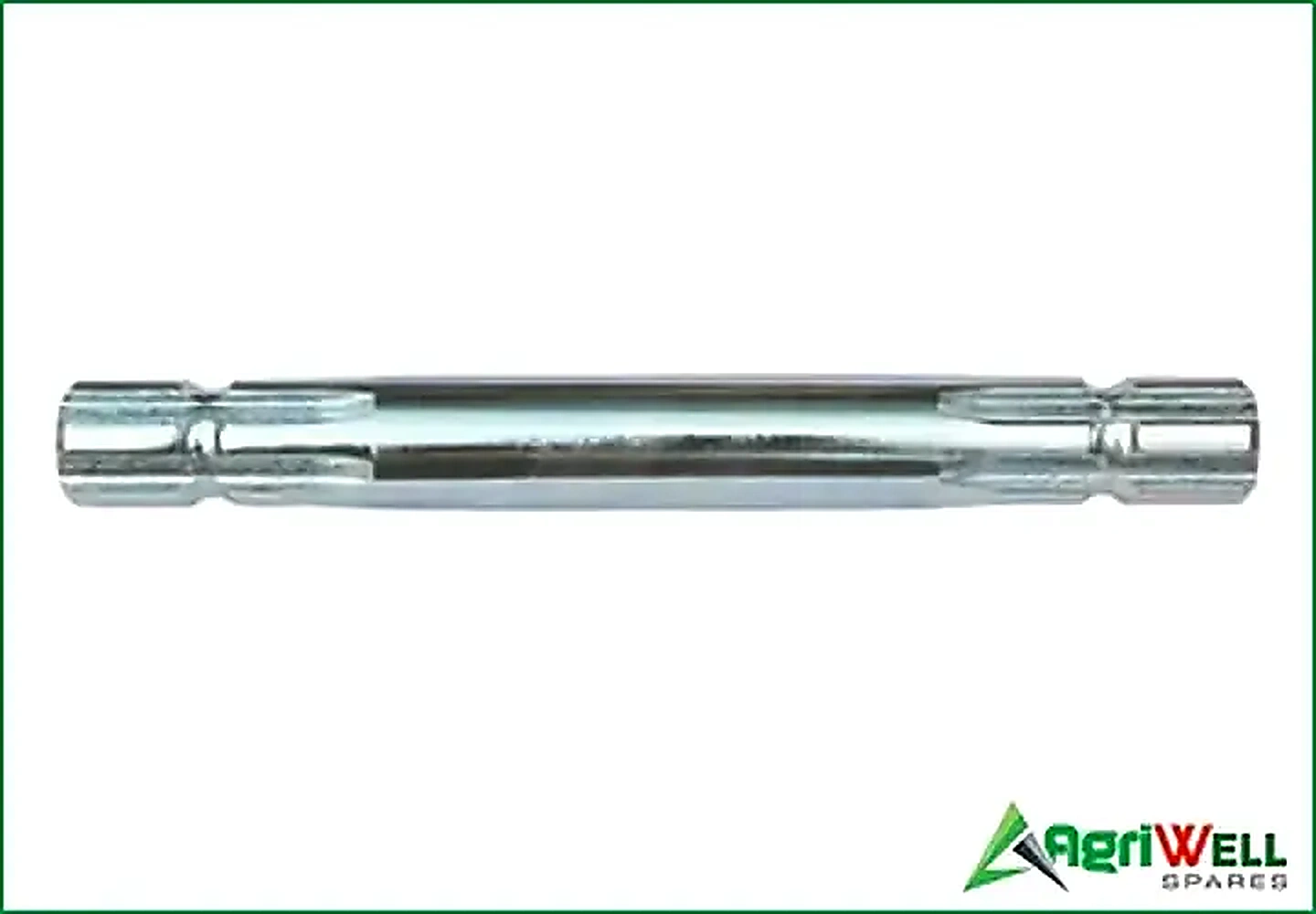

| PTSD-1121 | 1-3/8"x 6 | 150 | 62.50 & 62.50 | S-16615 |
| PTSD-1122 | 1-3/8”x 6 | 230 | 65.00 & 65.00 | S-279 |
| PTSD-1123 | 1-3/8”x 6 | 230 | 75.00 & 75.00 | S-16428 |
| PTSD-1124 | 1-3/8”x 6 | 300 | 65.00 & 65.00 | S-1952 |
| PTSD-1125 | 1-3/8"x 6 | 300 | 68.50 & 68.50 | 00146 |
| PTSD-1126 | 1-3/8”x 6 | 300 | 75.00 & 75.00 | S-15952 |
Swipe horizontally to view all specifications →
Technical specifications
Product specifications 4
| Part Number | Outer Profile (Male) | Total Length (mm) | Splined Length (mm) | Ref. Number |
|---|---|---|---|---|

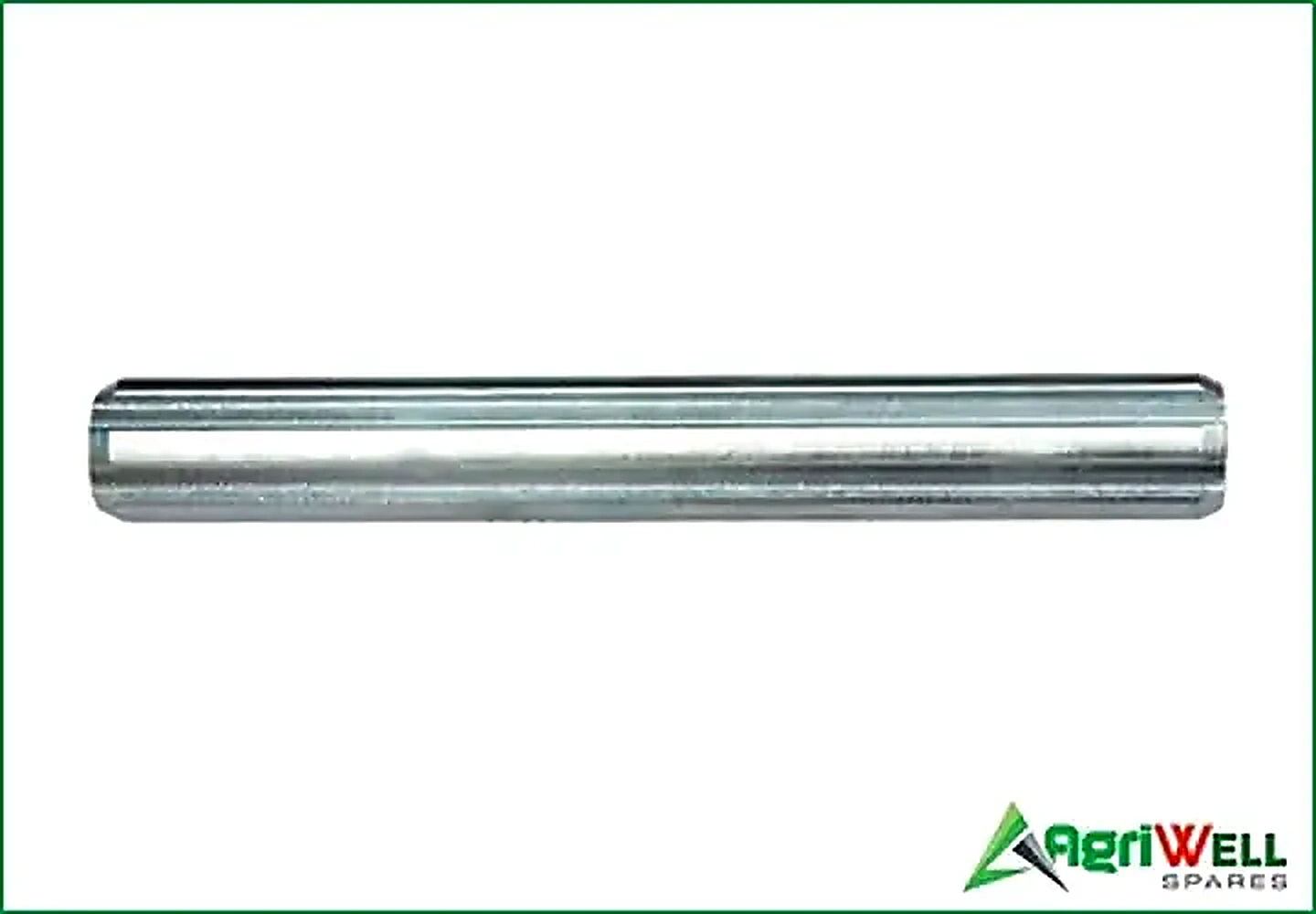

| PTSF-1131 | 1-1/8"x 6 | 254 | 254 | S-282 |
| PTSF-1132 | 1-3/8”x 6 | 254 | 254 | S-283 |
| PTSF-1133 | 1-3/8”x 21 | 254 | 254 | S-15193 |
| PTSF-1134 | 1-3/8”x 21 | 254 | 254 | B-2657 |
| PTSF-1135 | 1-3/8"x 6 | 775 | 775 | B-6283 |
| PTSF-1136 | 1-3/8"x 6 | 1000 | 1000 | B-283SPL |
Swipe horizontally to view all specifications →
