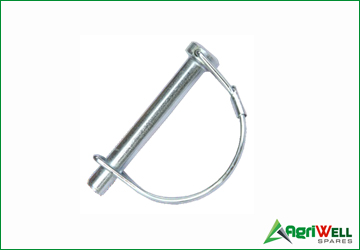

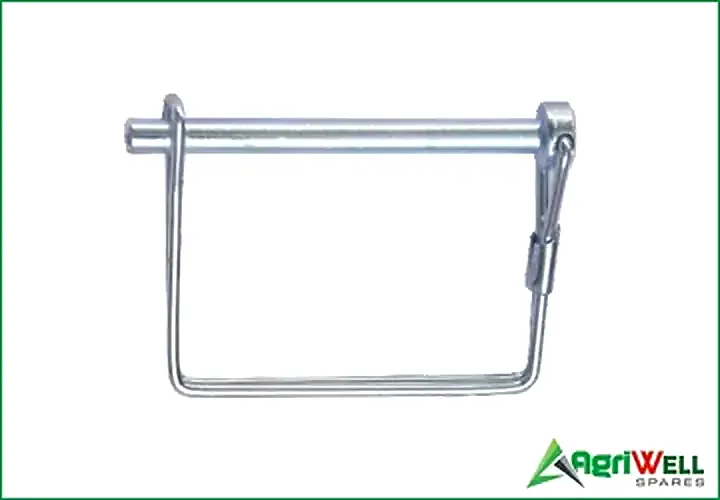

PTO PINS
Precision agricultural component
PTO PINS
Manufactured for reliable performance across agricultural and industrial applications. Contact AgriWell for drawings, quantities, finishes and OEM requirements.
Discuss this product →Technical specifications

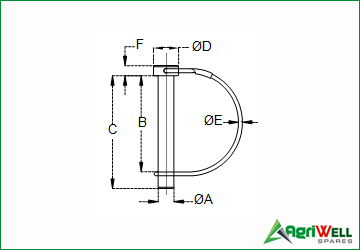

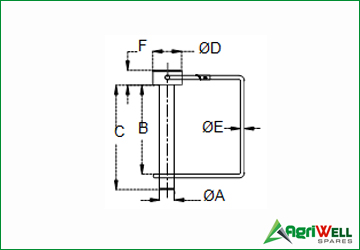

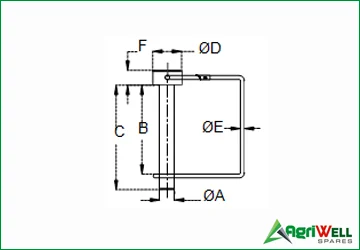

Product specifications
| Part Number | Dia. ØA (mm) | Dim. B (mm) | Dim. C (mm) | Dia. ØD (mm) | Dia. ØE (mm) | Dim. F (mm) | Ref. Number |
|---|---|---|---|---|---|---|---|
| PTOPR-650 | 6 | 50 | 60 | 12 | 2.5 | 6 | |
| PTOPR-657 | 6 | 57 | 67 | 12 | 2.5 | 6 | |
| PTOPR-745 | 7 | 45 | 50 | 16 | 2.5 | 6 | 09354 |
| PTOPR-838 | 8 | 38 | 45 | 14 | 2.5 | 7 | 02913 |
| PTOPR-860 | 8 | 60 | 73 | 15 | 2.5 | 7 | 01369 |
| PTOPR-9557 | 9.5 | 57 | 67 | 16 | 2.5 | 10 | |
| PTOPR-1038 | 10 | 38 | 45 | 15 | 2.5 | 7 | 02914 |
| PTOPR-1060 | 10 | 60 | 70 | 19 | 2.5 | 10 | 01370 |
| PTOPR-1145 | 11 | 45 | 55 | 19 | 2.5 | 10 | |
| PTOPR-1189 | 11 | 89 | 99 | 19 | 2.5 | 10 | |
| PTOPR-1267 | 12 | 67 | 75 | 20 | 2.5 | 10 | |
| PTOPR-1270 | 12 | 70 | 90 | 18 | 2.5 | 7 |
Swipe horizontally to view all specifications →

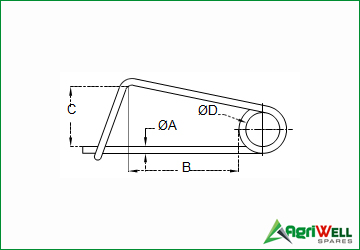

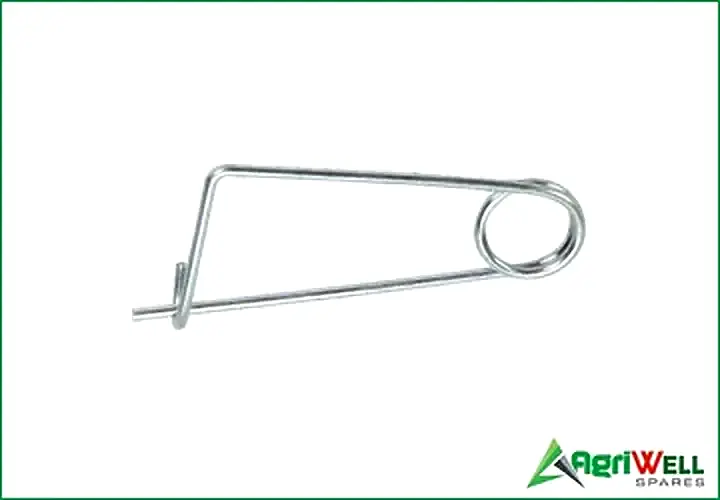

Technical specifications
Product specifications 2
| Part Number | Dia. ØA (mm) | Dim. B (mm) | Dim. C (mm) | Dia. ØD (mm) | Ref. Number |
|---|---|---|---|---|---|
| SP-360 | 3 | 60 | 35 | 20 | 00122 |
| SP-4100 | 4 | 100 | 55 | 33 | 00107 |
| SP-590 | 5 | 90 | 42 | 31 | 00108 |
| SP-6100 | 6 | 100 | 50 | 30 | 00109 |
Swipe horizontally to view all specifications →
