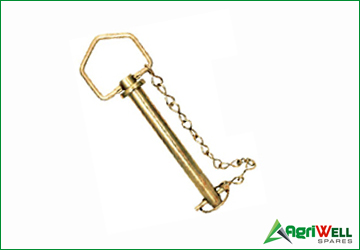

FOLDOVER HANDLE HITCH PINS WITH CHAIN & LINCH PIN
Precision agricultural component
FOLDOVER HANDLE HITCH PINS WITH CHAIN & LINCH PIN
FOLDOVER HANDLE HITCH PINS WITH CHAIN & LINCH PIN
Discuss this product →Technical specifications
Product specifications

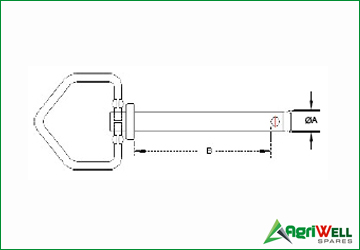

| AgriWellPart No. | ReferenceNumber | Popular Code | Pin Dia ØA (Inches) | Usable Length B (Inches) | Overall length (Inches) | Package Qty. | Weight (lbs.) |
|---|---|---|---|---|---|---|---|
| AWHPCL9338 | 87299338 | P71011CL | 1/2" | 4-1/4" | 5-3/4" | 1 | 0.5 |
| AWHPCL9339 | 87299339 | P71012CL | 1/2" | 6-1/4" | 7-3/4" | 1 | 0.6 |
| AWHPCL9340 | 87299340 | P71021CL | 5/8" | 4-1/4" | 5-3/4" | 1 | 0.7 |
| AWHPCL9341 | 87299341 | P71022CL | 5/8" | 6-1/4" | 7-3/4" | 1 | 0.9 |
| AWHPCL9342 | 87299342 | P71031CL | 3/4" | 4-1/4" | 5-3/4" | 1 | 1.0 |
| AWHPCL9343 | 87299343 | P71032CL | 3/4" | 6-1/4" | 7-3/4" | 1 | 1.2 |
| AWHPCL9344 | 87299344 | P71042CL | 7/8" | 6-1/4" | 7-3/4" | 1 | 1.6 |
| AWHPCL9345 | 87299345 | P71052CL | 1" | 6-1/4" | 7-3/4" | 1 | 2.0 |
| AWHPCL9346 | 87299346 | P71062CL | 1-1/8" | 6-1/4" | 7-3/4" | 1 | 2.5 |
| AWHPCL9347 | 87299347 | P71072CL | 1-1/4" | 6-1/4" | 7-3/4" | 1 | 3.0 |
