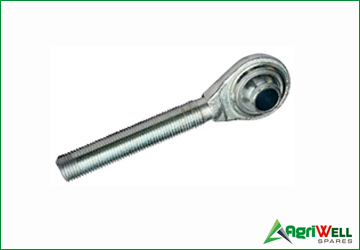

TOP LINK ENDS
Precision agricultural component
TOP LINK ENDS
Manufactured for reliable performance across agricultural and industrial applications. Contact AgriWell for drawings, quantities, finishes and OEM requirements.
Discuss this product →Technical specifications
Product specifications

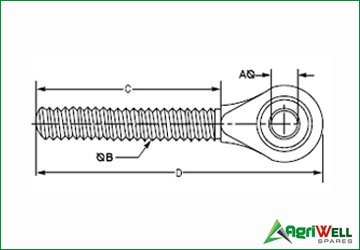

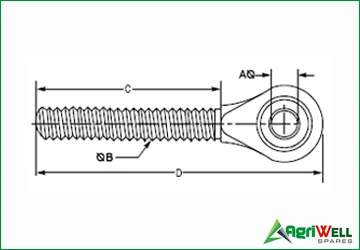

| AgriWellPart No. | ReferenceNumber | Popular Code | Cat. | Type | Pin Hole ØA (Inches) | Thread ØB (Inches) | Thread Length C (Inches) | Overall Length D (Inches) | Package Qty. | Weight (lbs.) |
|---|---|---|---|---|---|---|---|---|---|---|
| AWTLE9186 | – | RE1934 | 0 | Forged | 5/8” | 3/4” NC (RH) | 3-1/2” | 6” | 1 | 0.8 |
| AWTLE9187 | – | RE1933 | 0 | Forged | 5/8” | 3/4” NC (LH) | 3-1/2” | 6” | 1 | 0.8 |
| AWTLE9188 | 87299188 | RE1619 | 1 | Forged | 3/4" | 1-1/8" NC (LH) | 6" | 8-3/4” | 1 | 2.4 |
| AWTLE9189 | 87299189 | RE1620 | 1 | Forged | 3/4" | 1-1/8" NC (RH) | 6" | 8-3/4” | 1 | 2.4 |
| AWTLE9190 | 87299190 | RE1717 | 2 | Forged | 1" | 1-1/4" NC (LH) | 5-1/2" | 10" | 1 | 3 |
| AWTLE9191 | 87299191 | RE1718 | 2 | Forged | 1" | 1-1/4" NC (RH) | 5-1/2" | 10" | 1 | 3 |
| AWTLE9192 | 87299192 | RE1640 | 2 | Forged | 1" | 1-1/8" NC (RH) | 6-1/2" | 11" | 1 | 3 |
| AWTLE9193 | 87299193 | RE1641 | 2 | Forged | 1" | 1-1/8" NC (LH) | 6-1/2" | 11" | 1 | 3 |
| AWTLE9194 | 87299194 | RE1826 | 3 | Forged | 1-1/4" | 1-3/8" NC (RH) | 7-1/4" | 12-1/8" | 1 | 8 |
| AWTLE9195 | 87299195 | RE1827 | 3 | Forged | 1-1/4" | 1-3/8" NC (LH) | 7-1/4" | 12-1/8" | 1 | 8 |
| AWTLE9196 | — | RE113 | 0 | Forged | 3/4” | 1” NC (LH) | 5-1/2”” | 8" | 1 | 1.8 |
| AWTLE9197 | — | RE114 | 0 | Forged | 3/4" | 1” NC (RH) | 5-1/2” | 8" | 1 | 1.8 |
