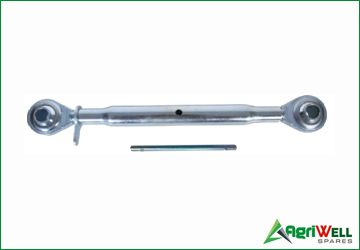

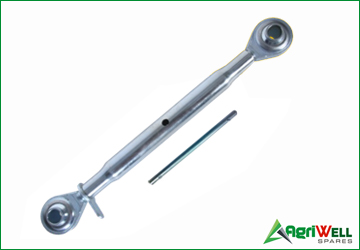

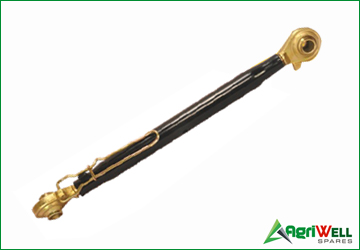

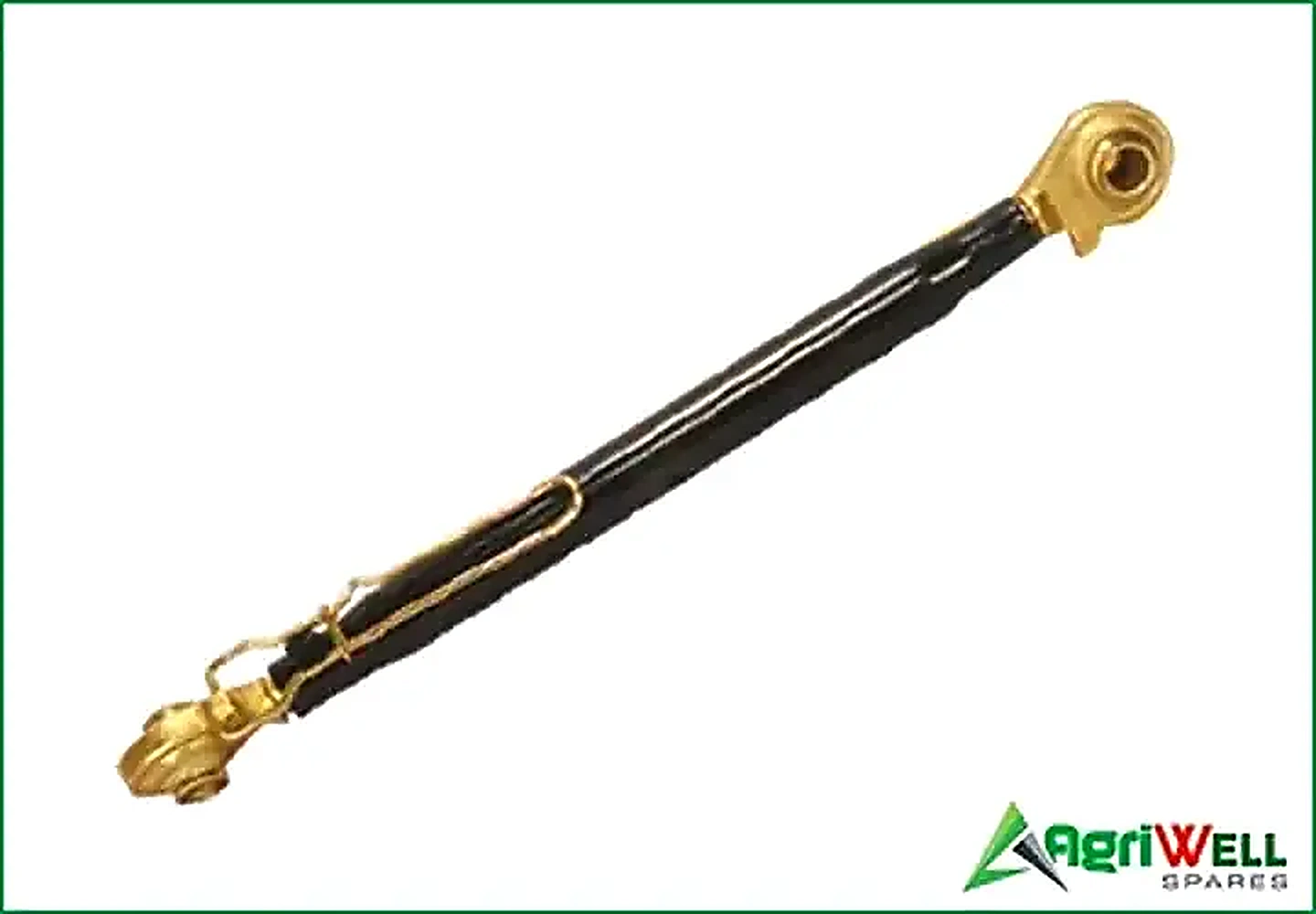

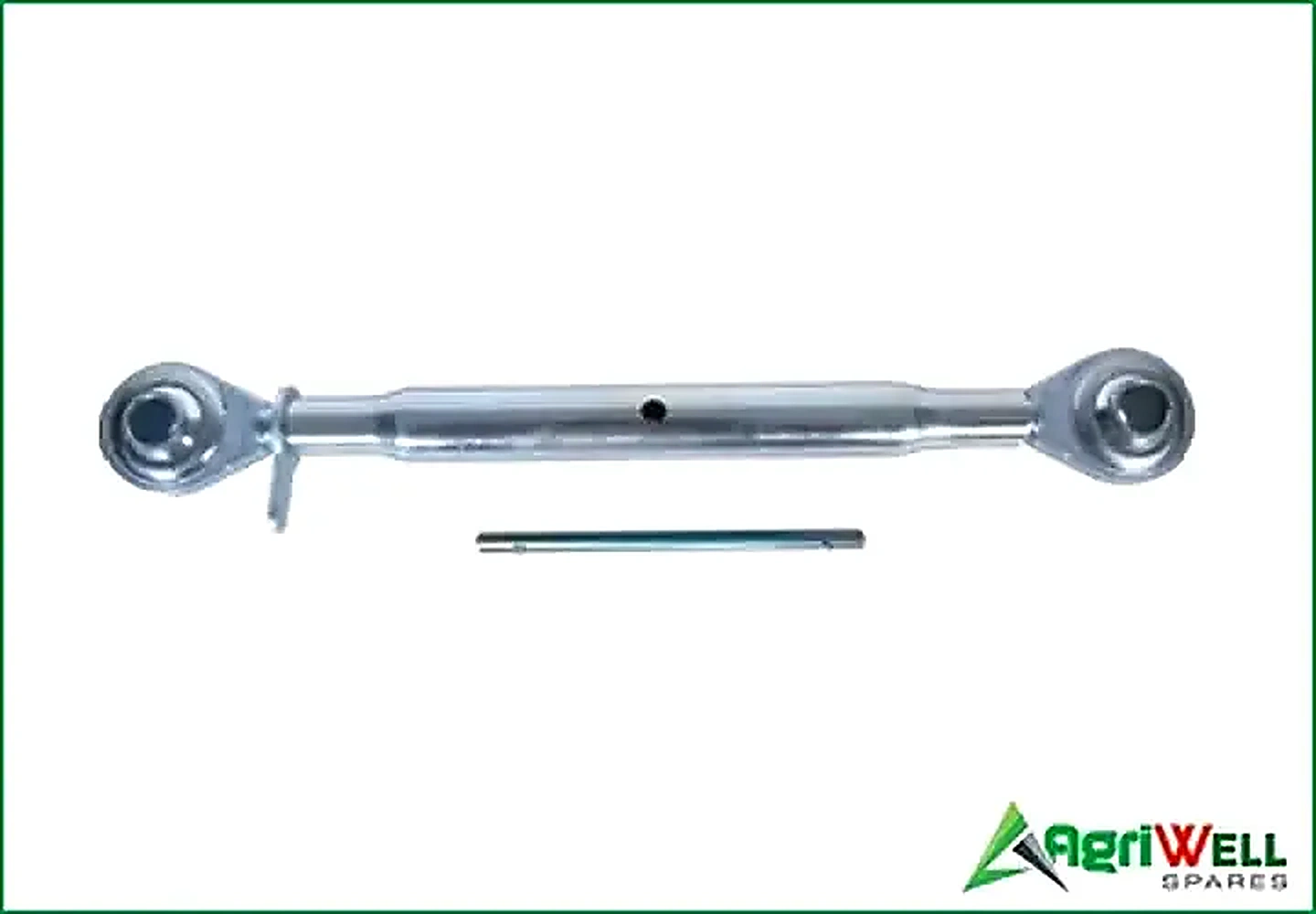

TOP LINK ASEMBLY

Current product rangeEuropean Products Range

Precision agricultural component

TOP LINK ASEMBLY

Manufactured for reliable performance across agricultural and industrial applications. Contact AgriWell for drawings, quantities, finishes and OEM requirements.

Discuss this product →

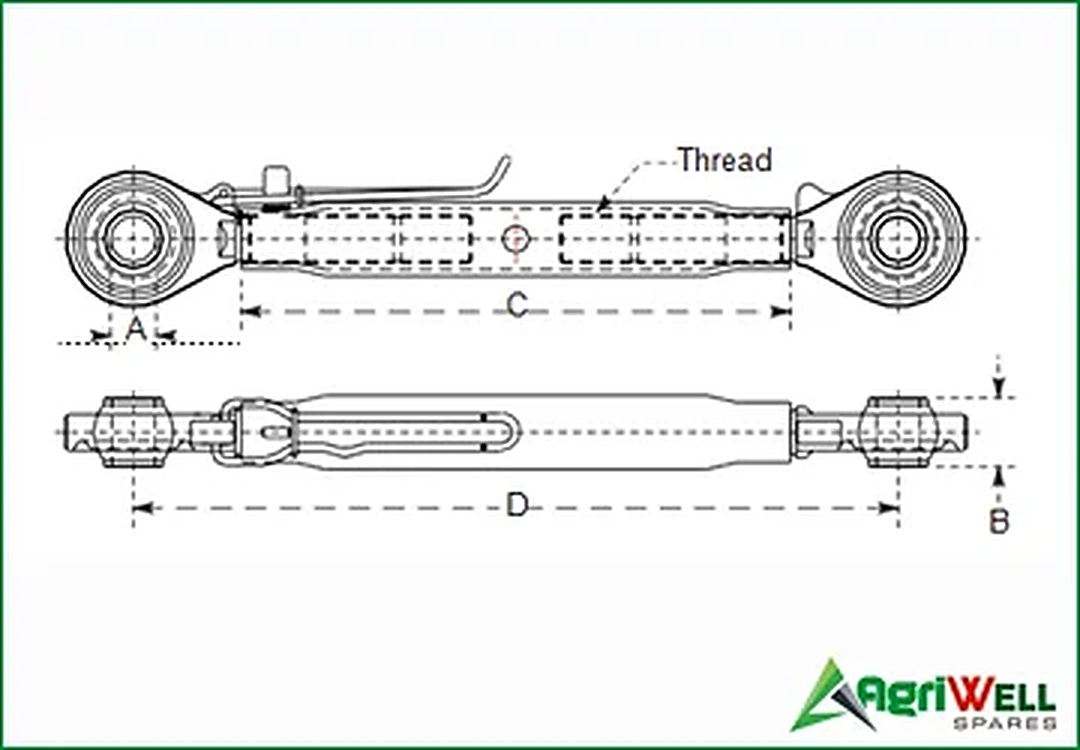

Technical specifications

Product specifications

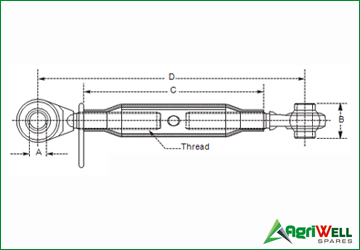

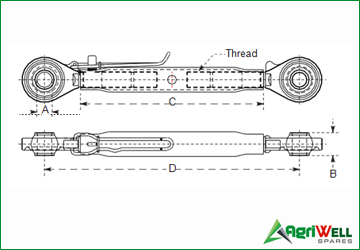

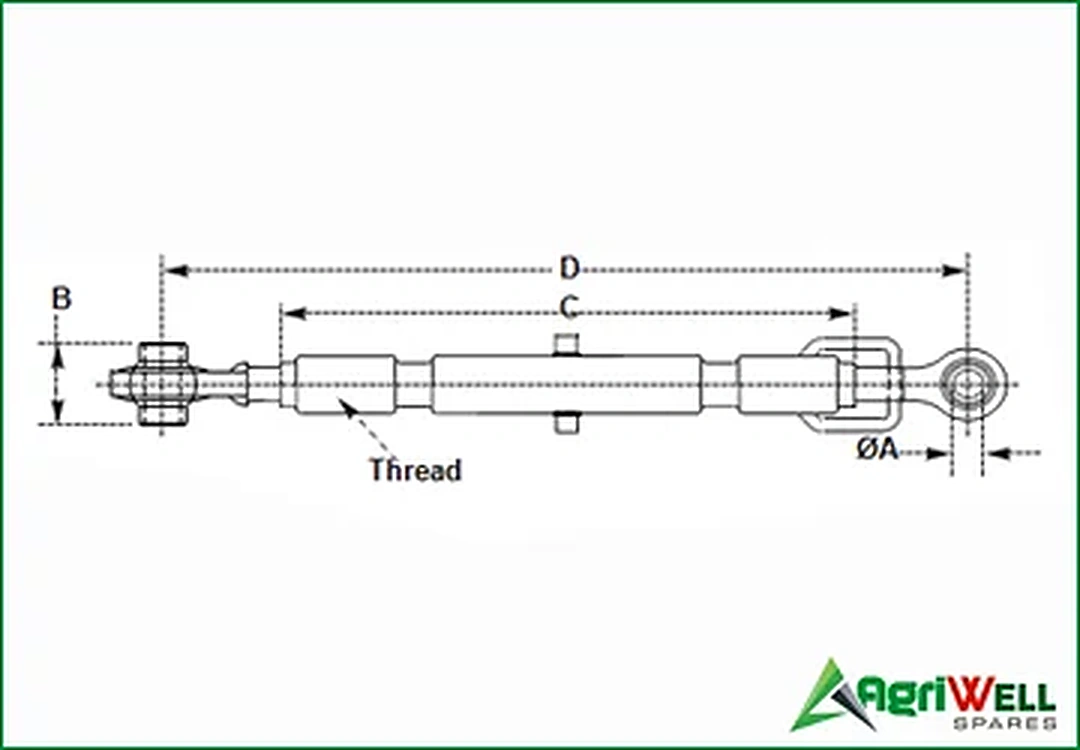

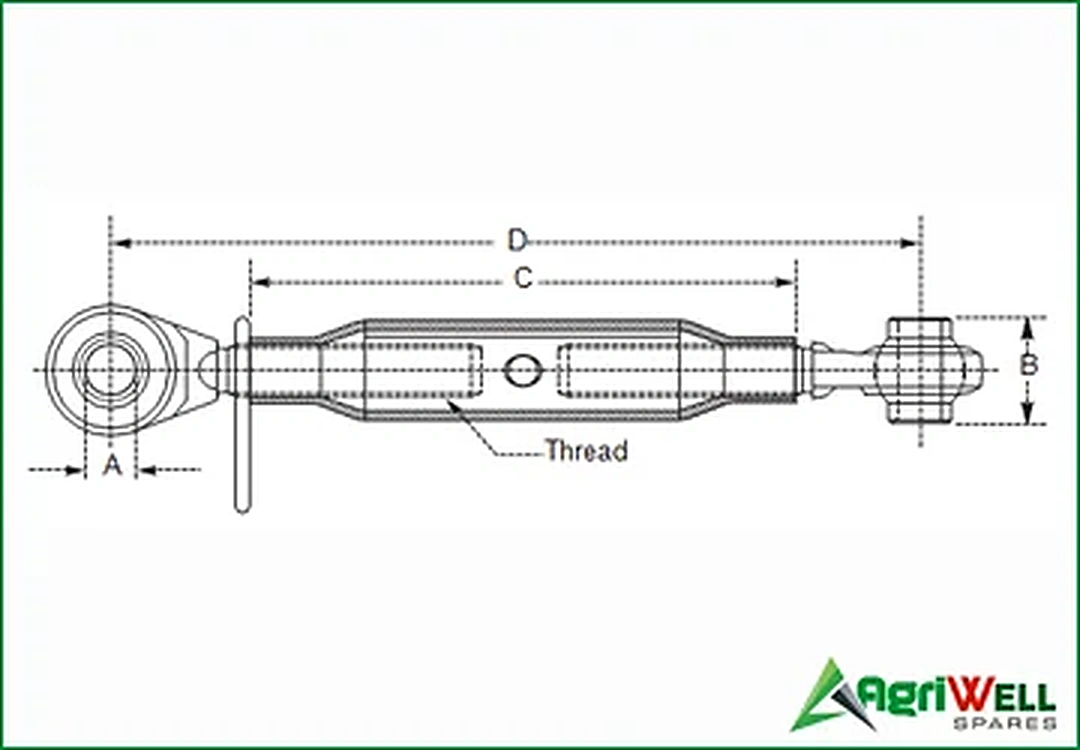

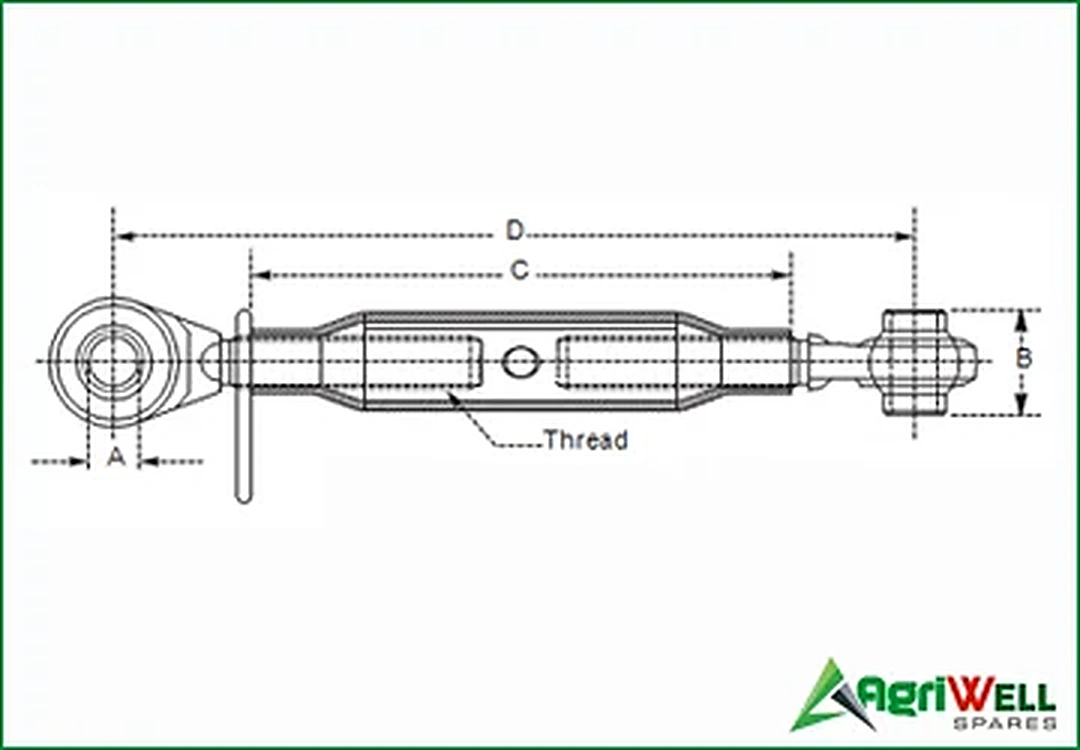

Part Number	Cat.	Ball ID ØA (mm)	Ball Length B (mm)	Thread (mm)	Pipe Length C (mm)	Dim. D Min. (mm)	Dim. D Max. (mm)	Ref. Number
TLA-2019000	0	16	25.4	20 x 2.5	190	265	385
TLA-2025000	0	16	25.4	20 x 2.5	250	325	470
TLA-2040000	0	16	25.4	20 x 2.5	400	475	695
TLA-2216011	1	19	44	22 x 2.5	160	256	350	19671
TLA-2218011	1	19	44	22 x 2.5	180	290	390
TLA-2222011	1	19	44	22 x 2.5	220	330	470
TLA-2223011	1	19	44	22 x 2.5	230	330	490	00186
TLA-2228011	1	19	44	22 x 2.5	280	380	540	19672
TLA-2230011	1	19	44	22 x 2.5	300	400	560	00218
TLA-2424511	1	19	44	24 x 3	245	355	515
TLA-2428011	1	19	44	24 x 3	280	390	570
TLA-2430011	1	19	44	24 x 3	300	410	590
TLA-2432011	1	19	44	24 x 3	320	430	610
TLA-2437011	1	19	44	24 x 3	370	480	660
TLA-2440011	1	19	44	24 x 3	400	510	690
TLA-2722011	1	19	44	27 x 3	220	330	450	19674
TLA-2727511	1	19	44	27 x 3	275	385	565
TLA-2732011	1	19	44	27 x 3	320	430	640	11047
TLA-2735011	1	19	44	27 x 3	350	460	680
TLA-2737011	1	19	44	27 x 3	370	480	690	01038
TLA-2738011	1	19	44	27 x 3	380	490	710
TLA-2740011	1	19	44	27 x 3	400	510	720	19675
TLA-2743011	1	19	44	27 x 3	430	540	750	01116
TLA-2745011	1	19	44	27 x 3	450	560	780
TLA-2747011	1	19	44	27 x 3	470	580	790	01118
TLA-2750011	1	19	44	27 x 3	500	610	830
TLA-2755011	1	19	44	27 x 3	550	660	880
TLA-2757011	1	19	44	27 x 3	570	680	890	01119
TLA-2732012	1 , 2	19 , 25.4	44 , 51	27 x 3	320	430	640	19676
TLA-2735012	1 , 2	19 , 25.4	44 , 51	27 x 3	350	465	700
TLA-2736012	1 , 2	19 , 25.4	44 , 51	27 x 3	360	480	680	00074
TLA-2737012	1 , 2	19 , 25.4	44 , 51	27 x 3	370	485	730
TLA-2738012	1 , 2	19 , 25.4	44 , 51	27 x 3	380	495	745

Swipe horizontally to view all specifications →

Technical specifications

Product specifications 2

Part Number	Cat.	Ball ID ØA (mm)	Ball Length B (mm)	Thread (mm)	Pipe Length C (mm)	Dim. D Min. (mm)	Dim. D Max. (mm)	Ref. Number
TLA-2740012	1 , 2	19 , 25.4	44 , 51	27 x 3	400	515	765
TLA-2743012	1 , 2	19 , 25.4	44 , 51	27 x 3	430	454	795
TLA-2745012	1 , 2	19 , 25.4	44 , 51	27 x 3	450	565	815
TLA-2747012	1 , 2	19 , 25.4	44 , 51	27 x 3	470	585	810	00086
TLA-2750012	1 , 2	19 , 25.4	44 , 51	27 x 3	500	615	865
TLA-2755012	1 , 2	19 , 25.4	44 , 51	27 x 3	550	665	915
TLA-2722022	2	25.4	51	27 x 3	220	340	460	19677
TLA-2727522	2	25.4	51	27 x 3	275	395	575
TLA-2732022	2	25.4	51	27 x 3	320	460	680	01166
TLA-2735022	2	25.4	51	27 x 3	350	470	725
TLA-2737022	2	25.4	51	27 x 3	370	490	765
TLA-2738022	2	25.4	51	27 x 3	380	500	780
TLA-2740022	2	25.4	51	27 x 3	400	520	800
TLA-2743022	2	25.4	51	27 x 3	430	550	780	11066
TLA-2745022	2	25.4	51	27 x 3	450	570	850
TLA-2747022	2	25.4	51	27 x 3	470	590	870
TLA-2750022	2	25.4	51	27 x 3	500	620	850	01916
TLA-2755022	2	25.4	51	27 x 3	550	670	950
TLA-2757022	2	25.4	51	27 x 3	570	690	970
TLA-3035022	2	25.4	51	30 x 3	350	470	720	19678
TLA-3040022	2	25.4	51	30 x 3	400	520	770	19679
TLA-3042022	2	25.4	51	30 x 3	420	540	790	01191
TLA-3046022	2	25.4	51	30 x 3	460	580	830	01257
TLA-3050022	2	25.4	51	30 x 3	500	620	870	19680
TLA-3052022	2	25.4	51	30 x 3	520	640	890	01264
TLA-3056022	2	25.4	51	30 x 3	560	680	930	01265
TLA-3061022	2	25.4	51	30 x 3	610	730	980	01413
TLA-3073022	2	25.4	51	30 x 3	730	850	1100	19681
TLA-3636022	2	25.4	51	36 x 3	360	485	720	03P0195
TLA-3640022	2	25.4	51	36 x 3	400	525	760	03P0200
TLA-3645022	2	25.4	51	36 x 3	450	575	810	03P0203
TLA-3652022	2	25.4	51	36 x 3	520	640	860	03P0205
TLA-3658022	2	25.4	51	36 x 3	580	705	920	03P0210
TLA-3640022A	2	25.4	51	36 x 3	400	555	840	03P0215
TLA-3640023	2 , 3	25.4 , 32	51	36 x 3	400	555	840	03P0220
TLA-3646033	3	32	51	36 x 3	460	615	900	03P0225
TLA-4050022	2	25.4	51	40 x 3	500	635	870	03P0226
TLA-4062022	2	25.4	51	40 x 3	620	755	990	03P0227
TLA-4050033	3	32	51	40 x 3	500	650	970	03P0228
TLA-4062033	3	32	51	40 x 3	620	770	1090	03P0229
TLA-2750022	2	25.4	51	27 x 3	500	620	850	01916
TLA-2755022	2	25.4	51	27 x 3	550	670	950
TLA-2757022	2	25.4	51	27 x 3	570	690	970
TLA-3035022	2	25.4	51	30 x 3	350	470	720	19678
TLA-3040022	2	25.4	51	30 x 3	400	520	770	19679
TLA-3042022	2	25.4	51	30 x 3	420	540	790	01191
TLA-3046022	2	25.4	51	30 x 3	460	580	830	01257
TLA-3050022	2	25.4	51	30 x 3	500	620	870	19680
TLA-3052022	2	25.4	51	30 x 3	520	640	890	01264
TLA-3056022	2	25.4	51	30 x 3	560	680	930	01265
TLA-3061022	2	25.4	51	30 x 3	610	730	980	01413
TLA-3073022	2	25.4	51	30 x 3	730	850	1100	19681
TLA-3636022	2	25.4	51	36 x 3	360	485	720	03P0195
TLA-3640022	2	25.4	51	36 x 3	400	525	760	03P0200
TLA-3645022	2	25.4	51	36 x 3	450	575	810	03P0203
TLA-3652022	2	25.4	51	36 x 3	520	640	860	03P0205
TLA-3658022	2	25.4	51	36 x 3	580	705	920	03P0210
TLA-3640022A	2	25.4	51	36 x 3	400	555	840	03P0215
TLA-3640023	2 , 3	25.4 , 32	51	36 x 3	400	555	840	03P0220
TLA-3646033	3	32	51	36 x 3	460	615	900	03P0225
TLA-4050022	2	25.4	51	40 x 3	500	635	870	03P0226
TLA-4062022	2	25.4	51	40 x 3	620	755	990	03P0227
TLA-4050033	3	32	51	40 x 3	500	650	970	03P0228
TLA-4062033	3	32	51	40 x 3	620	770	1090	03P0229

Swipe horizontally to view all specifications →

Technical specifications

Product specifications 3

Part Number	Cat.	Ball ID ØA (mm)	Ball Length B (mm)	Thread (mm)	Pipe Length C (mm)	Dim. D Min. (mm)	Dim. D Max. (mm)
TLASHD-3636022	2	25.4	51	36X3	360	500	790
TLASHD-3640022	2	25.4	51	36 X 3	400	540	830
TLASHD-3646022	2	25.4	51	36 X 3	460	600	890
TLASHD-3652022	2	25.4	51	36 X 3	520	660	950
TLASHD-3658022	2	25.4	51	36 X 3	580	720	1010
TLASDH-4036033	3	32	51	40 X 3	360	500	790
TLASHD-4040033	3	32	51	40 X 3	400	540	830
TLASHD-4046033	3	32	51	40 X 3	460	600	890
TLASHD-4052033	3	32	51	40 X 3	520	660	950
TLASHD-4058033	3	32	51	40 X 3	580	720	1010

Swipe horizontally to view all specifications →

Technical specifications

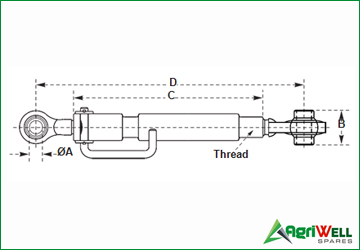

Product specifications 4

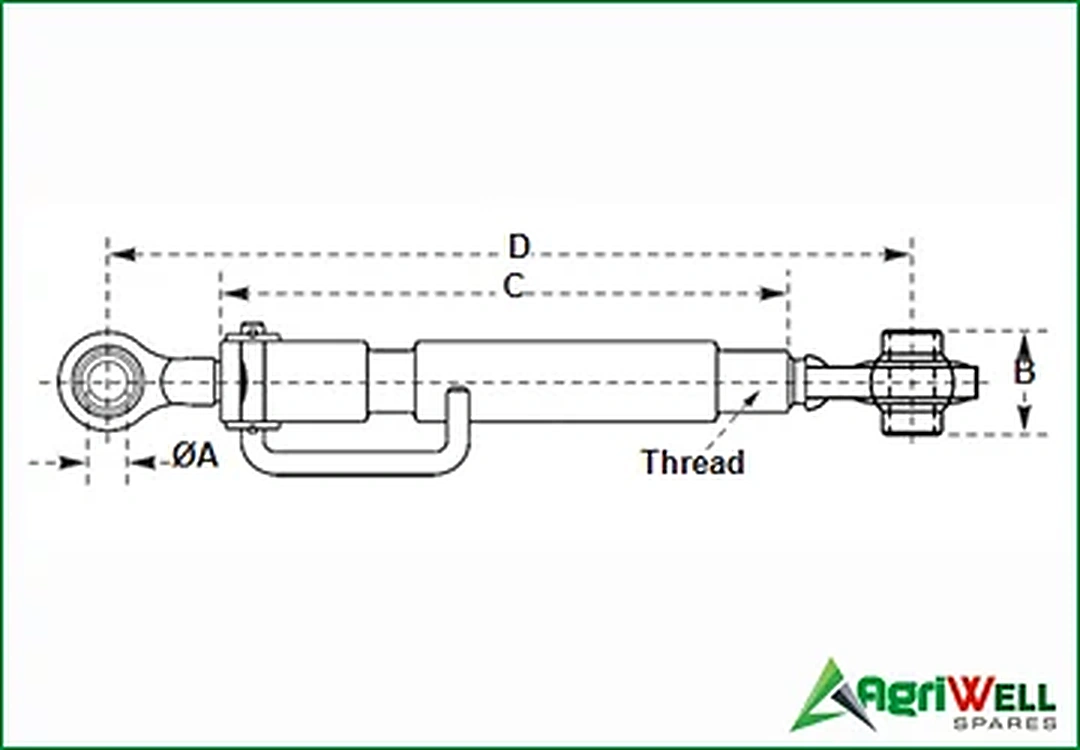

Part Number	Cat.	Ball ID ØA (mm)	Ball Length B (mm)	Thread (inches)	Pipe Length C (mm)	Dim. D Min. (mm)	Dim. D Max. (mm)	Ref. Number

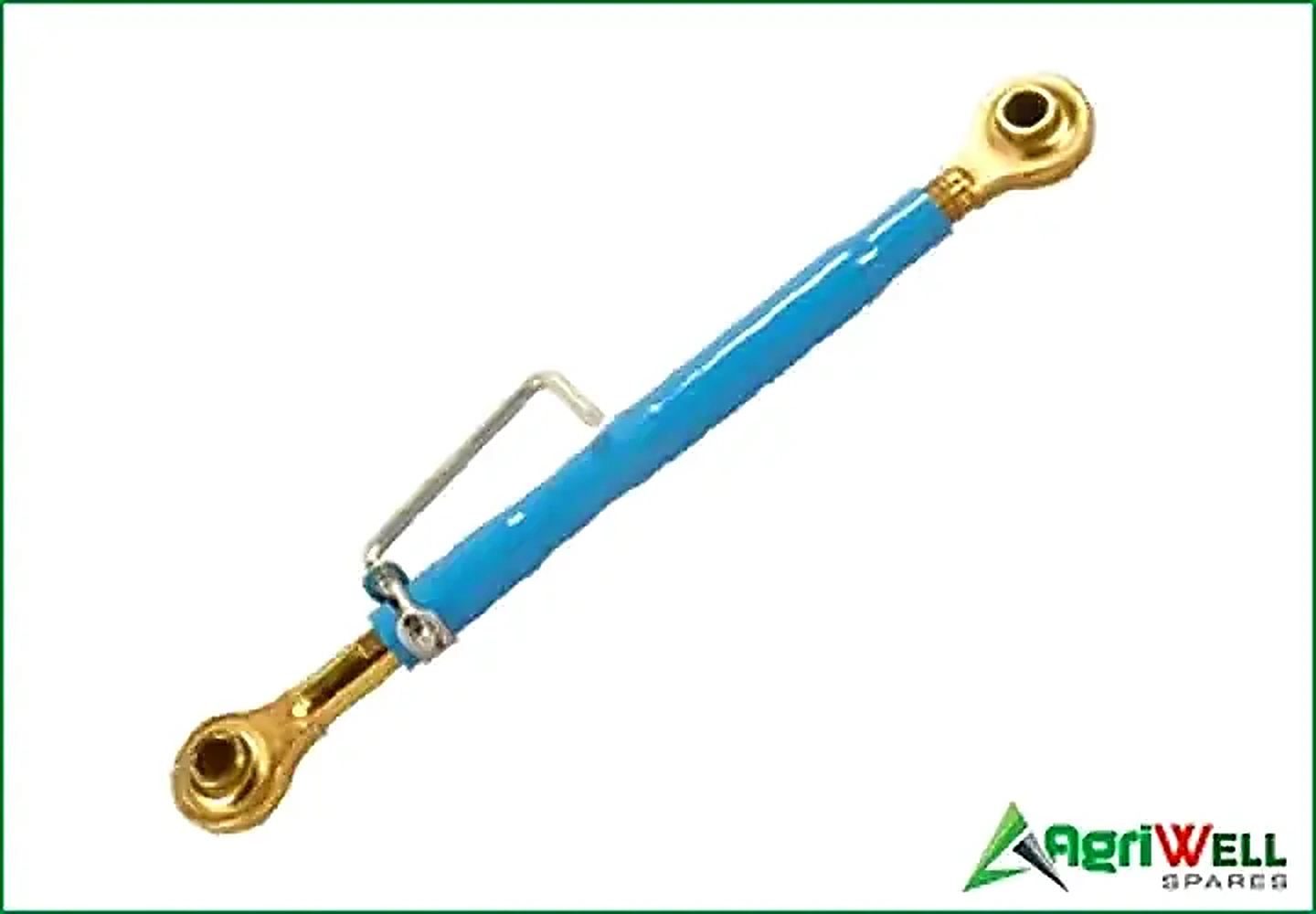

TLAFD-11442511	1	19.05	44	1-1/4" UNC	425	622	794	S-11878
TLAFD-11442512	1 , 2	19.05 , 25.40	44 , 51	1-1/4" UNC	425	622	794	S-3630
TLAFD-11442522	2	25.4	51	1-1/4" UNC	425	622	794	S-3631
TLAFD-11448522	2	25.4	51	1-1/4" UNC	485	685	857	-

Swipe horizontally to view all specifications →

Technical specifications

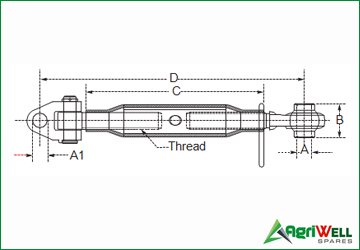

Product specifications 5

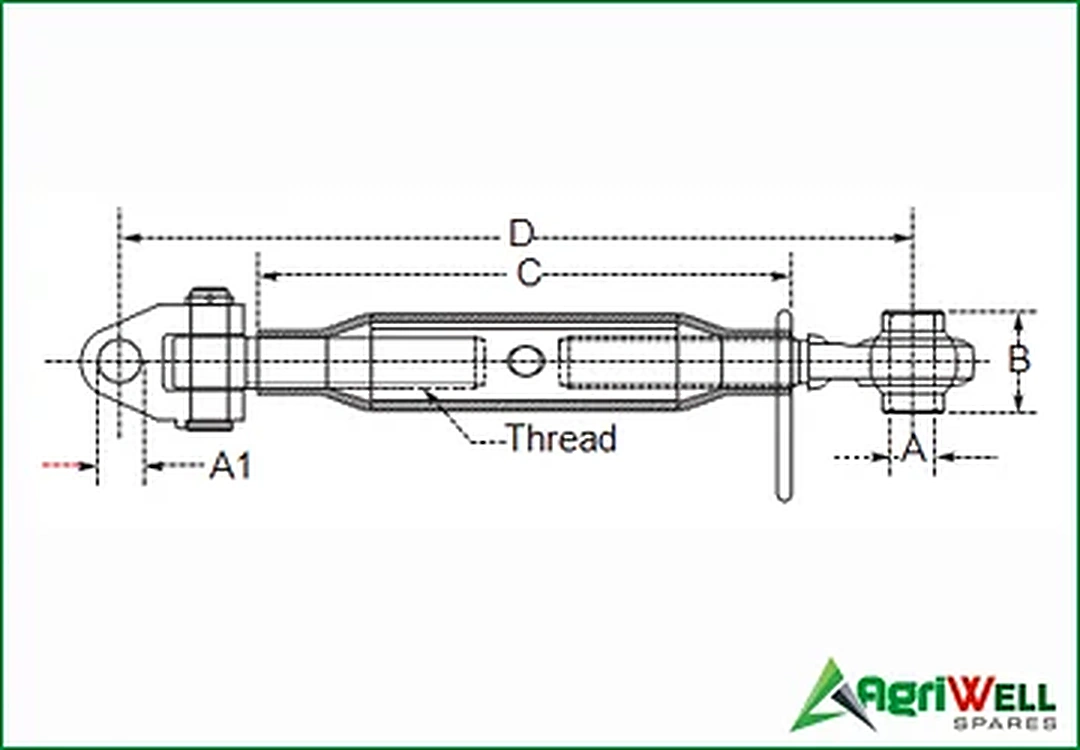

Part Number	Cat.	Dia. ØA1 (mm)	Ball ID ØA (mm)	Ball Length B (mm)	Thread (mm)	Pipe Length C (mm)	Dim. D Min. (mm)	Dim. D Max. (mm)	Ref. Number

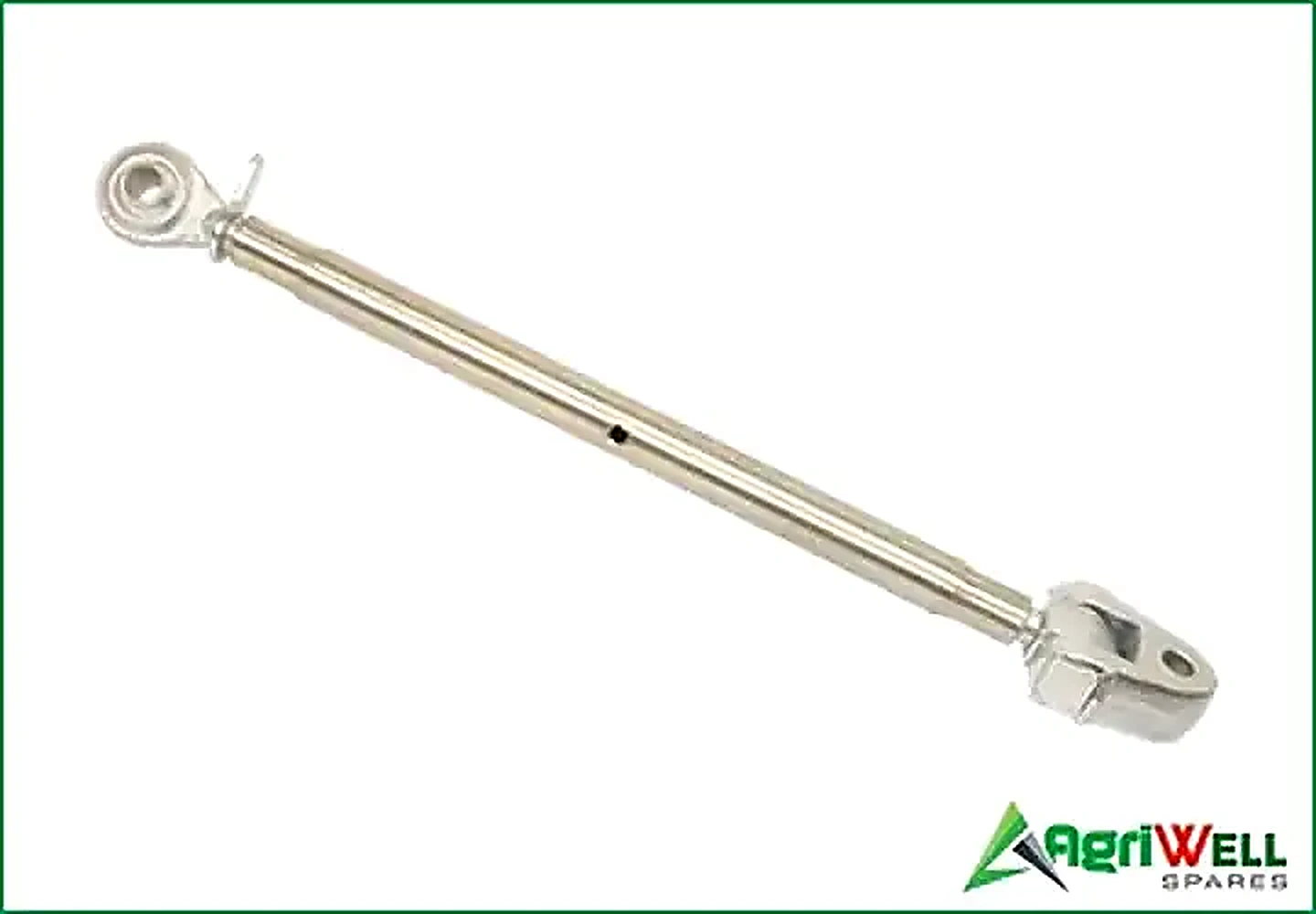

TLAY-3636022	2	25.4	25.4	51	36 X 3	360	535	780	10601
TLAY-3640022	2	25.4	25.4	51	36 X 3	400	575	840	10604
TLAY-3645022	2	25.4	25.4	51	36 X 3	450	625	890	10607
TLAY-3648022	2	25.4	25.4	51	36 X 3	480	655	920	10610
TLAY-3652022	2	25.4	25.4	51	36 X 3	520	695	960	10613
TLAY-3658022	2	25.4	25.4	51	36 X 3	580	755	1020	10616
TLAY-3636023	2 , 3	25.4	32	51	36 X 3	360	535	780	10602
TLAY-3640023	2 , 3	25.4	32	51	36 X 3	400	575	840	10605
TLAY-3645023	2 , 3	25.4	32	51	36 X 3	450	625	890	10608
TLAY-3648023	2 , 3	25.4	32	51	36 X 3	480	655	920	10611
TLAY-3652023	2 , 3	25.4	32	51	36 X 3	520	695	960	10614
TLAY-3658023	2 , 3	25.4	32	51	36 X 3	580	755	1020	10617
TLAY-3636033	3	32	32	51	36 X 3	360	535	780	10603
TLAY-3640033	3	32	32	51	36 X 3	400	575	840	10606
TLAY-3645033	3	32	32	51	36 X 3	450	625	890	10609
TLAY-3648033	3	32	32	51	36 X 3	480	655	920	10612
TLAY-3652033	3	32	32	51	36 X 3	520	695	960	10615
TLAY-3658033	3	32	32	51	36 X 3	580	755	1020	10618

Swipe horizontally to view all specifications →

Technical specifications

Product specifications 6

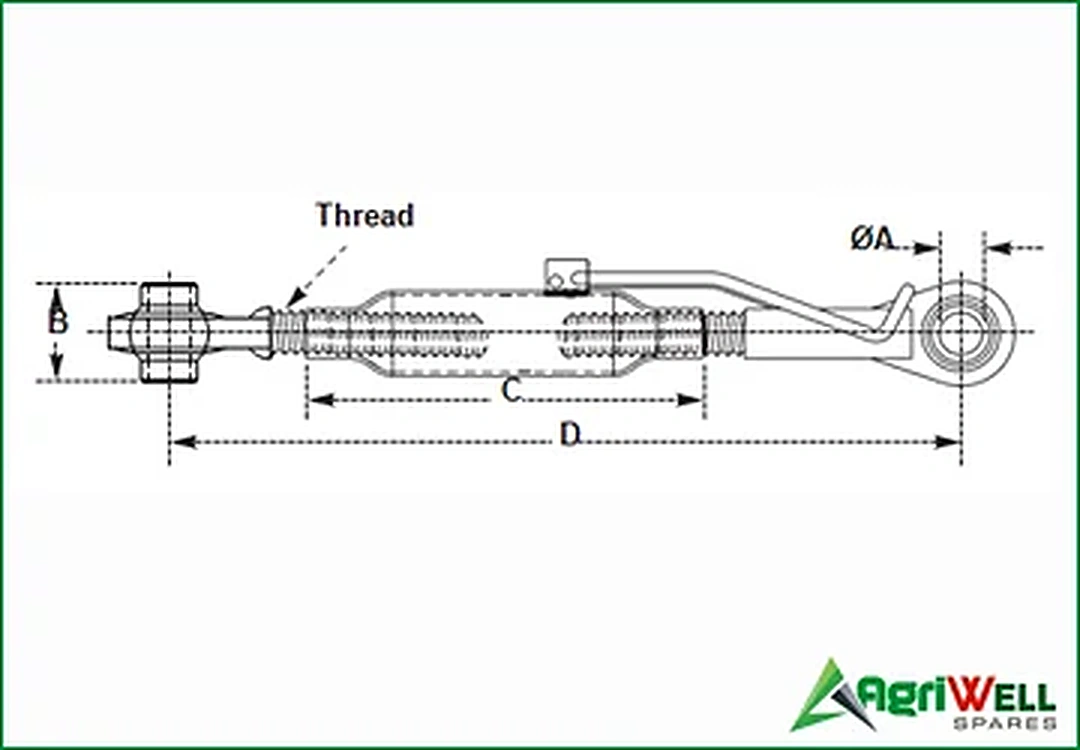

Part Number	Ball ID ØA (mm)	Ball Length B (mm)	Thread (inches)	Pipe Length C (mm)	Dim. D Min. (mm)	Dim. D Max. (mm)	Ref. Number

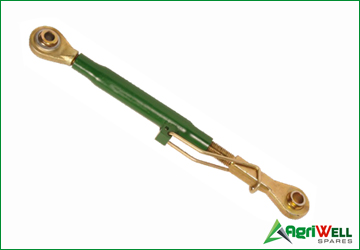

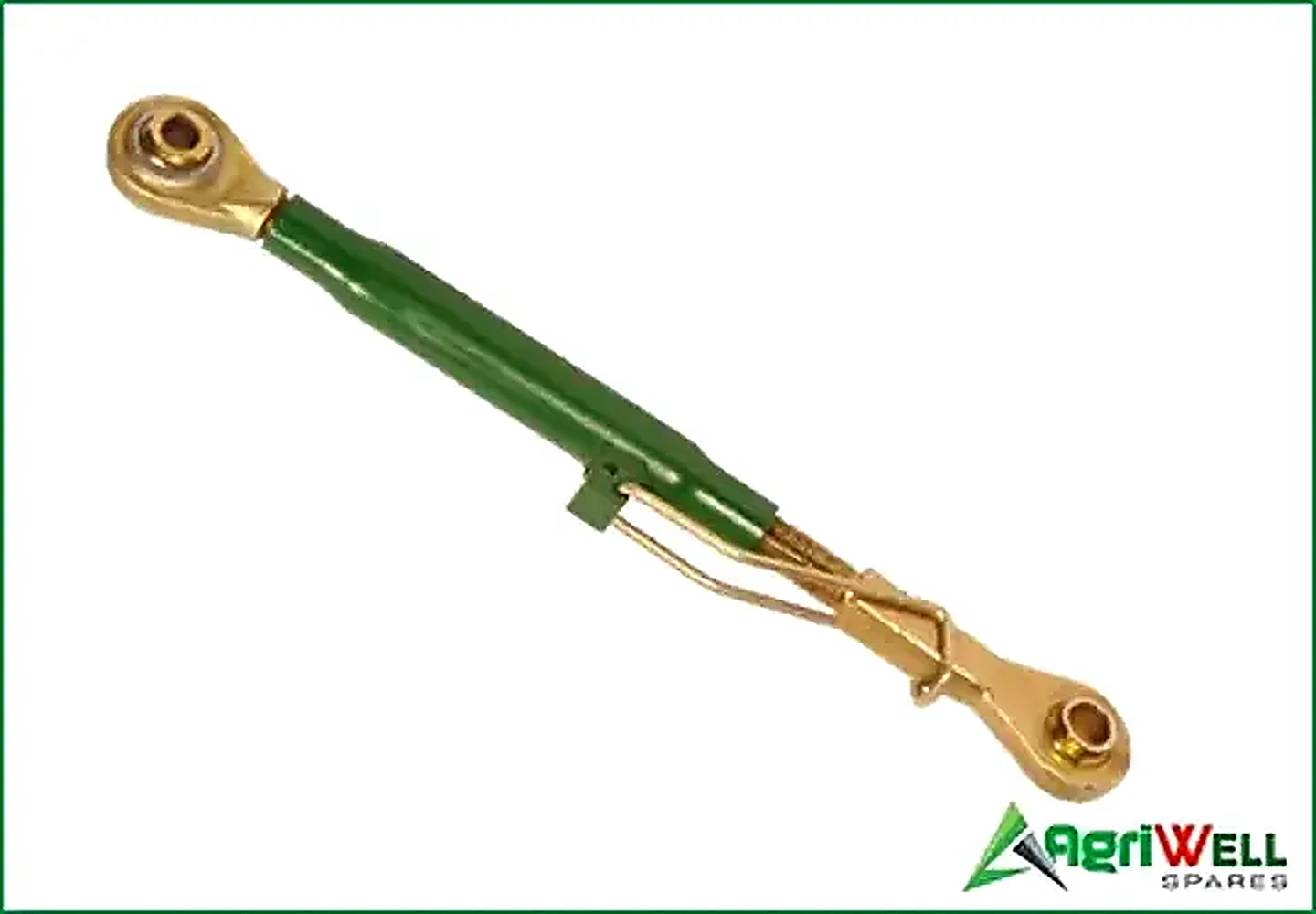

TLAJD-11832012	20 , 25.40	44 , 51	1-1/8" UNC	320	550	760	S-4261

Swipe horizontally to view all specifications →

Technical specifications

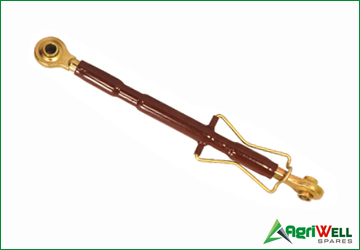

Product specifications 7

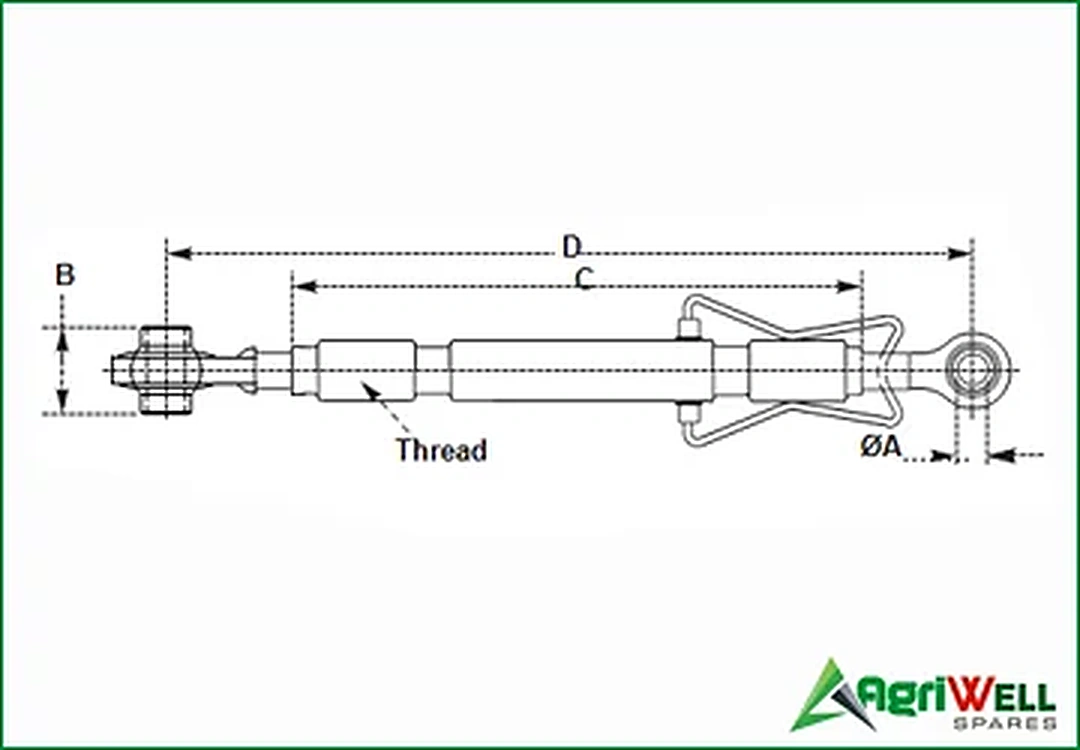

Part Number	Cat.	Ball ID ØA (mm)	Ball Length B (mm)	Thread (inches)	Pipe Length C (mm)	Dim. D Min. (mm)	Dim. D Max. (mm)	Ref. Number
TLAMF-111643811	1	19.05	44	1-1/16"UNF	438	590	750	S-584
TLAMF-111647611	1	19.05	44	1-1/16"UNF	476	610	770	S-585
TLAMF-111654611	1	19.05	44	1-1/16"UNF	546	670	830	S-586
TLAMF-111654622	2	25.4	51	1-1/16"UNF	546	670	830	S-587
TLAMF-111654612	1 , 2	19.05 , 25.40	44 , 51	1-1/16"UNF	546	670	830	S-588
TLAMF-111647612	1 , 2	19.05 , 25.40	44 , 51	1-1/16"UNF	476	610	770	S-589
TLAMF-111647622	2	25.4	51	1-1/16"UNF	476	610	770	S-16066
TLAMF-111643812	1 , 2	19.05 , 25.40	44 , 51	1-1/16"UNF	438	590	750	S-16521
TLAMF-111643822	2	25.4	51	1-1/16"UNF	438	590	750	S-16522

Swipe horizontally to view all specifications →

Technical specifications

Product specifications 8

Part Number	Cat.	Ball ID ØA (mm)	Ball Length B (mm)	Thread (inches)	Pipe Length C (mm)	Dim. D Min. (mm)	Dim. D Max. (mm)	Ref. Number
TLAMF-11452722	2	25.4	51	1-1/14"UNC	527	680	870	S-15347

Swipe horizontally to view all specifications →

Technical specifications

Product specifications 9

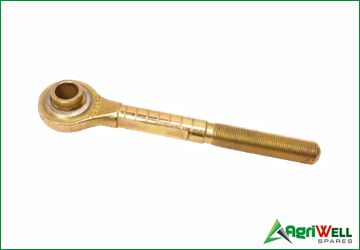

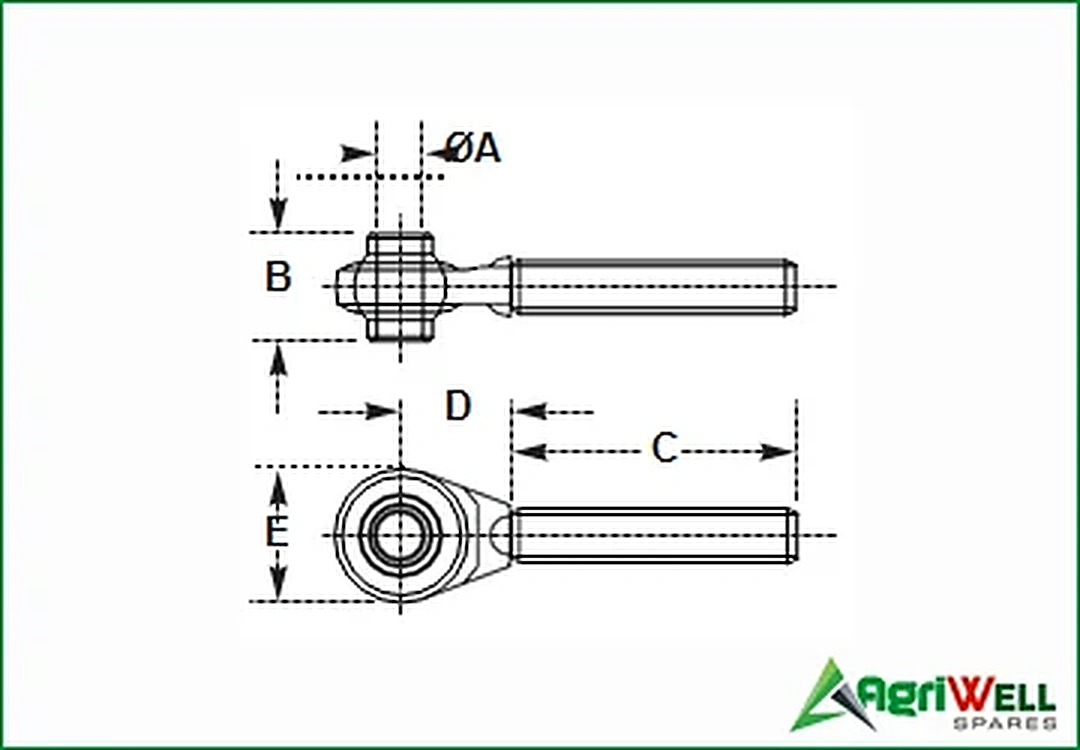

Part Number	Cat.	Ball ID ØA (mm)	Ball Length B (mm)	Thread (inches)	Dim. C (mm)	Dim. D (mm)	Dim. E (mm)

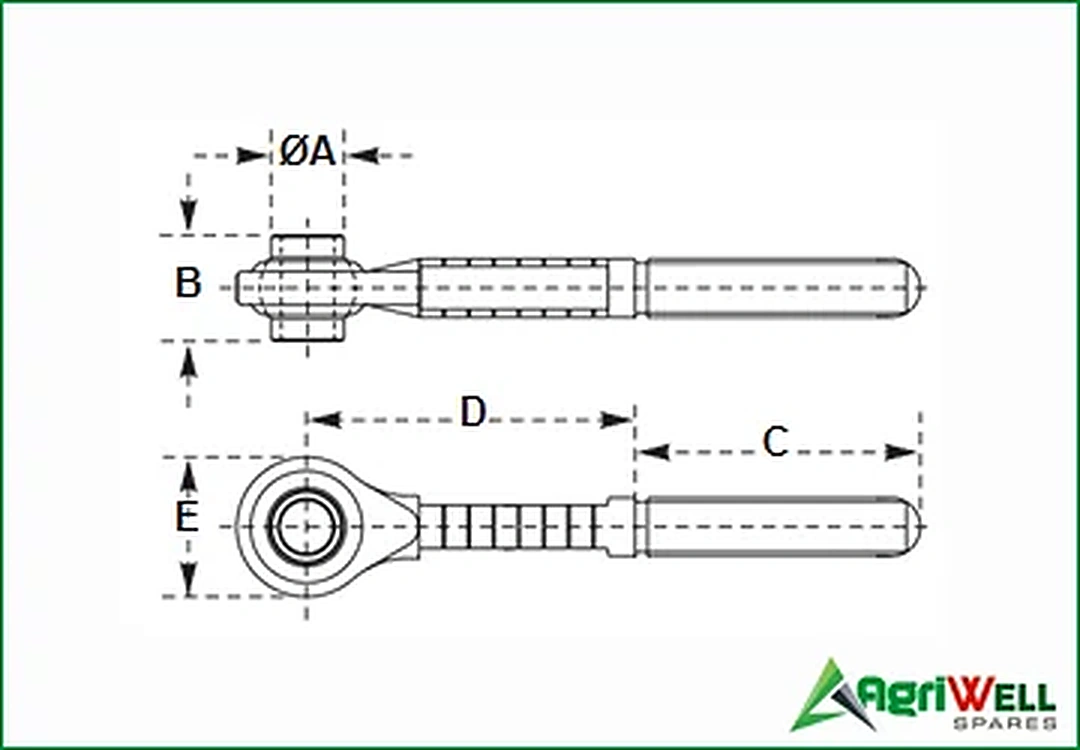

TLEBMF-R1161281	1	19	44	1-1/16" - R	128	167	66
TLEBMF-L1161281	1	19	44	1-1/16" - L	128	167	58
TLEBMF-R1161282	2	25.4	51	1-1/16" - R	128	167	66
TLEBMF-L1161282	2	25.4	51	1-1/16" - L	128	167	58

Swipe horizontally to view all specifications →

Technical specifications

Product specifications 10

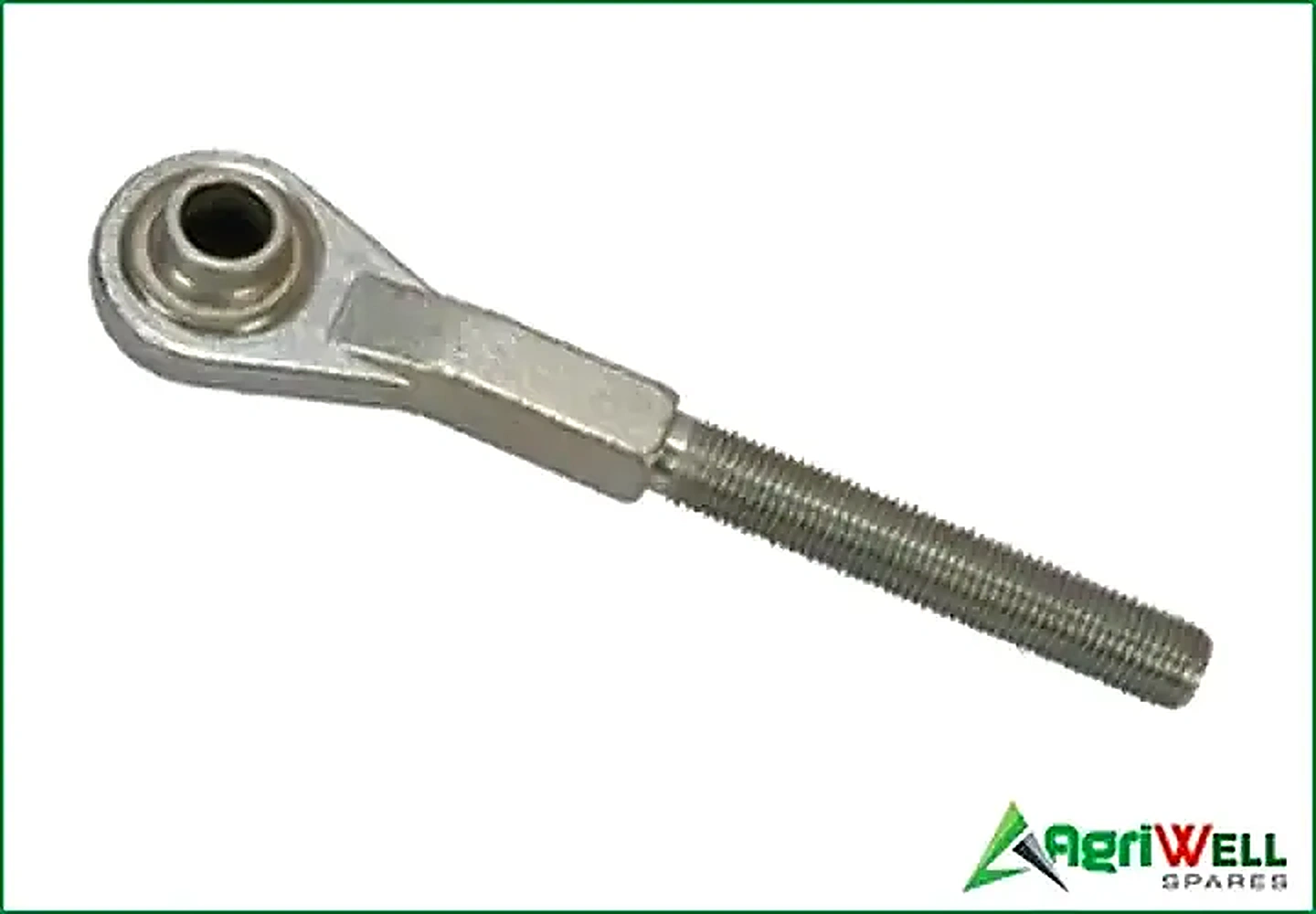

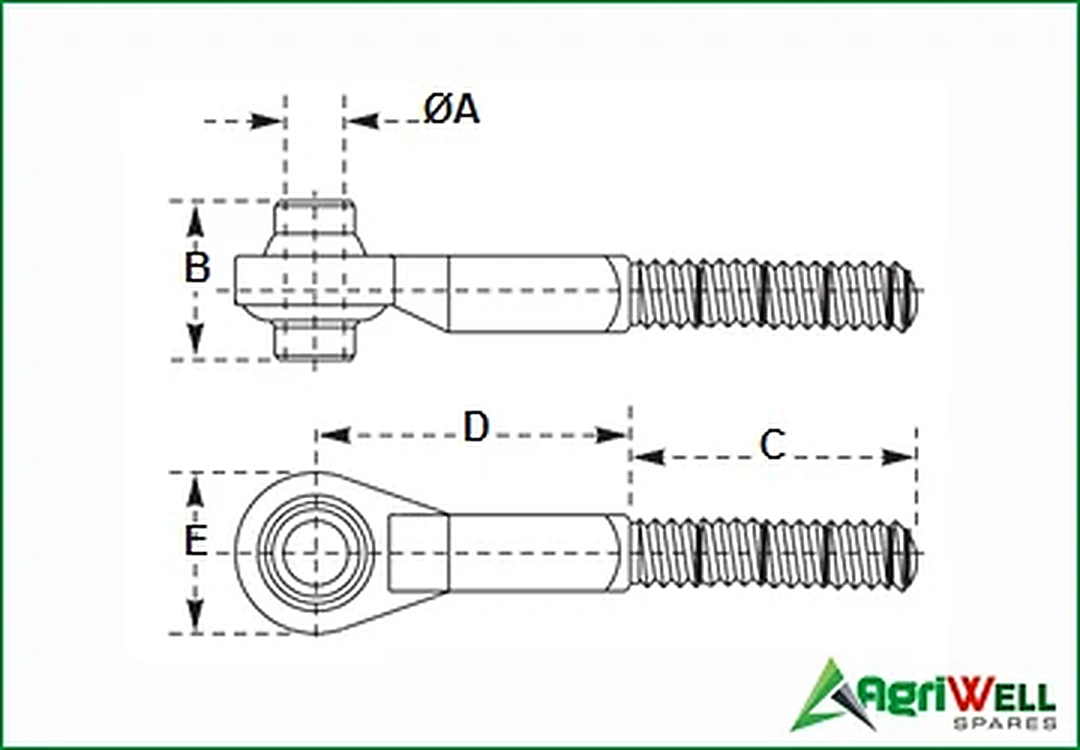

Part Number	Cat.	Ball ID ØA (mm)	Ball Length B (mm)	Thread	Dim. C (mm)	Dim. D (mm)	Dim. E (mm)
TLEBJD-R1181752	2	25.4	51	1-1/8" UNC - R	175	162	70
TLEBJD-L1181901	1	20	44	1-1/8" UNC - L	190	56	66
TLEBJD-R271752	2	25.4	51	M 27 X 3 R	175	162	70
TLEBJD-L271901	1	20	44	M 27 X 3 L	190	56	66

Swipe horizontally to view all specifications →

Technical specifications

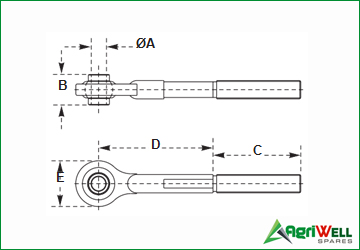

Product specifications 11

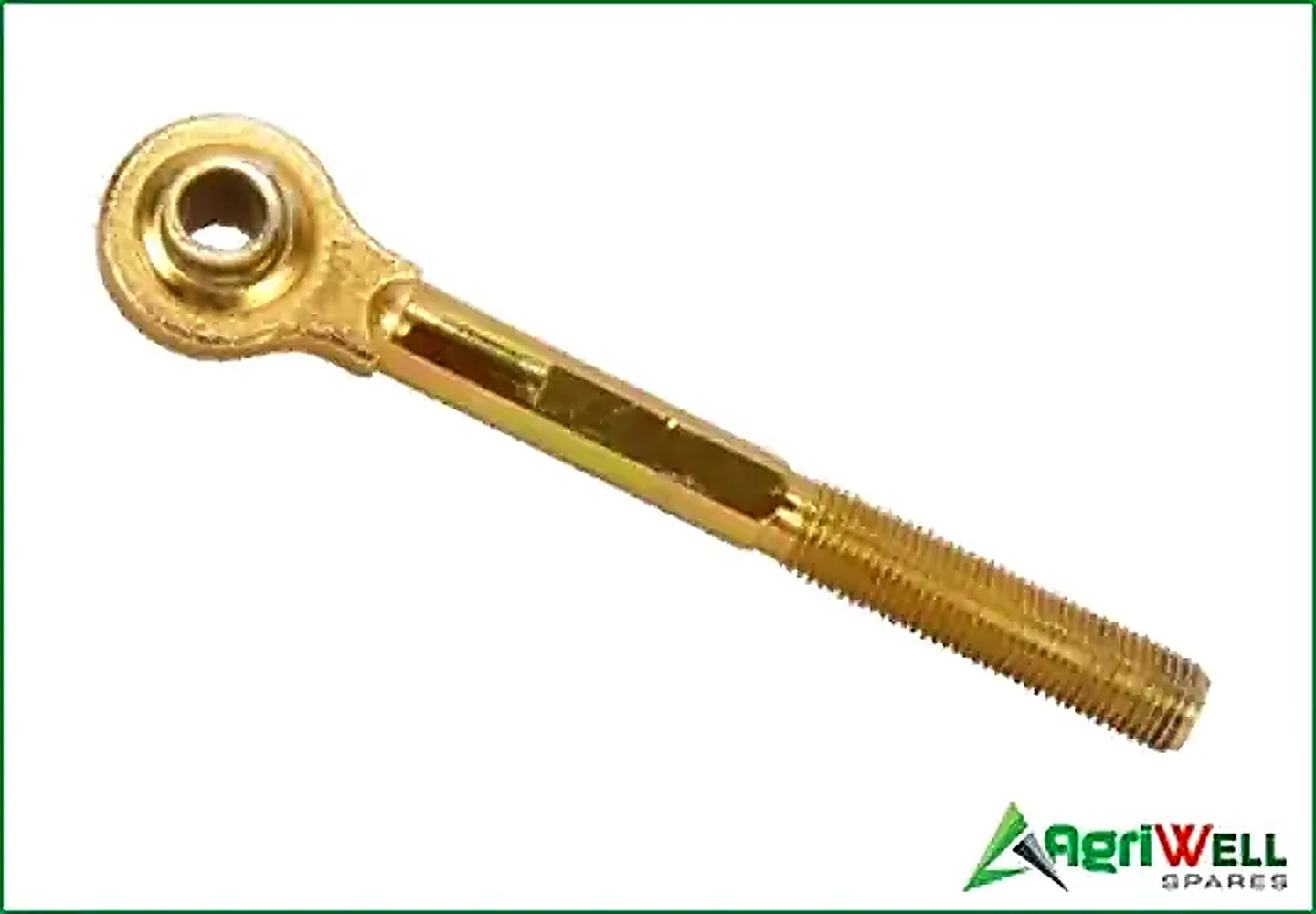

Part Number	Cat.	Ball ID ØA (mm)	Ball Length B (mm)	Thread (inches)	Dim. C (mm)	Dim. D (mm)	Dim. E (mm)
TLEBFD-L1141281	1	19	44	1-1/4" UNF - L	128	208	58
TLEBFD-L1141282	2	25.4	51	1-1/4" UNF - L	128	208	76
TLEBFD-R1141682	2	25.4	51	1-1/4" UNF - R	168	86	76

Swipe horizontally to view all specifications →

Technical specifications

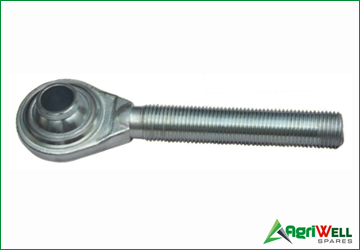

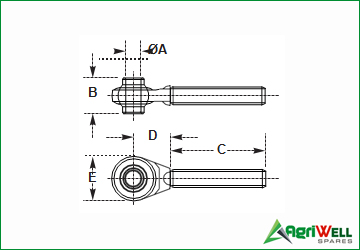

Product specifications 12

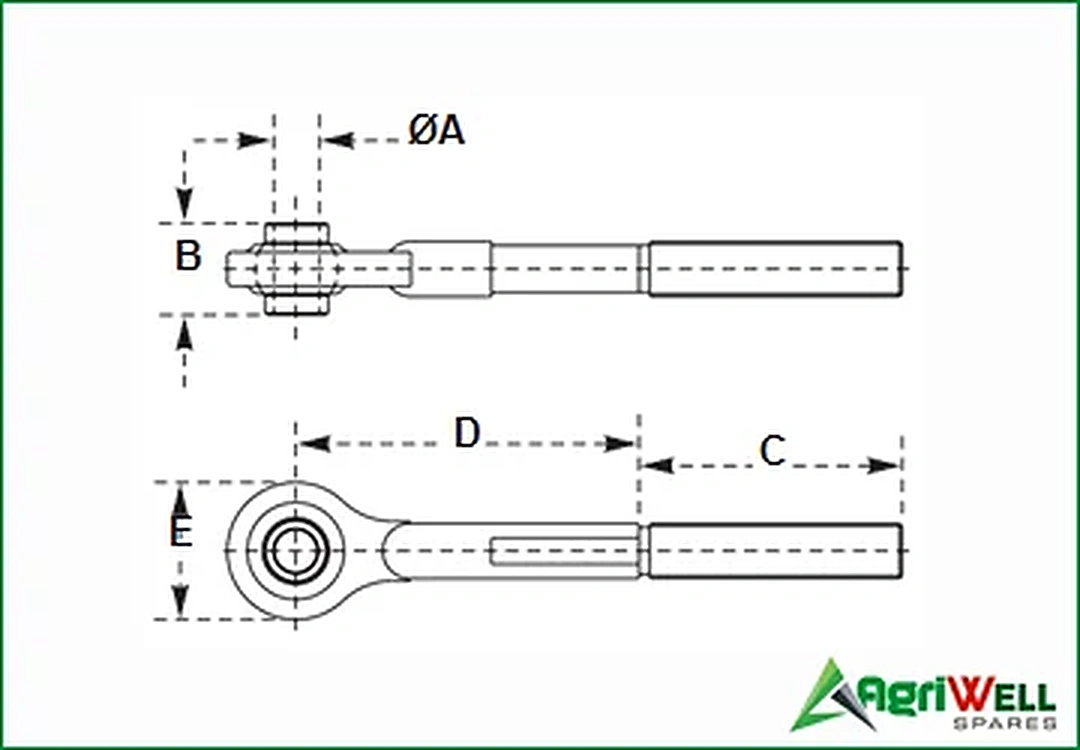

Part Number	Cat.	Ball ID ØA (mm)	Ball Length B (mm)	Thread (mm)	Dim. C (mm)	Dim. D (mm)	Dim. E (mm)	Ball OD (mm.)	Ref. Number

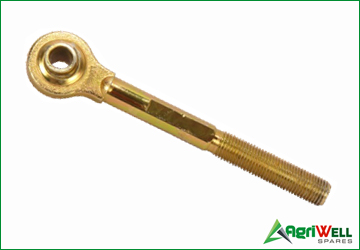

TLEB-L221251	1	19	44	22 X 2.5 L	125	45	52	38	03412
TLEB-R241151	1	19	44	24 X 2.5 R	115	50	62	38	03415
TLEB-L241151	1	19	44	24 X 2.5 L	115	50	62	38	03416
TLEB-R24127	-	22.1	35	24 X 3 R	127	45	62	44	18753
TLEB-R241551	1	19.2	44	24 X 3 R	155	50	62	38	18756
TLEB-L241551	1	19.2	44	24 X 3 L	155	50	62	38	18757
TLEB-2416512	1 , 2	19.2 , 25.4	45	24 X 3 R	165	58	80	54	18754
TLEB-L2416512	1 , 2	19.2 , 25.4	45	24 X 3 L	165	58	80	54	18755
TLEB-R27180	-	28.2	45	27 X 3 R	180	62	80	58	18758
TLEB-R271551	1	19	44	27 X 3 R	155	50	62	38	03419
TLEB-L271551	1	19	44	27 X 3 L	155	50	62	38	03420
TLEB-R270902	2	25.4	51	27 X 3 R	90	55	75	50	35699
TLEB-L270902	2	25.4	51	27 X 3 L	90	55	75	50	35700
TLEB-R271702	2	25.4	51	27 X 3 R	170	55	75	50	03423
TLEB-L271702	2	25.4	51	27 X 3 L	170	55	75	50	03424
TLEB-R272202	2	25.4	51	27 X 3 R	220	45	70	50	18765
TLEB-L272202	2	25.4	51	27 X 3 L	220	45	70	50	18766
TLEB-R301751	1	19.2	44	30 X 3 R	175	50	62	38	18759
TLEB-L301751	1	19.2	44	30 X 3 L	175	50	62	38	18760
TLEB-R301652	2	25.4	51	30 X 3 R	165	55	75	50	03427
TLEB-L301652	2	25.4	51	30 X 3 L	165	55	75	50	03428
TLEB-R302002	2	25.4	51	30 X 3 R	200	50	75	50	18767
TLEB-L302002	2	25.4	51	30 X 3 L	200	50	75	50	18768
TLEB-R30175	-	20.2	44	30 X 3.5 R	175	50	62	42	18763
TLEB-L30175	-	20.2	44	30 X 3.5 L	175	50	62	42	18764
TLEB-R30165	-	22.1	51	30 X 3.5 R	165	55	75	50	18771
TLEB-L30165	-	22.1	51	30 X 3.5 L	165	55	75	50	18772
TLEB-R301751	1	19.2	44	30 X 3.5 R	175	50	62	38	18761

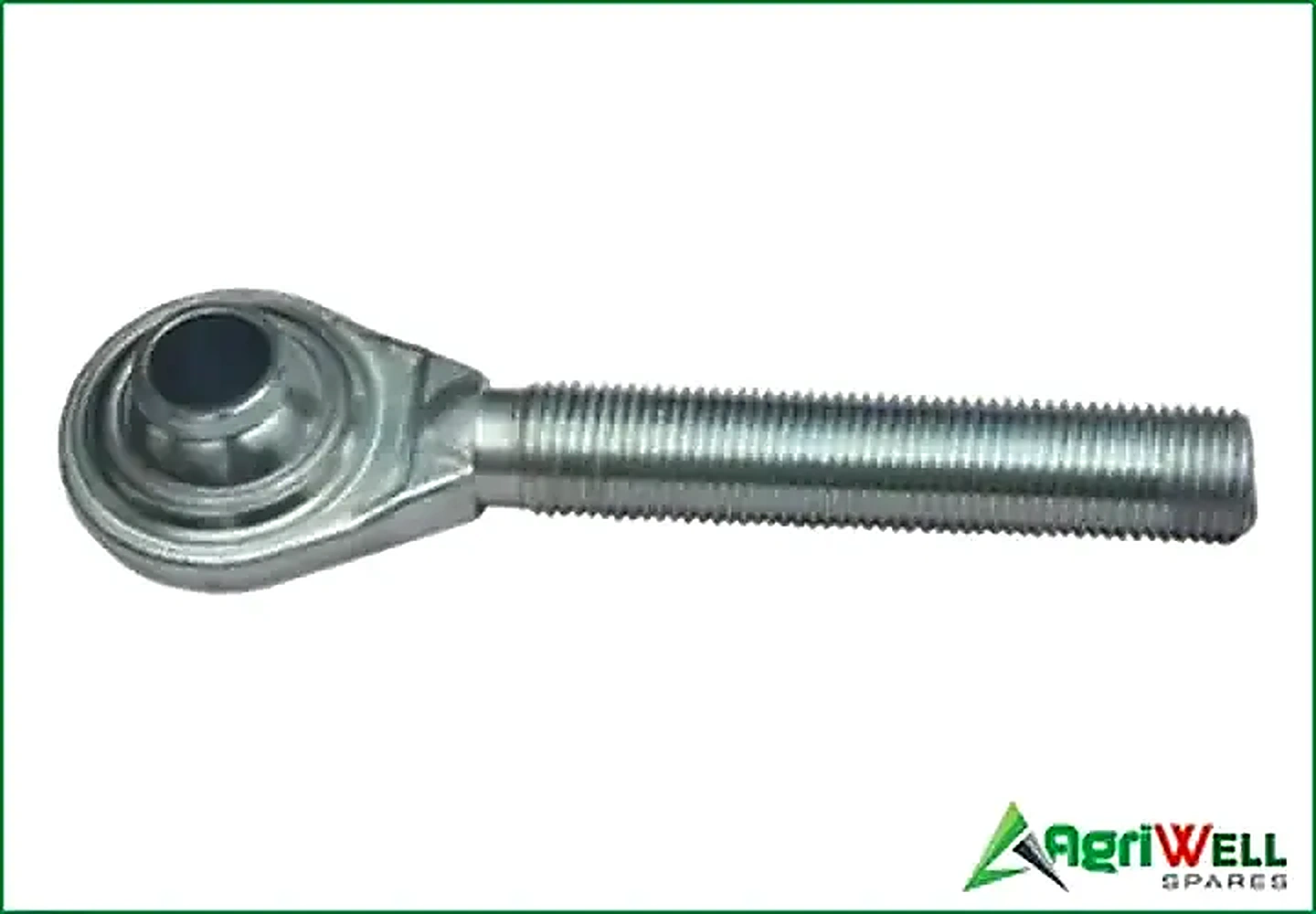

TLEB-L301751	1	19.2	44	30 X 3.5 L	175	50	62	38	18762
TLEB-R301652	2	25.4	51	30 X 3.5 R	165	55	75	50	18769
TLEB-L301652	2	25.4	51	30 X 3.5 L	165	55	75	50	18770
TLEB-R361652	2	25.4	51	36 X 3 R	165	55	80	54	03437
TLEB-L361652	2	25.4	51	36 X 3 L	165	55	80	54	03438
TLEB-R362002	2	25.4	51	36 X 3 R	200	70	96	62	03489
TLEB-L362002	2	25.4	51	36 X 3 L	200	70	96	62	03488
TLEB-R401752	2	25.4	51	40 X 3 R	175	60	80	50	03439
TLEB-L401752	2	25.4	51	40 X 3 L	175	60	80	50	03440
TLEB-R362003	3	32	51	36 X 3 R	200	70	96	62	02698
TLEB-L362003	3	32	51	36 X 3 L	200	70	96	62	02699
TLEB-R402003	3	32	51	40 X 3 R	200	70	96	62	09324
TLEB-L402003	3	32	51	40 X 3 L	200	70	96	62	09325

Swipe horizontally to view all specifications →

Technical specifications

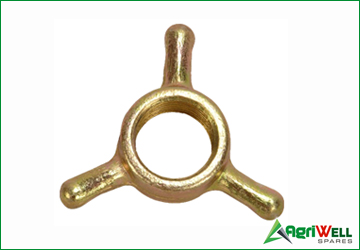

Product specifications 13

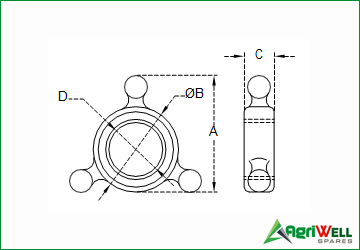

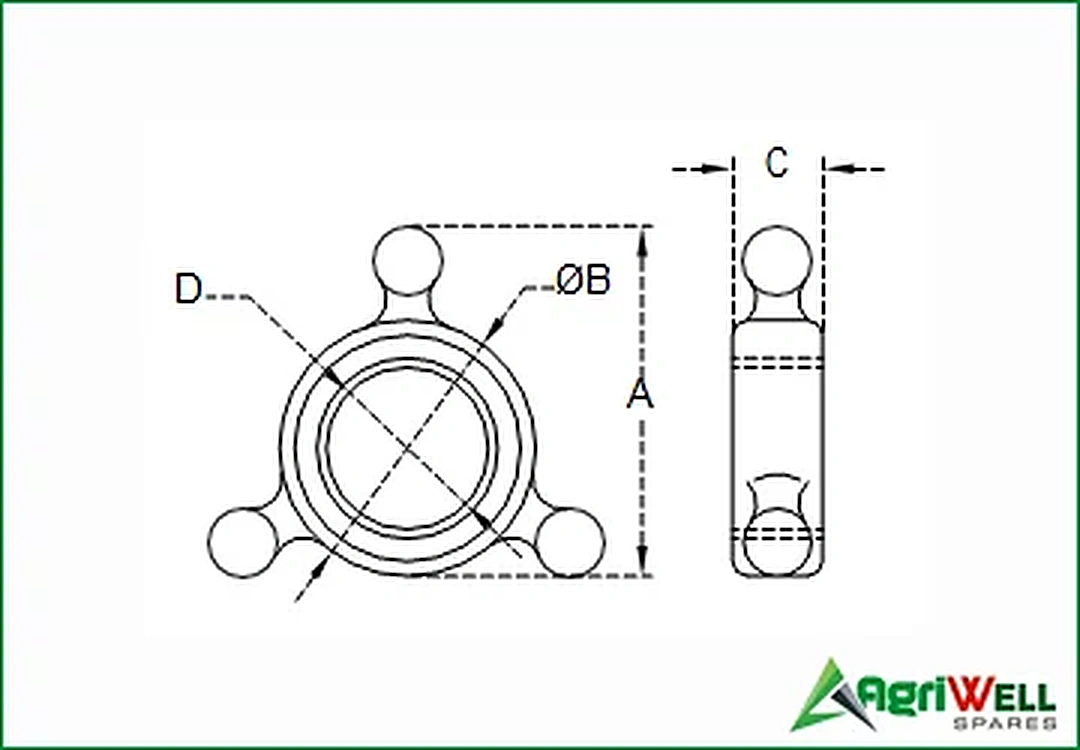

Part Number	Dim. A (mm)	Dia. ØB (mm)	Dim. C (mm)	Thread Size ØD (mm)	Ref. Number
TLLCF-2225	25	34	12	22X2.5	11879
TLLCF-2425	25	34	12	24X25	04155
TLLCF-2430	25	34	12	24X3	18780
TLLCF-2730	40	40	18	27X3	04156
TLLCF-3030	40	40	18	30X3	04157
TLLCF-3035	40	40	18	30X3.5	18781
TLLCF-3630	48	48	23	36X3	18782
TLLCF-4030	50	54	28	40X3	18783

Swipe horizontally to view all specifications →

Technical specifications

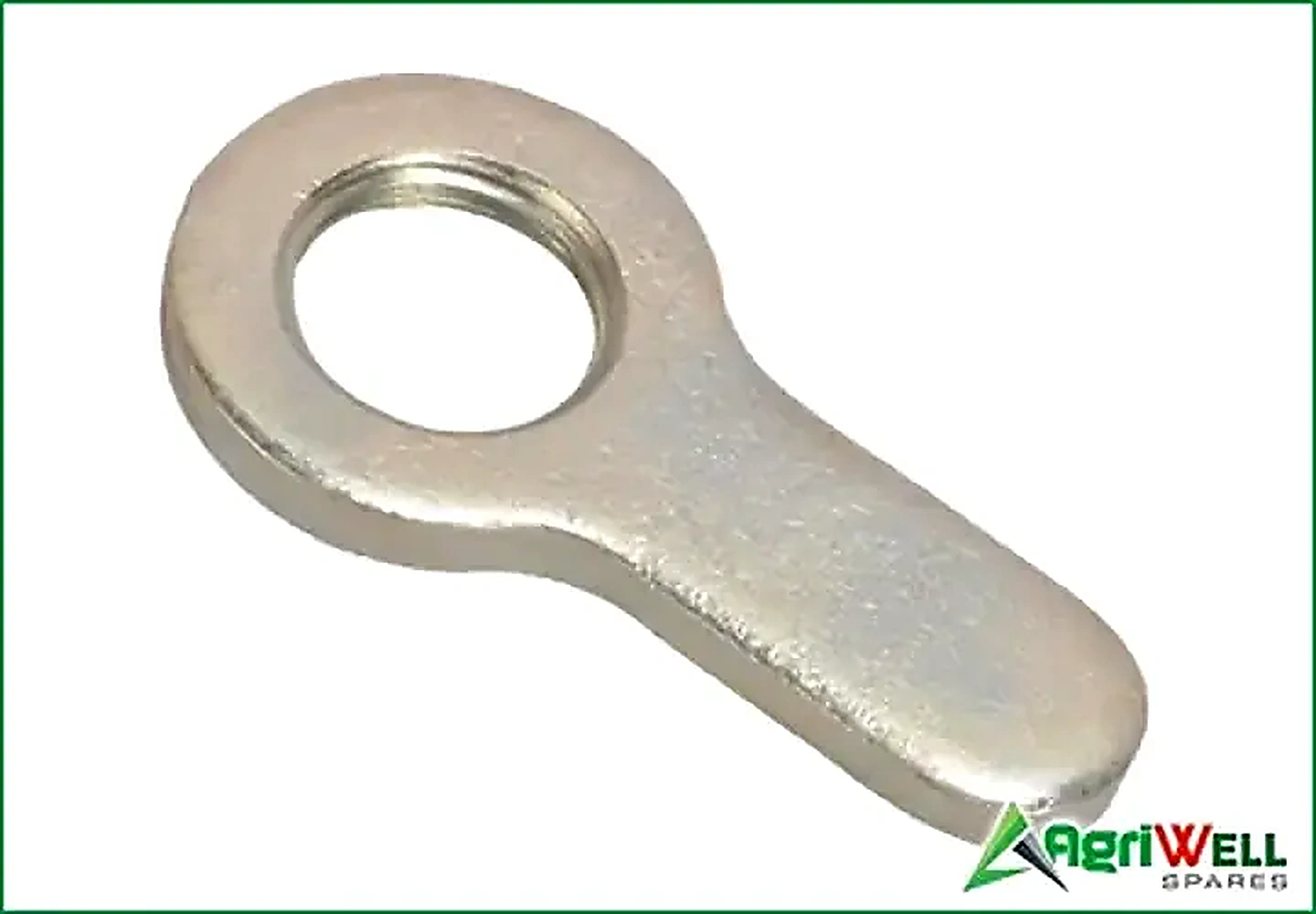

Product specifications 14

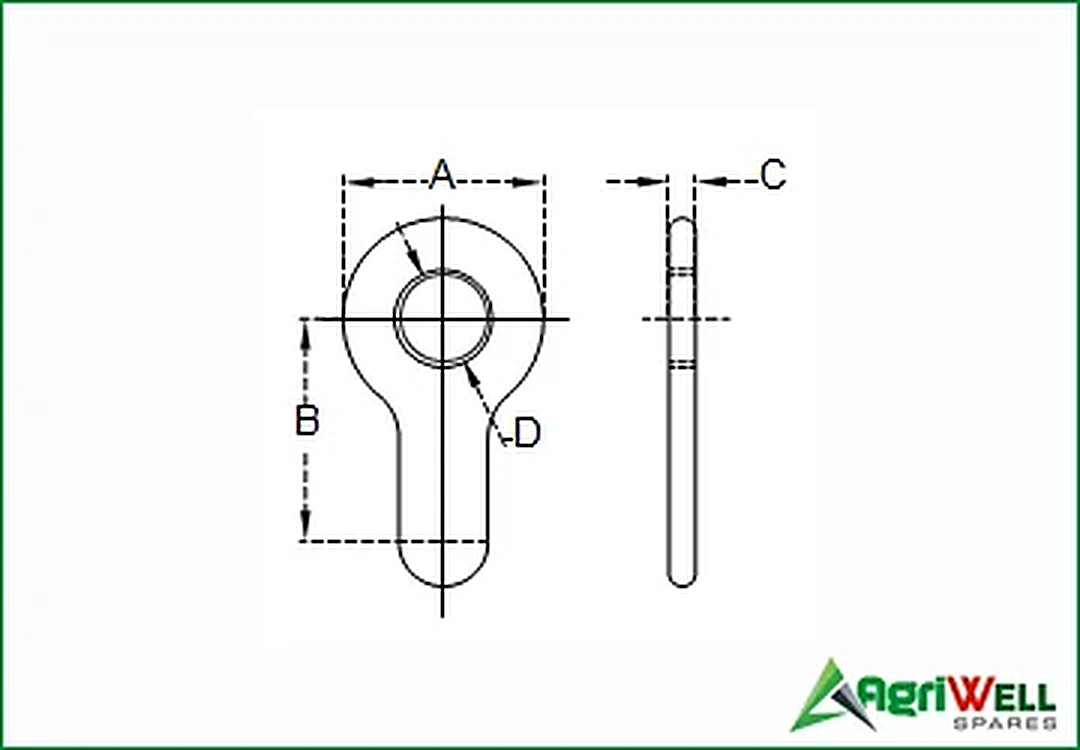

Part Number	Dim. A (mm)	Dim. B (mm)	Dim. C (mm)	Thread Size ØD (mm)	Ref. Number
TLLCS-2225	45	60	6	22X2.5	04177
TLLCS-2425	45	60	6	24X2.5	04153
TLLCS-2430	45	60	6	24X3	18777
TLLCS-2730	45	60	6	27X3	04154
TLLCS-3030	45	60	6	30X3	04160
TLLCS-3035	45	60	6	30X3.5	18778
TLLCS-3630	60	88	10	36X3	04178
TLLCS-4030	60	88	10	40X3	04184

Swipe horizontally to view all specifications →
