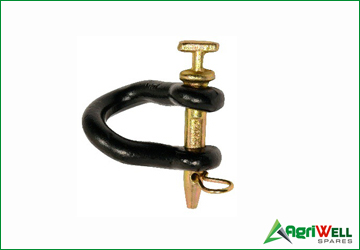

TWISTED CLEVISES
Precision agricultural component
TWISTED CLEVISES
Manufactured for reliable performance across agricultural and industrial applications. Contact AgriWell for drawings, quantities, finishes and OEM requirements.
Discuss this product →Technical specifications
Product specifications

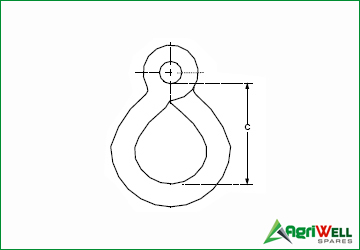

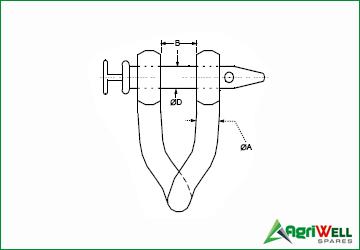

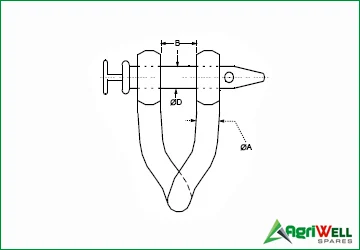

| AgriWellPart No. | ReferenceNumber | Popular Code | Body Dia ØA (Inches) | Clevis Opening B (Inches) | Usable Length C (Inches) | Pin Dia ØD (Inches) | Working Load Limit (lbs.) | Package Qty. | Weight (lbs.) |
|---|---|---|---|---|---|---|---|---|---|
| AWTWCS9571 | 87299571 | CL490203 | 5/8n | 7/8n | 3n | 1/2n | 6,000 | 1 | 1.50 |
| AWTWCS9572 | 87299572 | CL490204 | 3/4n | 1-5/16n | 3-1/2n | 5/8n | 12,000 | 1 | 2.50 |
| AWTWCS9573 | 87299573 | CL490205 | 7/8n | 1-5/16n | 3n | 3/4n | 16,000 | 1 | 3.00 |
| AWTWCS9574 | 87299574 | CL490206 | 7/8n | 1-5/16n | 3-7/8n | 3/4n | 16,000 | 1 | 3.60 |
| AWTWCS9575 | 87299575 | CL490207 | 15/16n | 1-7/16n | 4-1/4n | 7/8n | 20,000 | 1 | 4.30 |
| AWTWCS9576 | 87299576 | CL490208 | 1n | 2-1/8n | 5n | 1n | 25,000 | 1 | 5.80 |
Swipe horizontally to view all specifications →
