TOP LINK ENDS
Precision agricultural component
TOP LINK ENDS
Manufactured for reliable performance across agricultural and industrial applications. Contact AgriWell for drawings, quantities, finishes and OEM requirements.
Discuss this product →Technical specifications

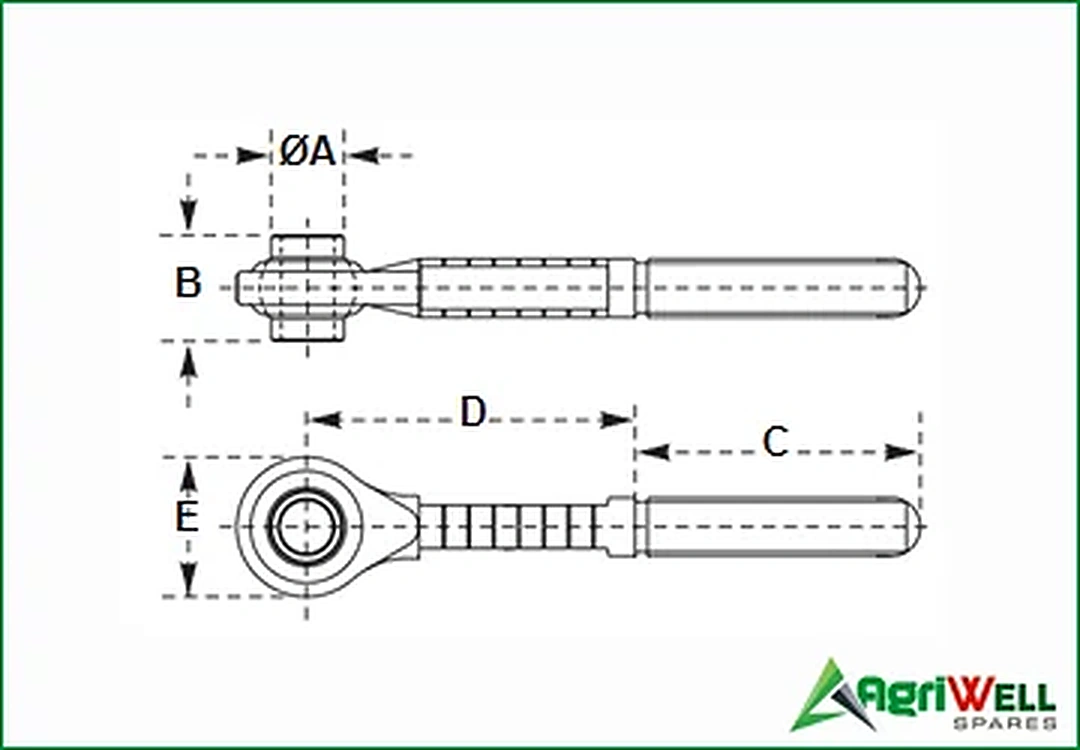

Product specifications
| Part Number | Cat. | Ball ID ØA (mm) | Ball Length B (mm) | Thread (inches) | Dim. C (mm) | Dim. D (mm) | Dim. E (mm) |
|---|---|---|---|---|---|---|---|
| TLEBMF-R1161281 | 1 | 19 | 44 | 1-1/16" - R | 128 | 167 | 66 |
| TLEBMF-L1161281 | 1 | 19 | 44 | 1-1/16" - L | 128 | 167 | 58 |
| TLEBMF-R1161282 | 2 | 25.4 | 51 | 1-1/16" - R | 128 | 167 | 66 |
| TLEBMF-L1161282 | 2 | 25.4 | 51 | 1-1/16" - L | 128 | 167 | 58 |
Swipe horizontally to view all specifications →
Technical specifications

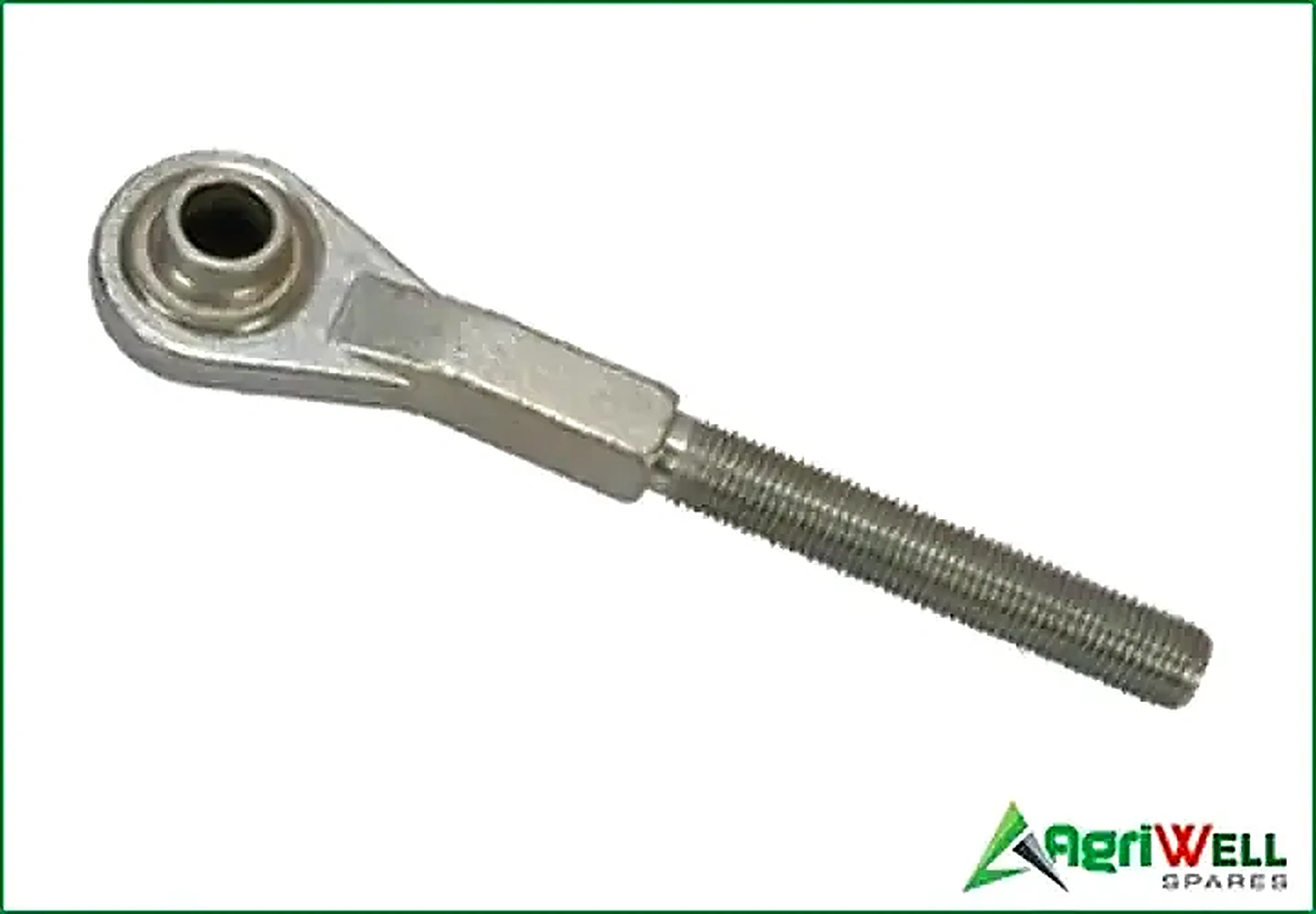

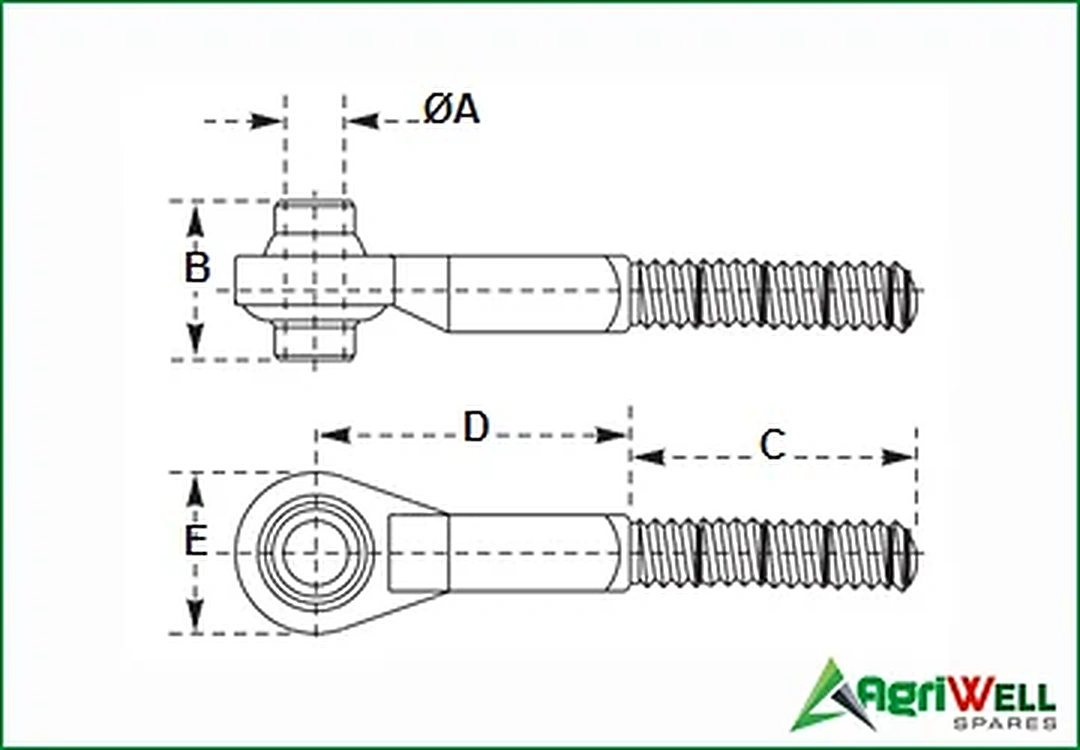

Product specifications 2
| Part Number | Cat. | Ball ID ØA (mm) | Ball Length B (mm) | Thread | Dim. C (mm) | Dim. D (mm) | Dim. E (mm) |
|---|---|---|---|---|---|---|---|
| TLEBJD-R1181752 | 2 | 25.4 | 51 | 1-1/8" UNC - R | 175 | 162 | 70 |
| TLEBJD-L1181901 | 1 | 20 | 44 | 1-1/8" UNC - L | 190 | 56 | 66 |
| TLEBJD-R271752 | 2 | 25.4 | 51 | M 27 X 3 R | 175 | 162 | 70 |
| TLEBJD-L271901 | 1 | 20 | 44 | M 27 X 3 L | 190 | 56 | 66 |
Swipe horizontally to view all specifications →
Technical specifications

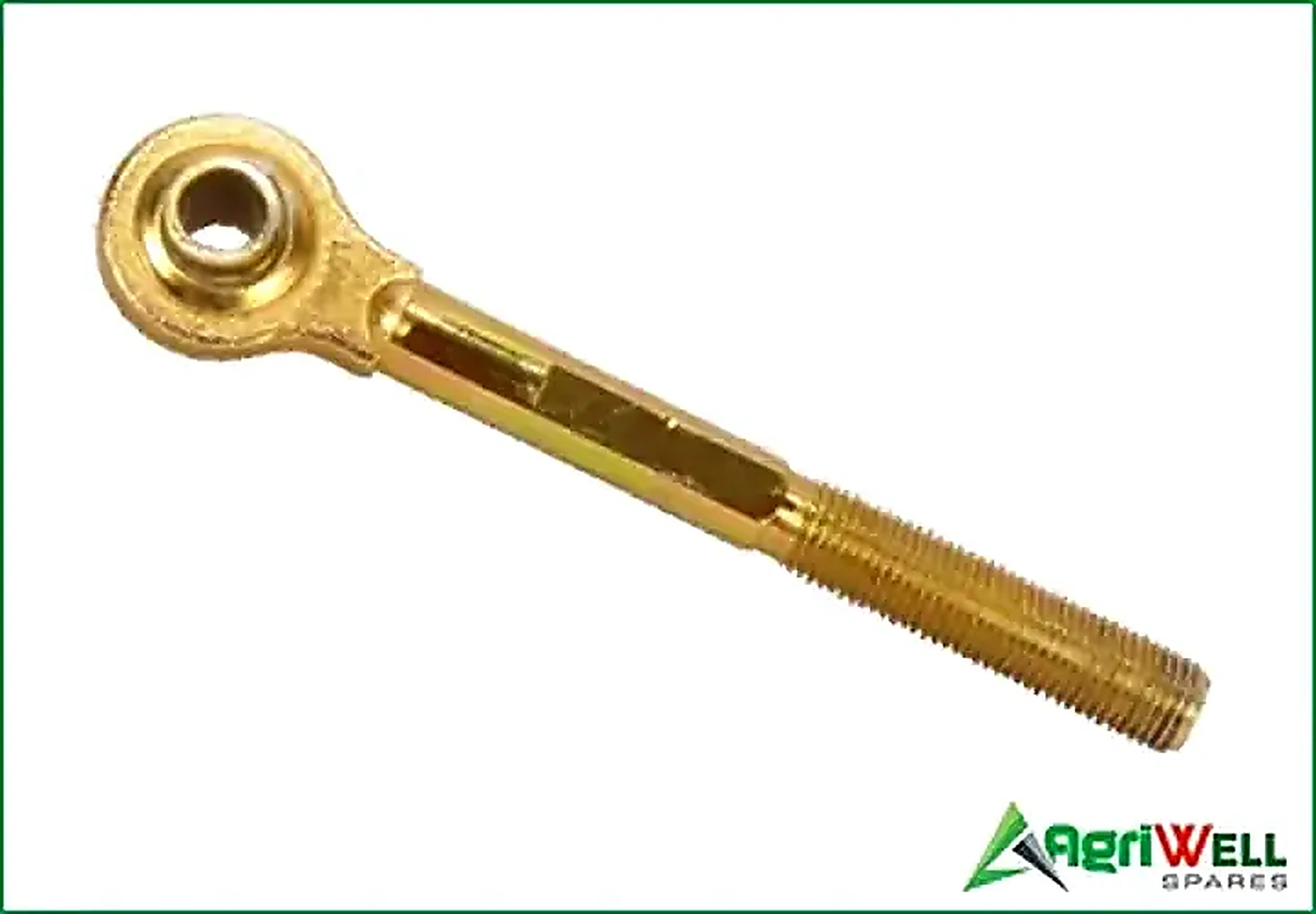

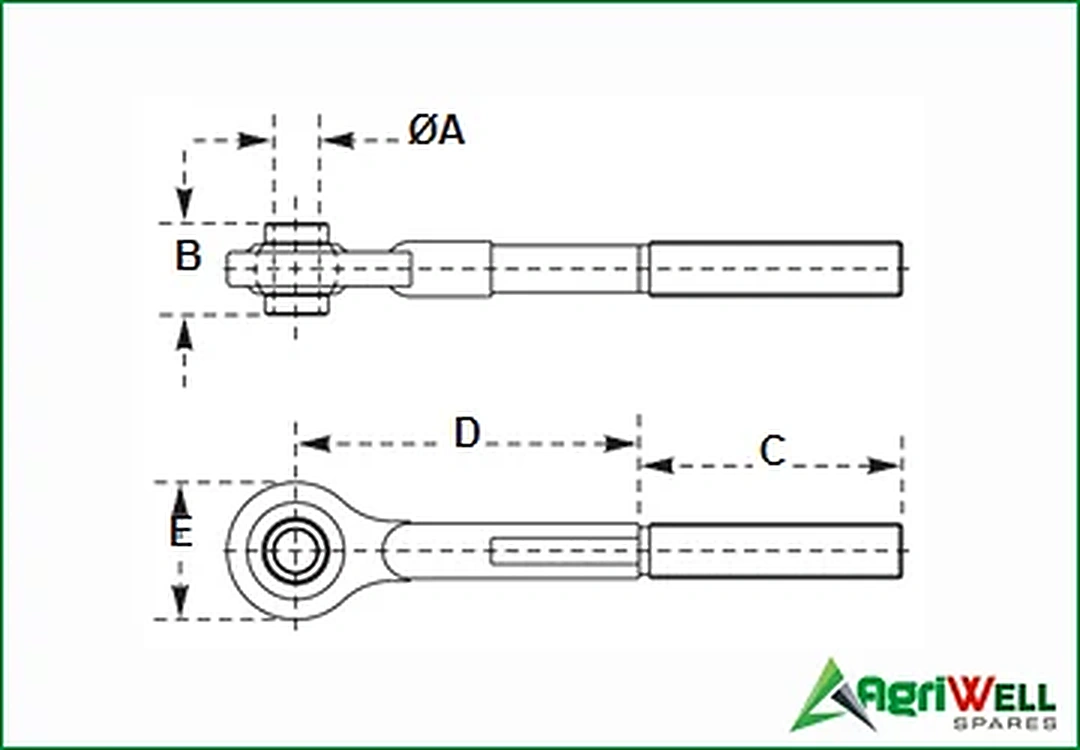

Product specifications 3
| Part Number | Cat. | Ball ID ØA (mm) | Ball Length B (mm) | Thread (inches) | Dim. C (mm) | Dim. D (mm) | Dim. E (mm) |
|---|---|---|---|---|---|---|---|
| TLEBFD-L1141281 | 1 | 19 | 44 | 1-1/4" UNF - L | 128 | 208 | 58 |
| TLEBFD-L1141282 | 2 | 25.4 | 51 | 1-1/4" UNF - L | 128 | 208 | 76 |
| TLEBFD-R1141682 | 2 | 25.4 | 51 | 1-1/4" UNF - R | 168 | 86 | 76 |
Swipe horizontally to view all specifications →
Technical specifications

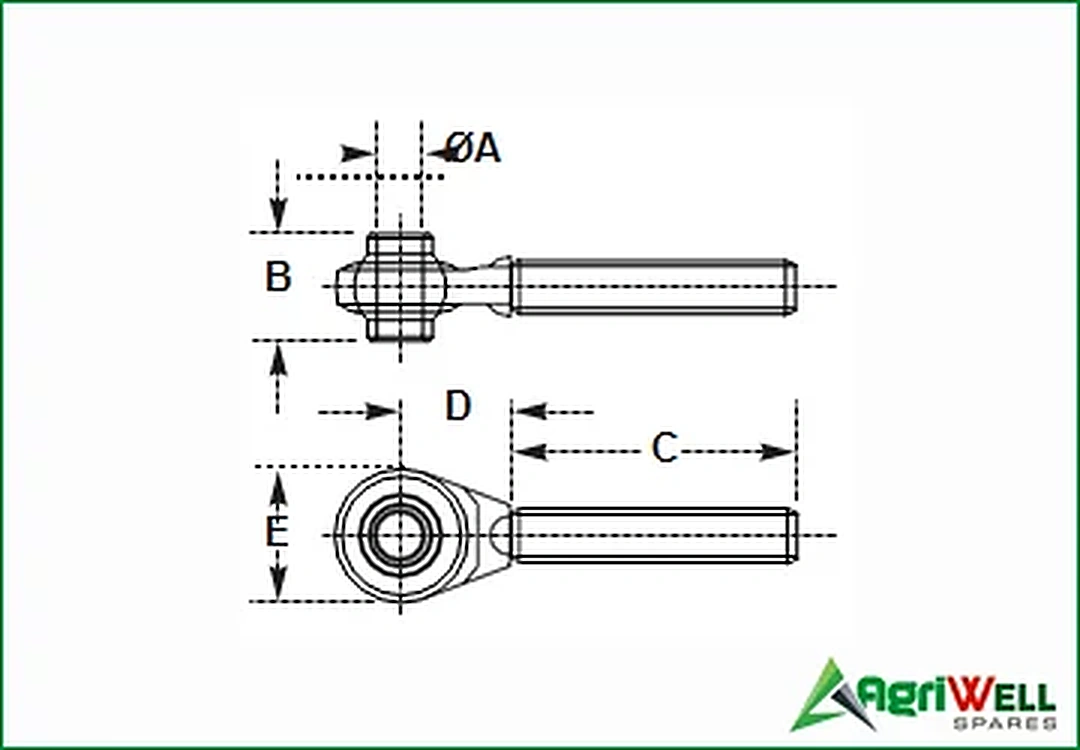

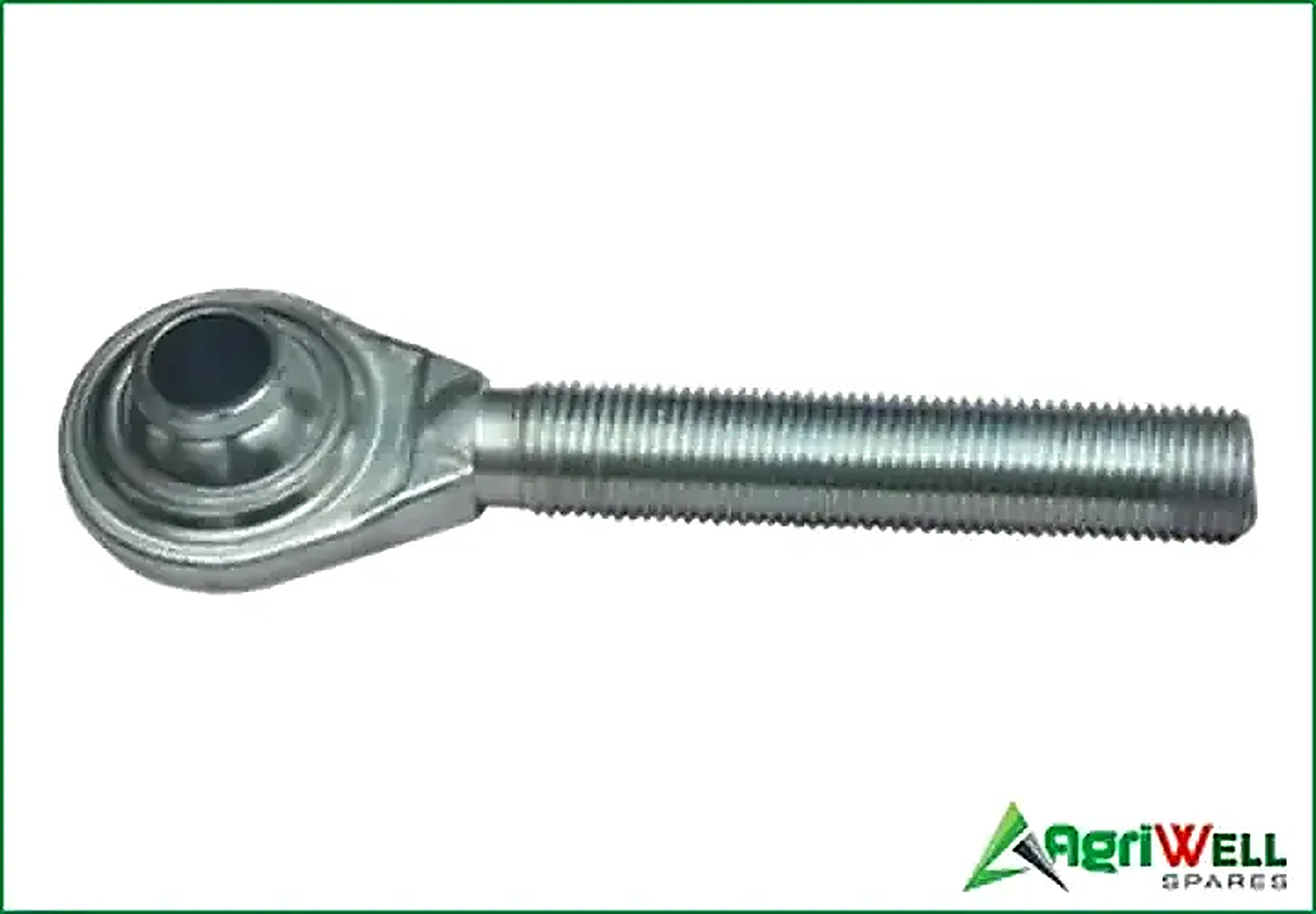

Product specifications 4
| Part Number | Cat. | Ball ID ØA (mm) | Ball Length B (mm) | Thread (mm) | Dim. C (mm) | Dim. D (mm) | Dim. E (mm) | Ball OD (mm.) | Ref. Number |
|---|---|---|---|---|---|---|---|---|---|
| TLEB-L221251 | 1 | 19 | 44 | 22 X 2.5 L | 125 | 45 | 52 | 38 | 03412 |
| TLEB-R241151 | 1 | 19 | 44 | 24 X 2.5 R | 115 | 50 | 62 | 38 | 03415 |
| TLEB-L241151 | 1 | 19 | 44 | 24 X 2.5 L | 115 | 50 | 62 | 38 | 03416 |
| TLEB-R24127 | - | 22.1 | 35 | 24 X 3 R | 127 | 45 | 62 | 44 | 18753 |
| TLEB-R241551 | 1 | 19.2 | 44 | 24 X 3 R | 155 | 50 | 62 | 38 | 18756 |
| TLEB-L241551 | 1 | 19.2 | 44 | 24 X 3 L | 155 | 50 | 62 | 38 | 18757 |
| TLEB-2416512 | 1 , 2 | 19.2 , 25.4 | 45 | 24 X 3 R | 165 | 58 | 80 | 54 | 18754 |
| TLEB-L2416512 | 1 , 2 | 19.2 , 25.4 | 45 | 24 X 3 L | 165 | 58 | 80 | 54 | 18755 |
| TLEB-R27180 | - | 28.2 | 45 | 27 X 3 R | 180 | 62 | 80 | 58 | 18758 |
| TLEB-R271551 | 1 | 19 | 44 | 27 X 3 R | 155 | 50 | 62 | 38 | 03419 |
| TLEB-L271551 | 1 | 19 | 44 | 27 X 3 L | 155 | 50 | 62 | 38 | 03420 |
| TLEB-R270902 | 2 | 25.4 | 51 | 27 X 3 R | 90 | 55 | 75 | 50 | 35699 |
| TLEB-L270902 | 2 | 25.4 | 51 | 27 X 3 L | 90 | 55 | 75 | 50 | 35700 |
| TLEB-R271702 | 2 | 25.4 | 51 | 27 X 3 R | 170 | 55 | 75 | 50 | 03423 |
| TLEB-L271702 | 2 | 25.4 | 51 | 27 X 3 L | 170 | 55 | 75 | 50 | 03424 |
| TLEB-R272202 | 2 | 25.4 | 51 | 27 X 3 R | 220 | 45 | 70 | 50 | 18765 |
| TLEB-L272202 | 2 | 25.4 | 51 | 27 X 3 L | 220 | 45 | 70 | 50 | 18766 |
| TLEB-R301751 | 1 | 19.2 | 44 | 30 X 3 R | 175 | 50 | 62 | 38 | 18759 |
| TLEB-L301751 | 1 | 19.2 | 44 | 30 X 3 L | 175 | 50 | 62 | 38 | 18760 |
| TLEB-R301652 | 2 | 25.4 | 51 | 30 X 3 R | 165 | 55 | 75 | 50 | 03427 |
| TLEB-L301652 | 2 | 25.4 | 51 | 30 X 3 L | 165 | 55 | 75 | 50 | 03428 |
| TLEB-R302002 | 2 | 25.4 | 51 | 30 X 3 R | 200 | 50 | 75 | 50 | 18767 |
| TLEB-L302002 | 2 | 25.4 | 51 | 30 X 3 L | 200 | 50 | 75 | 50 | 18768 |
| TLEB-R30175 | - | 20.2 | 44 | 30 X 3.5 R | 175 | 50 | 62 | 42 | 18763 |
| TLEB-L30175 | - | 20.2 | 44 | 30 X 3.5 L | 175 | 50 | 62 | 42 | 18764 |
| TLEB-R30165 | - | 22.1 | 51 | 30 X 3.5 R | 165 | 55 | 75 | 50 | 18771 |
| TLEB-L30165 | - | 22.1 | 51 | 30 X 3.5 L | 165 | 55 | 75 | 50 | 18772 |
| TLEB-R301751 | 1 | 19.2 | 44 | 30 X 3.5 R | 175 | 50 | 62 | 38 | 18761 |
| TLEB-L301751 | 1 | 19.2 | 44 | 30 X 3.5 L | 175 | 50 | 62 | 38 | 18762 |
| TLEB-R301652 | 2 | 25.4 | 51 | 30 X 3.5 R | 165 | 55 | 75 | 50 | 18769 |
| TLEB-L301652 | 2 | 25.4 | 51 | 30 X 3.5 L | 165 | 55 | 75 | 50 | 18770 |
| TLEB-R361652 | 2 | 25.4 | 51 | 36 X 3 R | 165 | 55 | 80 | 54 | 03437 |
| TLEB-L361652 | 2 | 25.4 | 51 | 36 X 3 L | 165 | 55 | 80 | 54 | 03438 |
| TLEB-R362002 | 2 | 25.4 | 51 | 36 X 3 R | 200 | 70 | 96 | 62 | 03489 |
| TLEB-L362002 | 2 | 25.4 | 51 | 36 X 3 L | 200 | 70 | 96 | 62 | 03488 |
| TLEB-R401752 | 2 | 25.4 | 51 | 40 X 3 R | 175 | 60 | 80 | 50 | 03439 |
| TLEB-L401752 | 2 | 25.4 | 51 | 40 X 3 L | 175 | 60 | 80 | 50 | 03440 |
| TLEB-R362003 | 3 | 32 | 51 | 36 X 3 R | 200 | 70 | 96 | 62 | 02698 |
| TLEB-L362003 | 3 | 32 | 51 | 36 X 3 L | 200 | 70 | 96 | 62 | 02699 |
| TLEB-R402003 | 3 | 32 | 51 | 40 X 3 R | 200 | 70 | 96 | 62 | 09324 |
| TLEB-L402003 | 3 | 32 | 51 | 40 X 3 L | 200 | 70 | 96 | 62 | 09325 |
Swipe horizontally to view all specifications →
